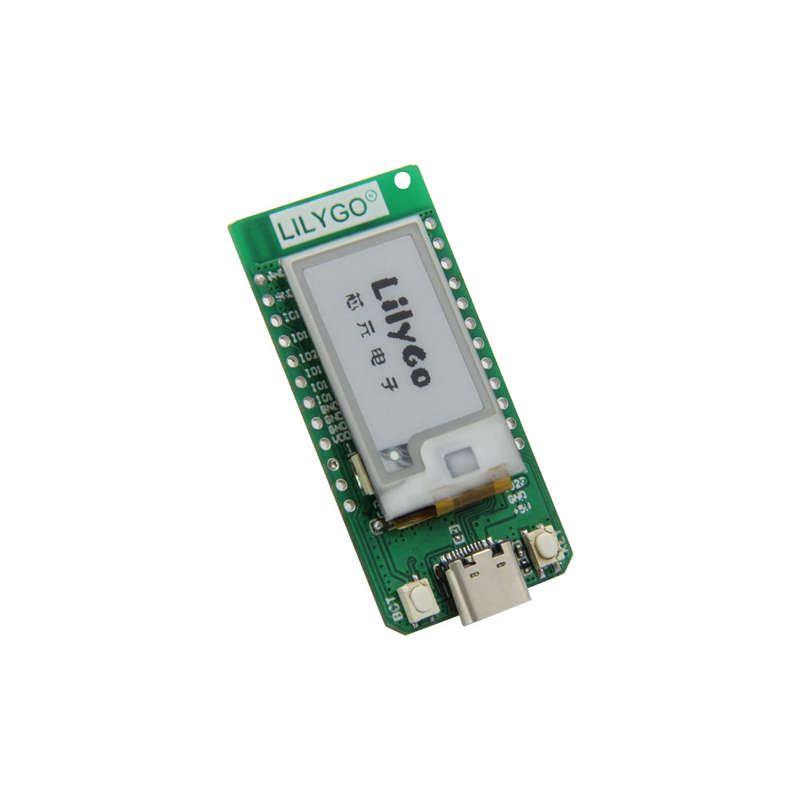

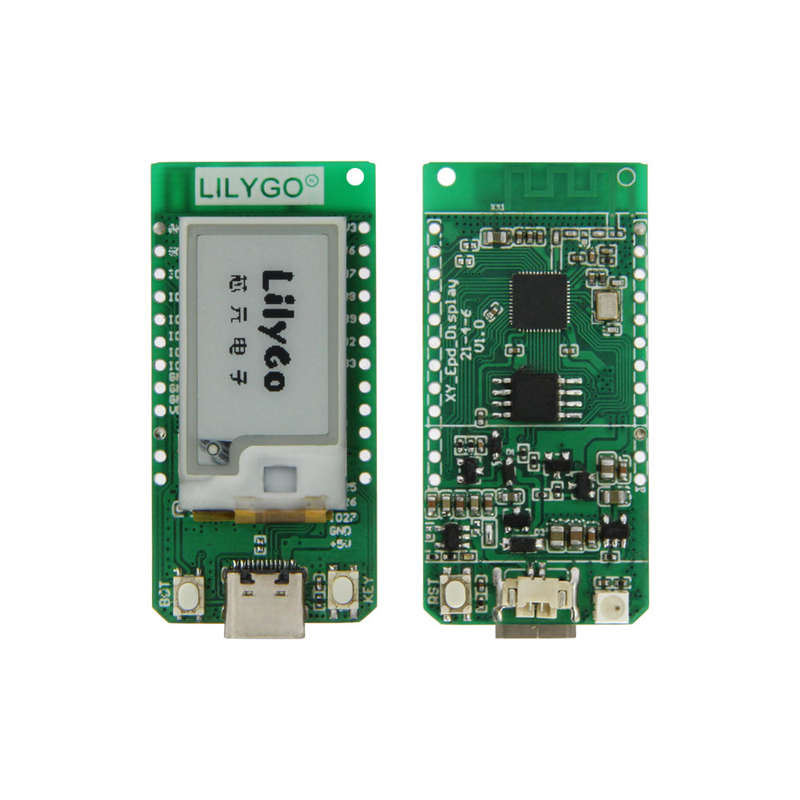

T-display e-paper:

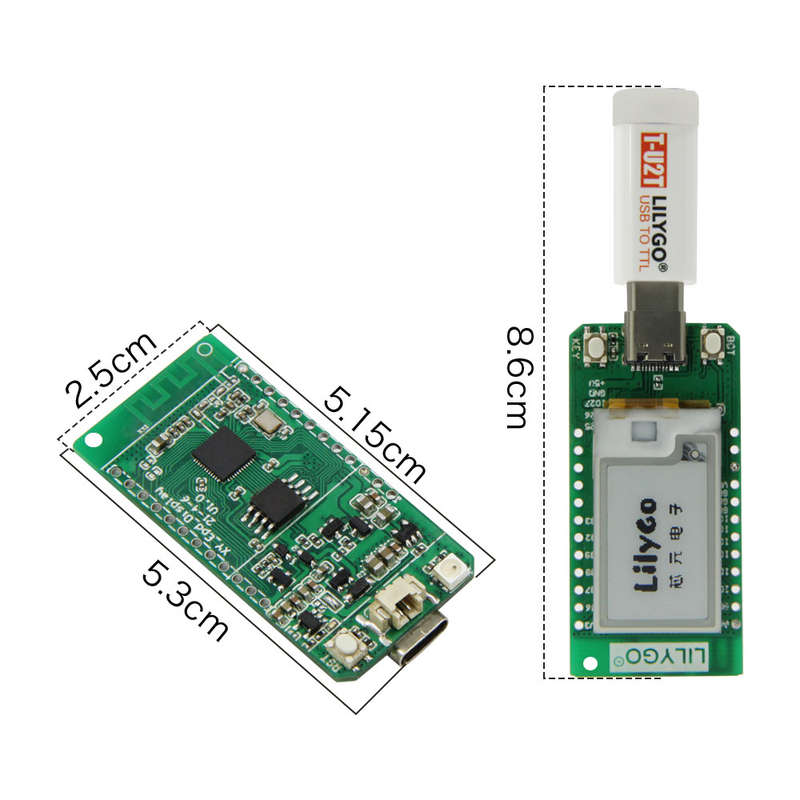

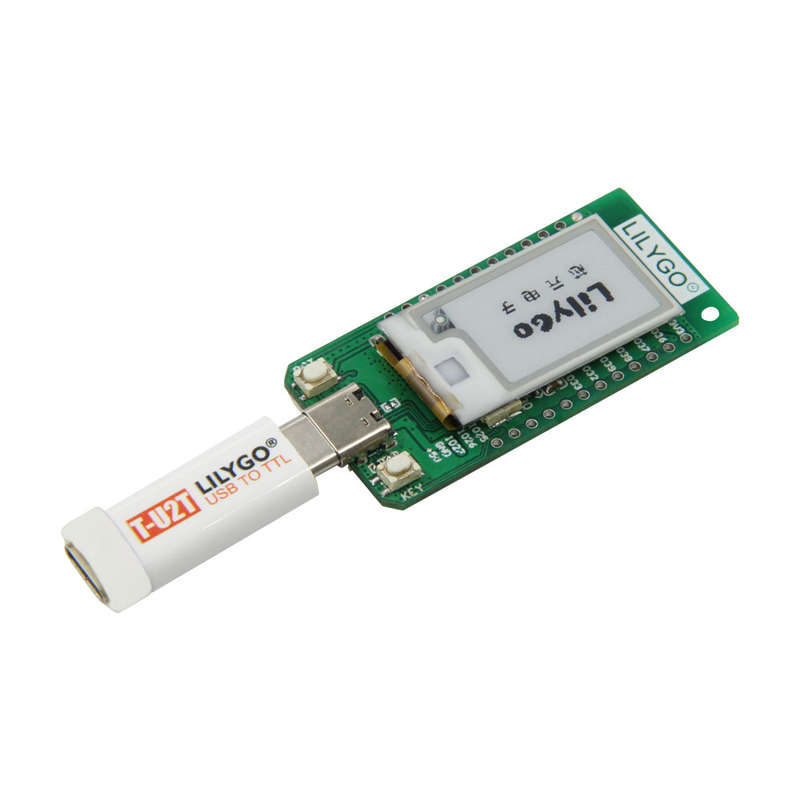

It is the brother version from the T-display TFT version based on the size structure of the TFT version Change the 1.14 inch TFT display to 1.02 inch e-paper display Adding PCB positioning holes, 3535 RGB and IPEX antenna sockets, PCB color LILYGO selected bright green PCB with black and white ink screen for the first time, making the overall vision more comfortable. This is also a product compatible with T-U2T automatic downloader We will be compatible with the T-U2T automatic downloader on the new version of the product, that is, when you have a T-U2T automatic downloader, it will support the motherboard that requires the USB to TTL function.

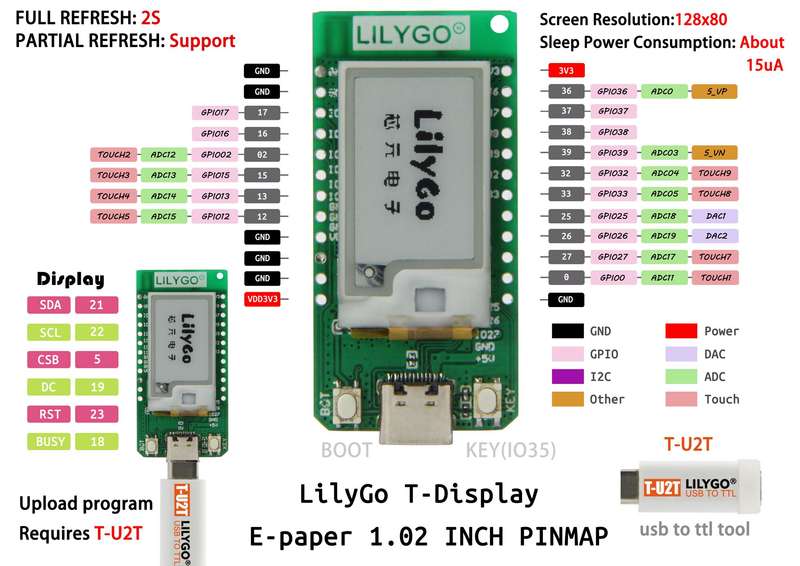

T-display E-paper parameters:
-1.02 inch E-paper resolution: 128X80 -ESP32-D0WDQ6-V3 -4MB FLASH -TP4054 battery charge and discharge chip -Custom button X2 -RST button -Type-c USB for T-U2T -IPX antenna base -3535 RGB -Jst 2pin 1.25mm battery connector -Low power consumption design (sleep power consumption is about 15uA)
Application scenarios:
-Shelf label -Badge aDIY -STEM -IOT terminal equipment
Githublink:

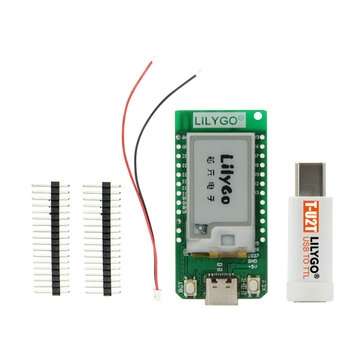

Package includes: (optional)

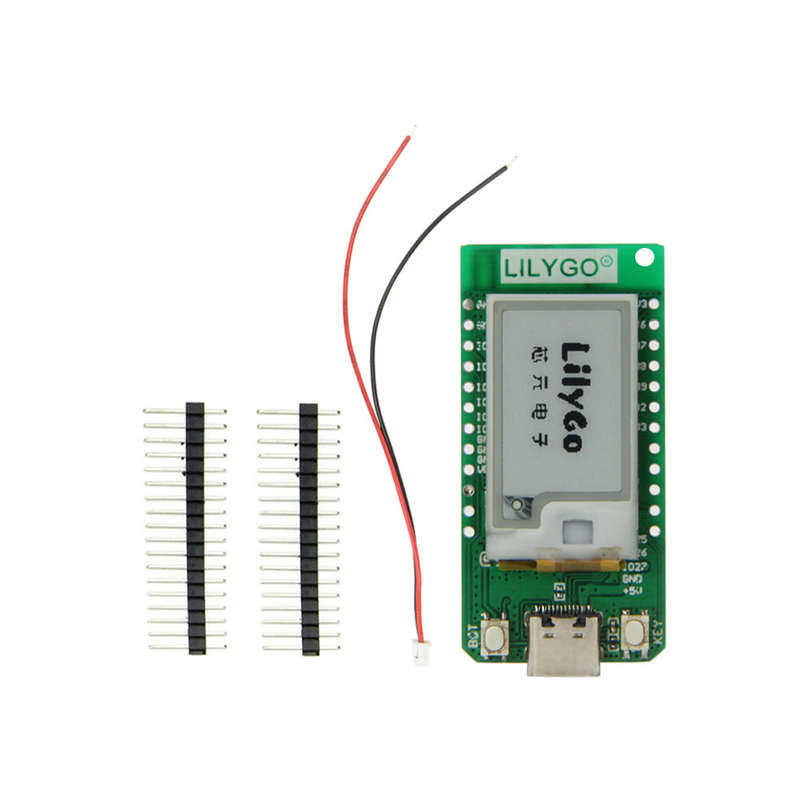

Type 1.02 T-Display: 1 x 1.02 T-Display board 2 x Pins 1 x Cable

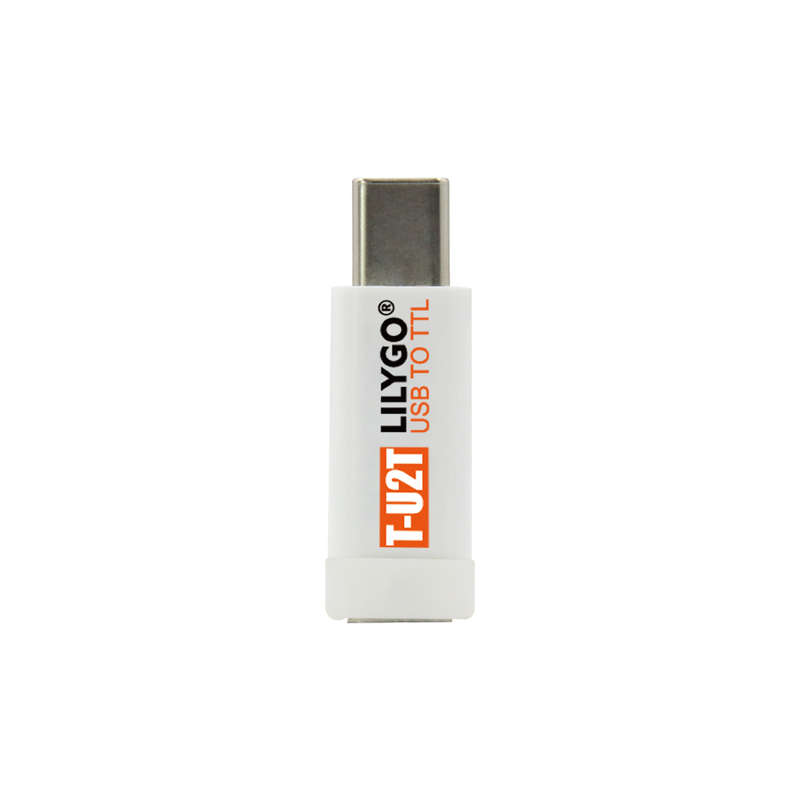

Type T-U2T USB To TTL: 1 xT-U2T USB To TTL Automatic Downloader

Type 1.02 T-Display+T-U2T USB To TTL: 1 xT-U2T USB To TTL Automatic Downloader 1 x 1.02 T-Display board 2 x Pins 1 x Cable

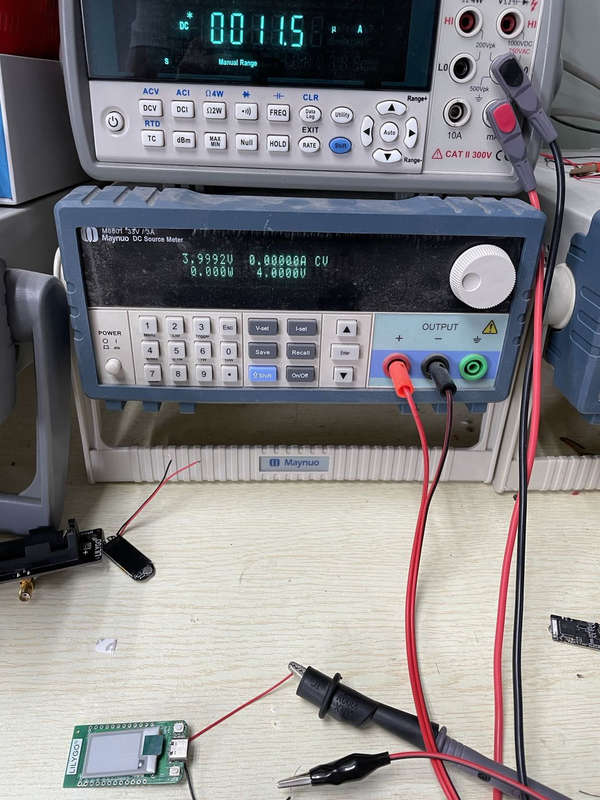

Power consumption:
