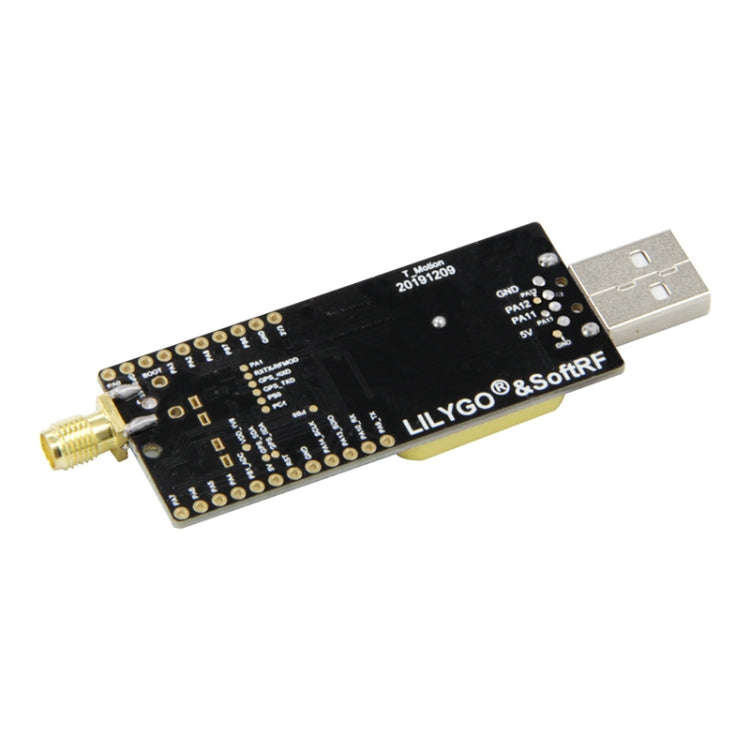

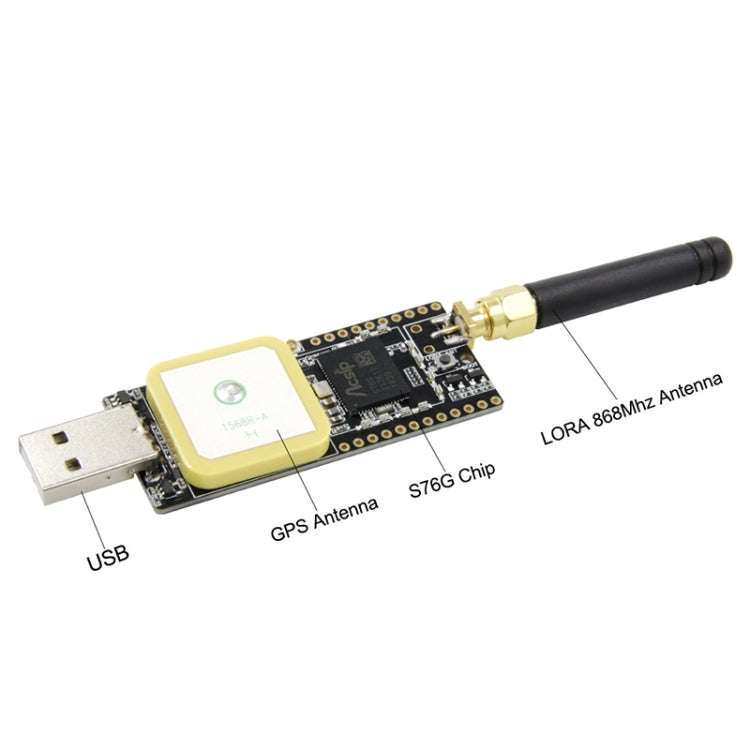

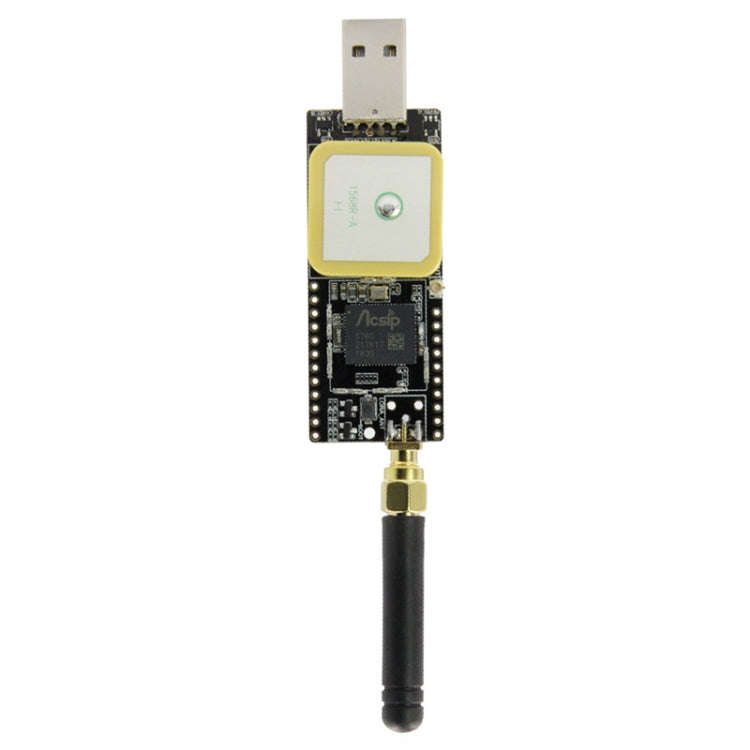

LILYGO T-Motion V1.0 T-Motion 923 Smart Development Board S76G LORA STM32 GNSS Wireless Module
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
DIY0143
Bob Shop ID
602483050
Features:
1. Main chip: S76G Lora Chip
2. Button: BOAT
3. Auto clock: 26 MHz active crystal
4. Antenna Model: LORA 868 MHZ GPS Antenna
5. Temperature: -45-80 Degrees C
6. Size: 78.12 x 25.40 x 62.67mm
Microcontroller:
1. STM32L073Z
2. High-performance ARM Cortex--M + 32-bit RISC core, working frequency 32MH
3. 192 kilobytes of flash
4. USB2.0 Full Speed a??a??Device / Host
5. 20 kbytes sram
6. Serial Wire Debug (SWD) and JTAG
LORA chip:
1. Semtech SX1276
2. LoRa modem
3. 20dBm constant RF output vs. V power supply
4. Programmable bit rate up to 37500bps
5. High sensitivity: as low as -137dBm
6. Leader detection payload up to 128 bytes, automatic RF sensing with using ultra-high-speed AFC, and CAD anti-blocking ability
GNSS chip:
1. CXD5603GF
2. GPS / GLONASS receiver
3. Ultra-low power
4. Supports SBAS / QZSS
1. Main chip: S76G Lora Chip
2. Button: BOAT
3. Auto clock: 26 MHz active crystal
4. Antenna Model: LORA 868 MHZ GPS Antenna
5. Temperature: -45-80 Degrees C
6. Size: 78.12 x 25.40 x 62.67mm
Microcontroller:
1. STM32L073Z
2. High-performance ARM Cortex--M + 32-bit RISC core, working frequency 32MH
3. 192 kilobytes of flash
4. USB2.0 Full Speed a??a??Device / Host
5. 20 kbytes sram
6. Serial Wire Debug (SWD) and JTAG
LORA chip:
1. Semtech SX1276
2. LoRa modem
3. 20dBm constant RF output vs. V power supply
4. Programmable bit rate up to 37500bps
5. High sensitivity: as low as -137dBm
6. Leader detection payload up to 128 bytes, automatic RF sensing with using ultra-high-speed AFC, and CAD anti-blocking ability
GNSS chip:
1. CXD5603GF
2. GPS / GLONASS receiver
3. Ultra-low power
4. Supports SBAS / QZSS
