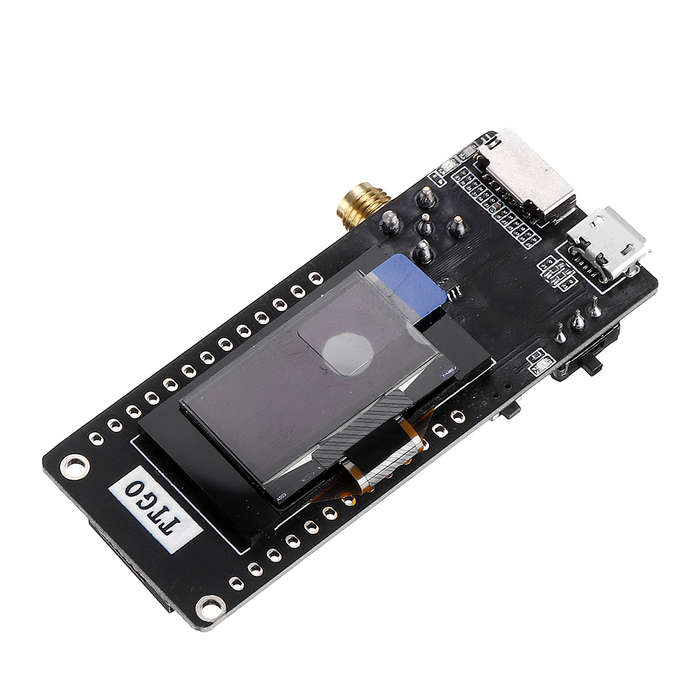

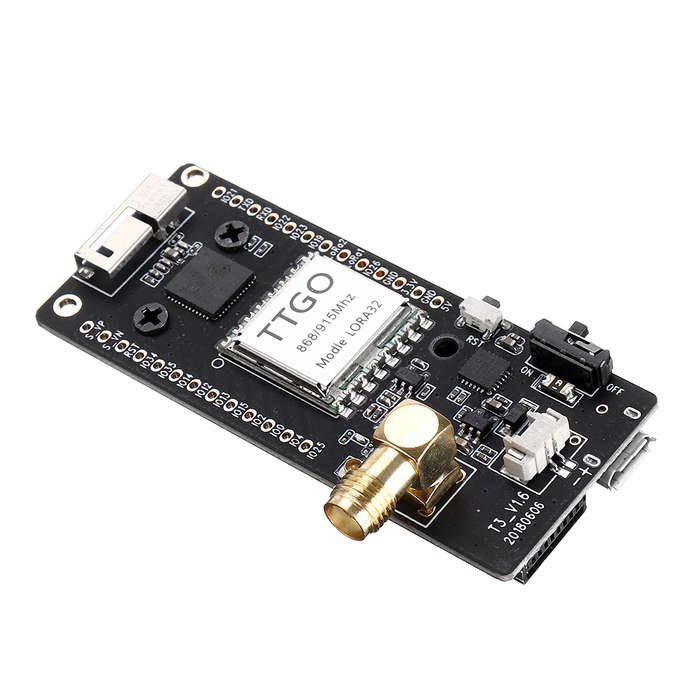

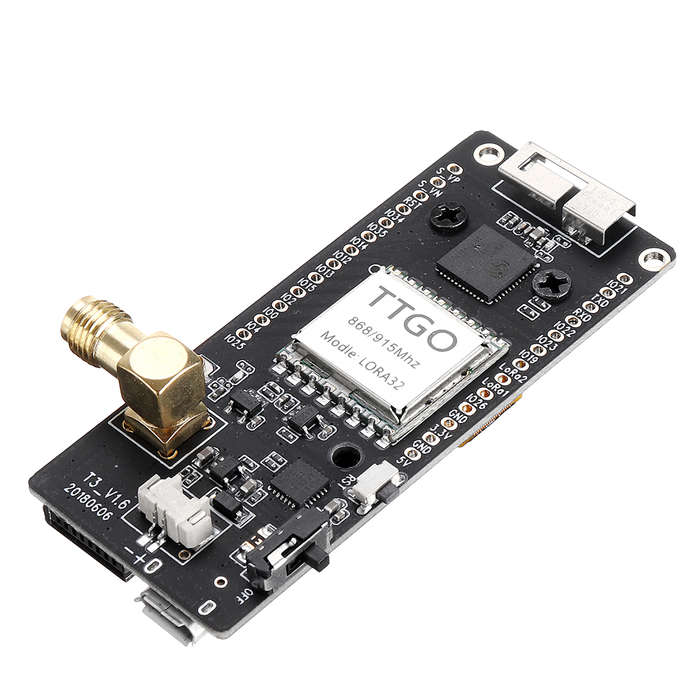

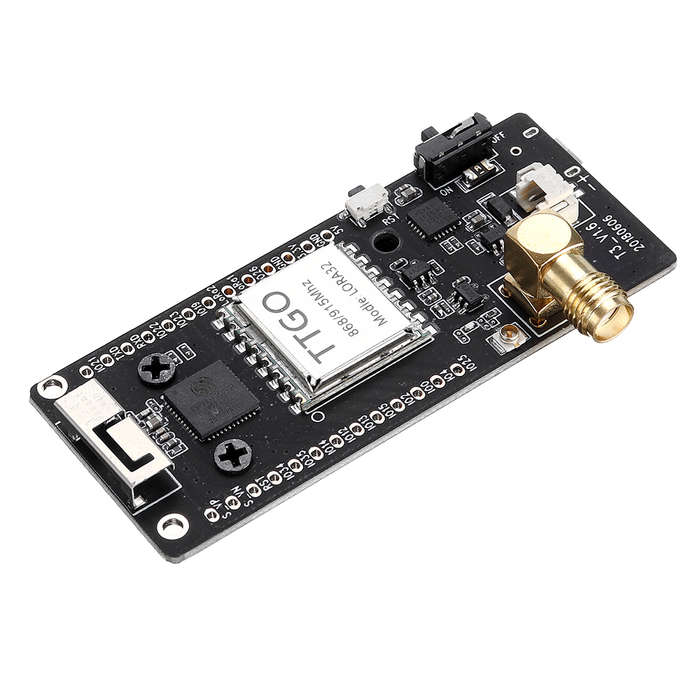

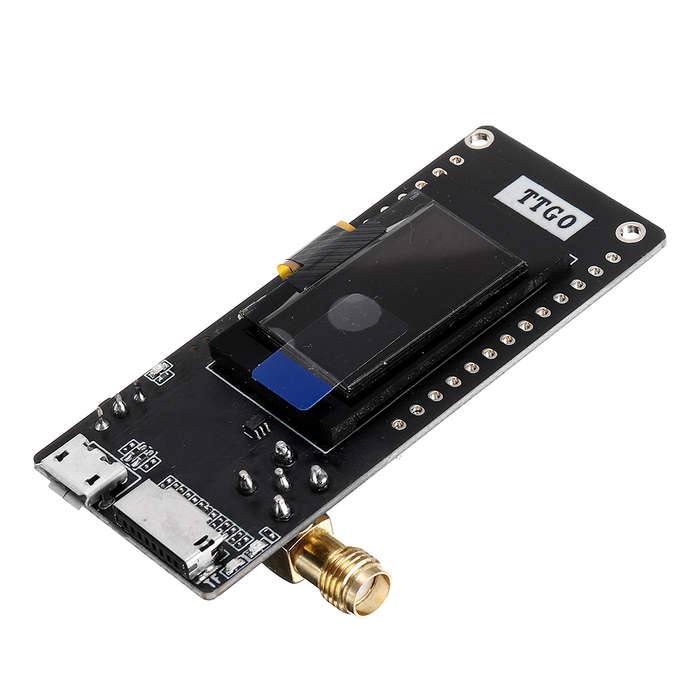

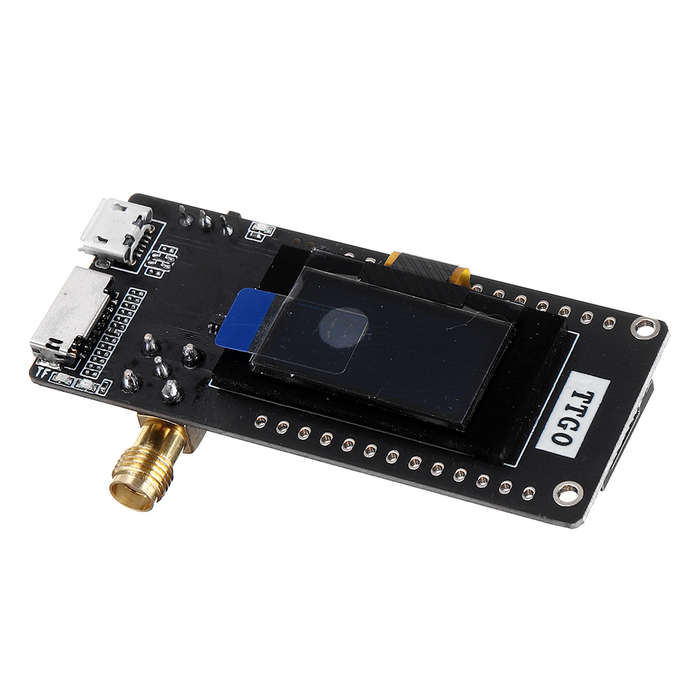

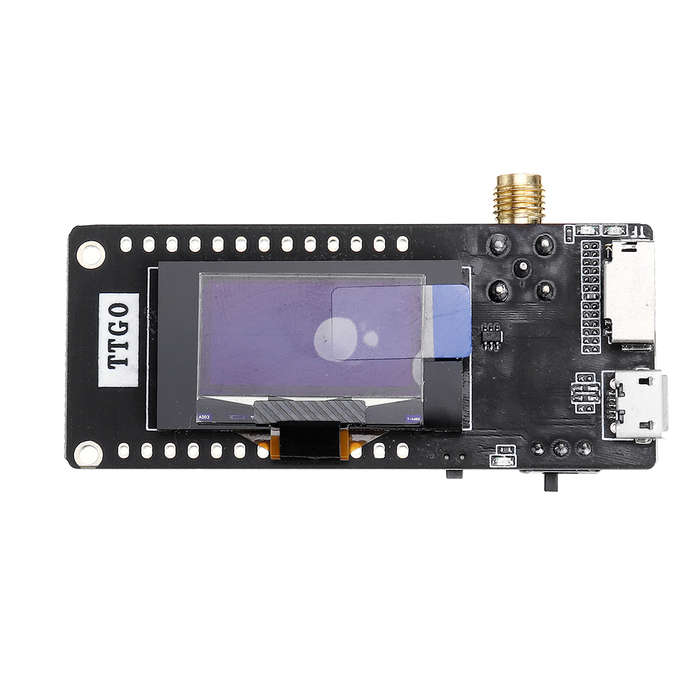

LILYGO TTGO LoRa32 V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card b... (FREQUENCY: 915MHZ)

New

20 available

R727.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4023

92.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654102283

SELECTED OPTION:
FREQUENCY: 915MHZ

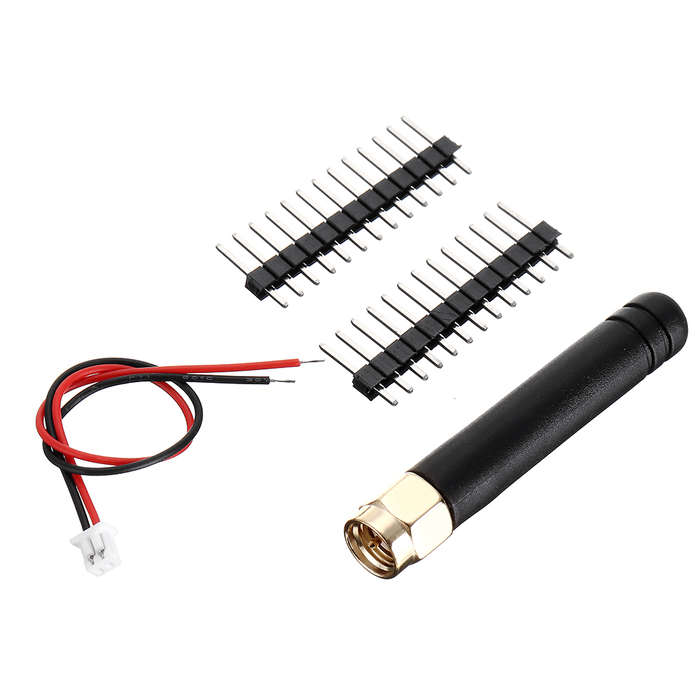

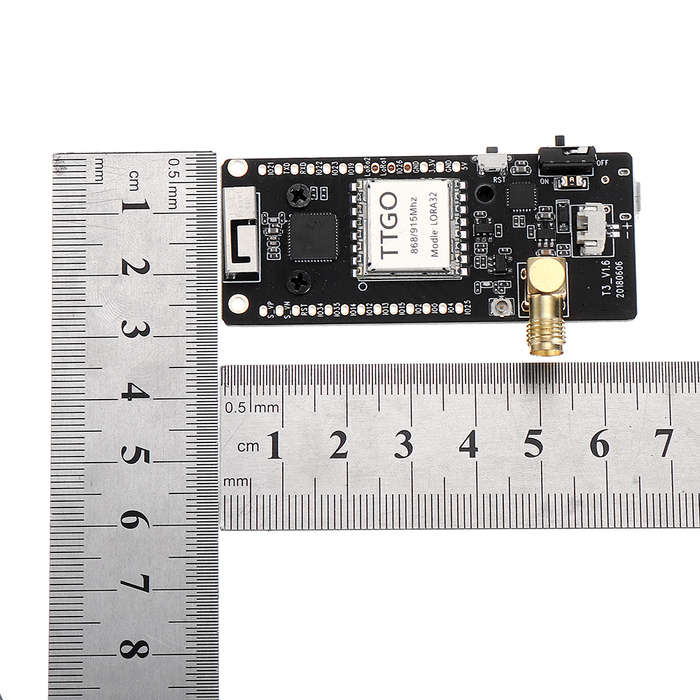

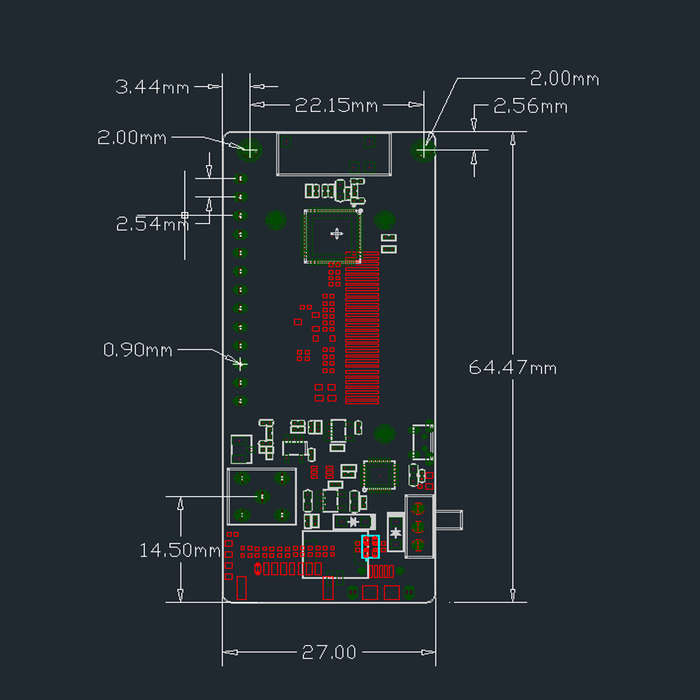

Specifications: Size: app.6.4cmx2.8cm / 2.52inx0.71in Working voltage: 1.8~3.7v Acceptable current: 10~14mA Transmit current: 120mA@+20dBm 90mA@+17dBm 29mA@+13dBm Operating frequency: 868M/915MHz/433MHz Transmit power: +20dBm Receive sensitivity : -139dBm @ LoRa&62.5Khz&SF = 12&146bps -136dBm @ LoRa&125Khz&SF = 12&293bps -118dBm @ LoRa&125Khz&SF = 6&9380bps -123dBm@FSK&5Khz&1.2Kbps Frequency error:+/-15KHz FIFO space: 64Byte Data rate: 1.2K~300Kbps@FSK 0.018K~37.5Kbps@LoRa Modulation Mode: FSK,GFSK,MSK,GMSK,LoRa TM,OOK Interface form: SPI Sleep current: 0.2uA@SLEEP 1.5uA@IDLE Operatingatemperature: -40ﾣ- +85ﾣ Digital RSSI function Automatic frequency correction Automatic gain control RF wake-up function Low voltage detection and temperature sensor Fast wake-up and frequency hopping Highly configurable data packet handler SMA Antenna Package includes: 1 x TTGO LoRa32 V2.1 868/915 Module 2 x Pin 1 x Antenna 1 x Power Cable
