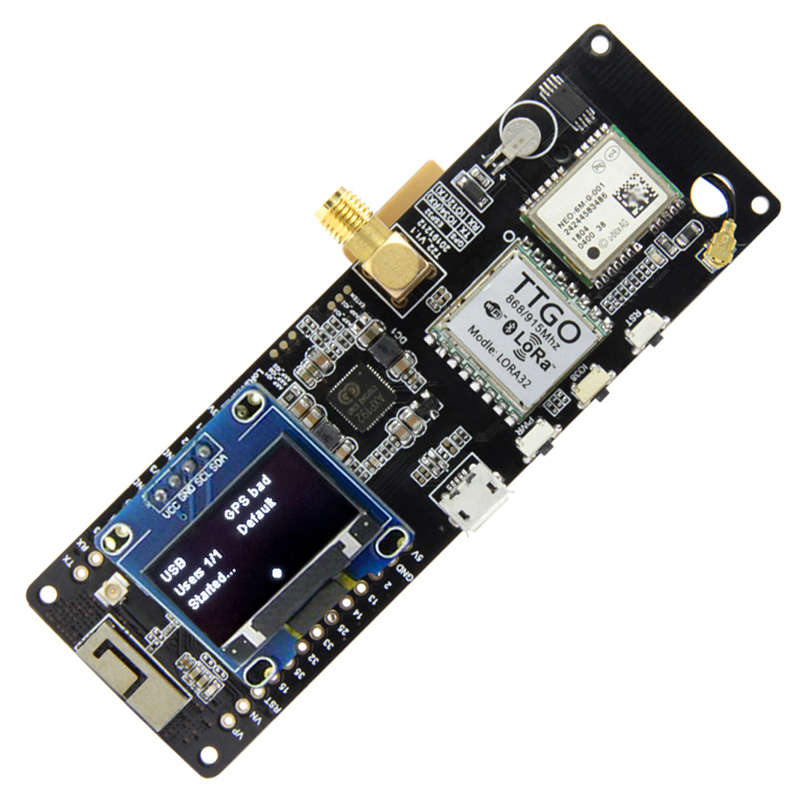

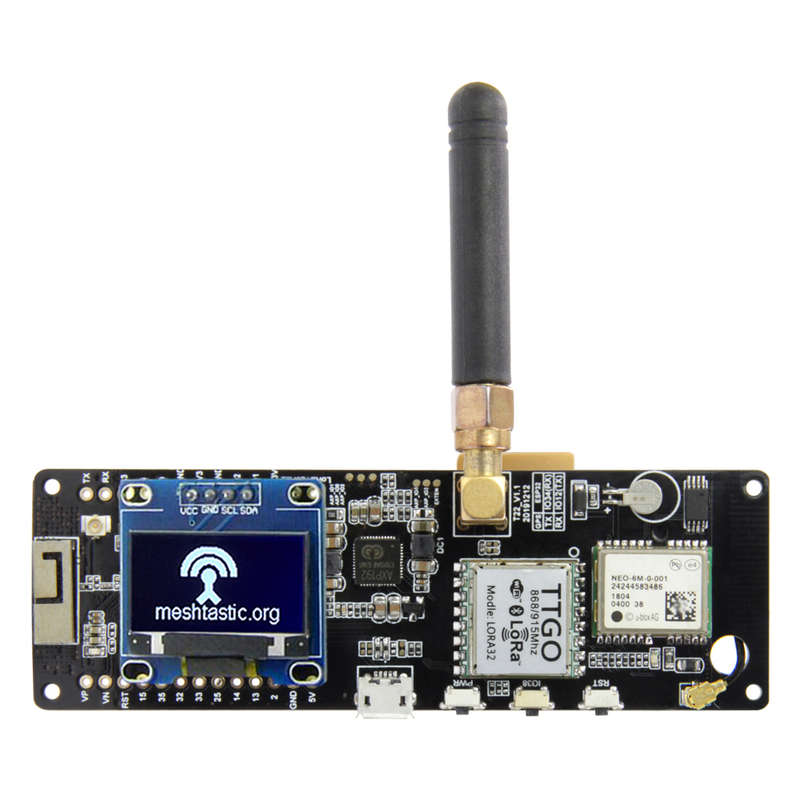

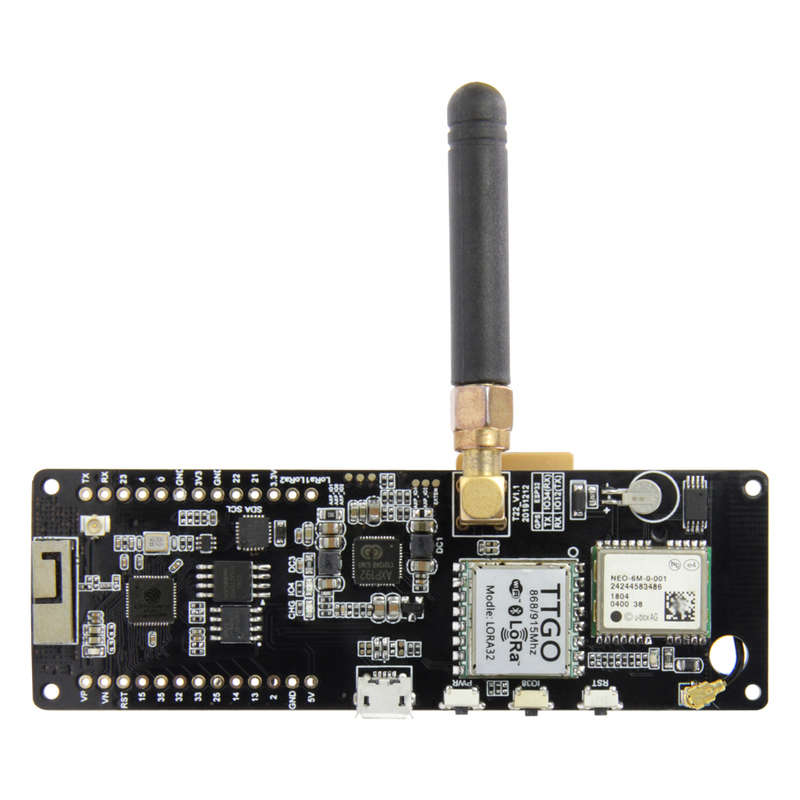

LILYGO TTGO Meshtastic T-Beam V1.1 ESP32 433/915/923Mhz WiFi Bluetooth ESP3... (FREQUENCY: 923MHZ)

SELECTED OPTION:
FREQUENCY: 923MHZ

aMore information:

Feature:

Digital RSSI function

Automatic frequency correction

Automatic gain control

Low voltage detection

Fast wake-up and frequency hopping

Highly configurable data packet handler

GPS

GPS modules NEO-6M, 3V-5V power supply Universal

Destined module with ceramic antenna, signal super

Save the configuration parameter data EEPROM Down

With data backup battery

There are LED signal indicator

Default Baud Rate: 9600

Power

Power Supply Input USB 5V/1A

Charging current 500mA

Battery Input 3.7-4.2V

Charge IC AXP192

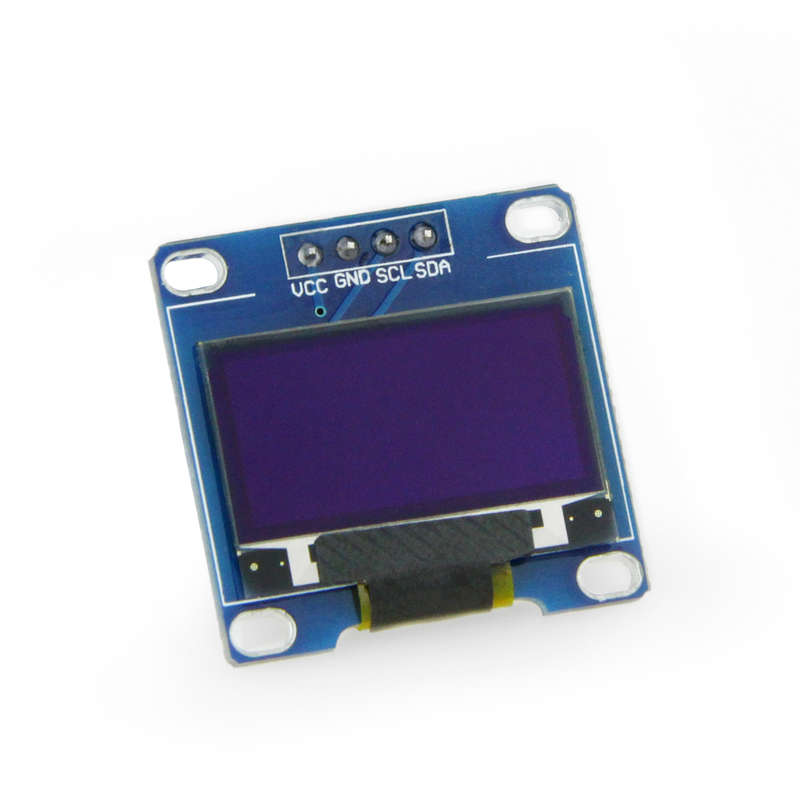

OLED Description:

1. Size: 0.96 inch

2. High resolution: 128 * 64

3. Color: White

4. Viewing angle: > 160 ﾣ

5. Driver IC: SSD1306

6. Working temperature: -30 celcius ~ 80 celcius

7. Module volume (generous): 27.0mm x 27.0mm x 4.1mm

8. Supports many control chip: Fully compatible with Arduino, 51 series, MSP430 series,STM32/2 chip, etc. (a lot of routines for reference)

9. Wide voltage support: without any modification, directly supports 3.3V ~ 5V DC

10. Ultra-low power consumption: Normal operation Is 0.04W

11. IO port occupies minimal display: The IIC communication, as long as the two IO ports

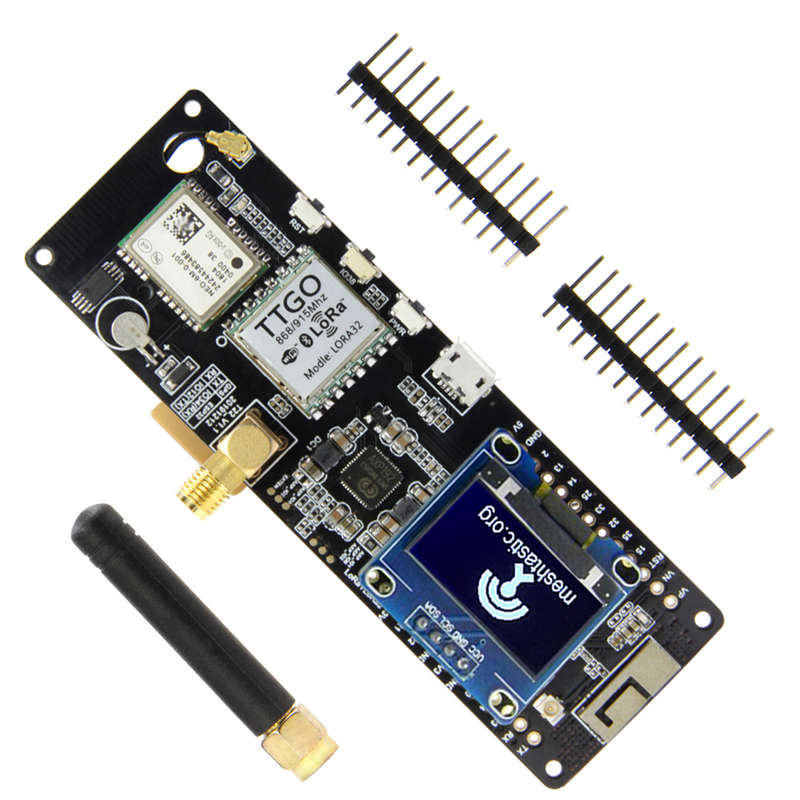

Package includes:

1 X TTGO T-Beam

1 X 433/915/923MHz Antenna

1 X 0.96 inch 128X64 OLED

2 X Pin
