This item has closed with no items sold
View other items offered by szulou3615

Similar products

STM32F103C8T6 Small System Development Board Microcontroller STM32 ARM Core Board
szulou
R421.00
9% OFF
ESP32-S3 Microcontroller Development Board
PiShop SA
R209.25 R230.18
LILYGO TTGO LORA32 V1.3 868Mhz ESP32 0.96 Inch OLED Wireless WiFi bluetooth Module with Antenna
szulou
R632.00
3pcs STM32F030C8T6 Core Board System Board STM32 F0 ARM Development Board
szulou
R504.00
LILYGO TTGO T-Display-GD32 RISC-V 32-bit Core Minimal Development Board 1.14 IPS LILYGO TTGO T-Display-GD32 RISC-V 32-bit Core Minimal Development Board 1.14 IPS LILYGO TTGO T-Display-GD32 RISC-V 32-bit Core Minimal Development Board 1.14 IPS LILYGO TTGO T-Display-GD32 RISC-V 32-bit Core Minimal Development Board 1.14 IPS LILYGO TTGO T-Display-GD32 RISC-V 32-bit Core Minimal Development Board 1.14 IPS LILYGO TTGO T-Display-GD32 RISC-V 32-bit Core Minimal Development Board 1.14 IPS
LILYGO TTGO T-Display-GD32 RISC-V 32-bit Core Minimal Development Board 1.14 IPS LILYGO TTGO T-Display-GD32 RISC-V 32-bit Core Minimal Development Board 1.14 IPS LILYGO TTGO T-Display-GD32 RISC-V 32-bit Core Minimal Development Board 1.14 IPS LILYGO TTGO T-Display-GD32 RISC-V 32-bit Core Minimal Development Board 1.14 IPS
LILYGO TTGO T-Display-GD32 RISC-V 32-bit Core Minimal Development Board 1.14 IPS
+2
Closed

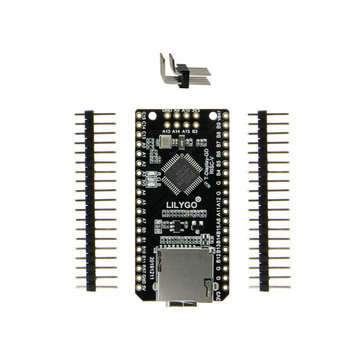

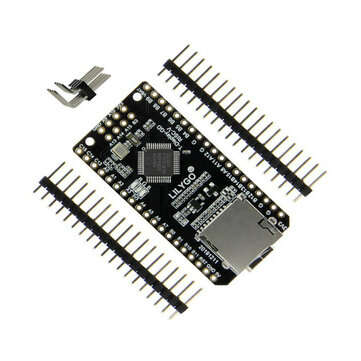

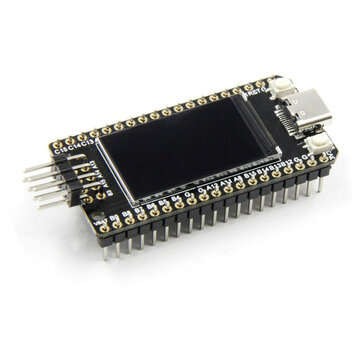

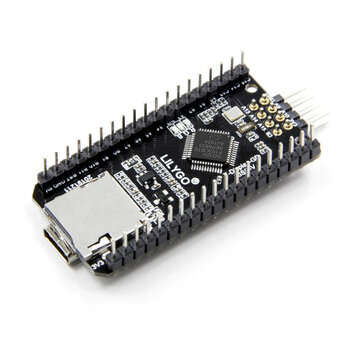

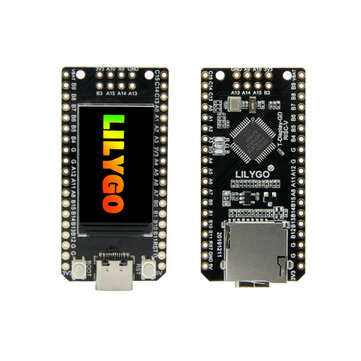

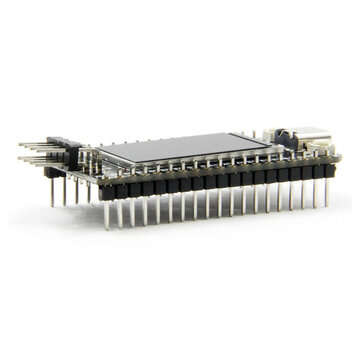

LILYGO TTGO T-Display-GD32 RISC-V 32-bit Core Minimal Development Board 1.14 IPS

12 were available / new
R462.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
szulou3615
92.94 % Positive ratings
Buyer protection
How you're covered
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
606947979
Feature:

Hardware Specifications
Chipset GD32VF103CBT6
FLASH 128KB
SRAM 32 KB
On-board clock 108MHz crystal oscillator
Working voltage 2.7V-3.6V
Power 1/3 Cortex-M3
Peripheral
Button BOOT,?RESET
LCD ST7789, 1.14 IPS, 240x135
USBtoTTL CP2104
Modular interface TIMER, UART, SPI, I2C,?PWM,?ADC,?DAC, CAN,?USBOTG
Working temperature range ?-40?ﾣC~ +85?ﾣC
Weight 10g
Size 51.49 x 25.2 x 10mm
Periphera Button, RGB LED, SD slot, LCD
Power Supply Specifications
Power supply input USB 5V/1A
Charging current 500mA
Battery input 3.7-4.2V
USB TYPE-C
Peripheral functions a??Timer: Use 16-bit timer * 4
Basic 16-bit timer * 2
Advanced 16-bit timer * 1
a??USART * 3
a???I2C * 3
a???SPI * 3
a???CAN * 2
a???USBFS (OTG) * 1
a?|ADC (10 channel) * 2
a???DAC * 2?
IO Standard 2.54mm pin header interface, leading to all resources of the chip
Interface Lead out LCD, MICRO SD card, JAG and other interfaces

Package includes:

1 x?Minimal Development Board
