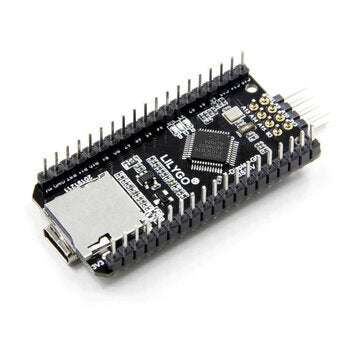

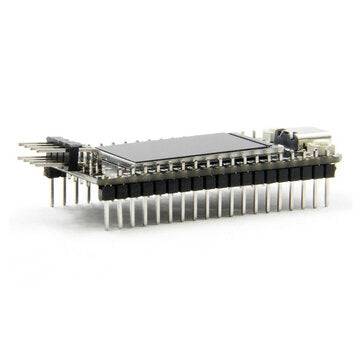

LILYGO TTGO T-Display-GD32 RISC-V 32-bit Core Minimal Development Board 1.14 IPS

New

20 were available

R462.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4509

91.76 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641127929

Feature:

Hardware Specifications
Chipset	GD32VF103CBT6
FLASH	128KB
SRAM	32 KB
On-board clock	108MHz crystal oscillator
Working voltage	2.7V-3.6V
Power	1/3 Cortex-M3
Peripheral
Button	BOOT,RESET
LCD	ST7789, 1.14 IPS, 240x135
USBtoTTL	CP2104
Modular interface	TIMER, UART, SPI, I2C,PWM,ADC,DAC, CAN,USBOTG
Working temperature range	-40ﾣC~ +85ﾣC
Weight	10g
Size	51.49 x 25.2 x 10mm
Periphera	Button, RGB LED, SD slot, LCD
Power Supply Specifications
Power supply input	USB 5V/1A
Charging current	500mA
Battery input	3.7-4.2V
USB	TYPE-C
Peripheral functions	aTimer: Use 16-bit timer * 4 Basic 16-bit timer * 2 Advanced 16-bit timer * 1 aUSART * 3 aI2C * 3 aSPI * 3 aCAN * 2 aUSBFS (OTG) * 1 a\|ADC (10 channel) * 2 aDAC * 2
IO	Standard 2.54mm pin header interface, leading to all resources of the chip
Interface	Lead out LCD, MICRO SD card, JAG and other interfaces
