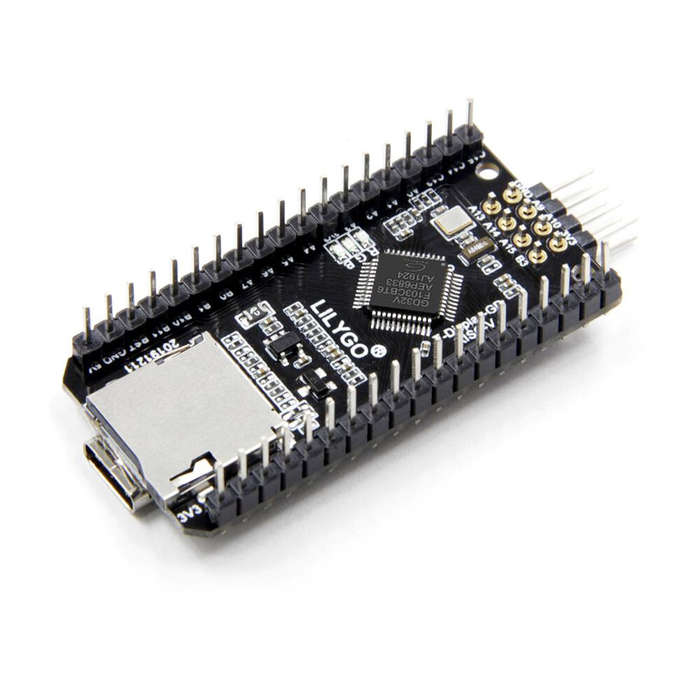

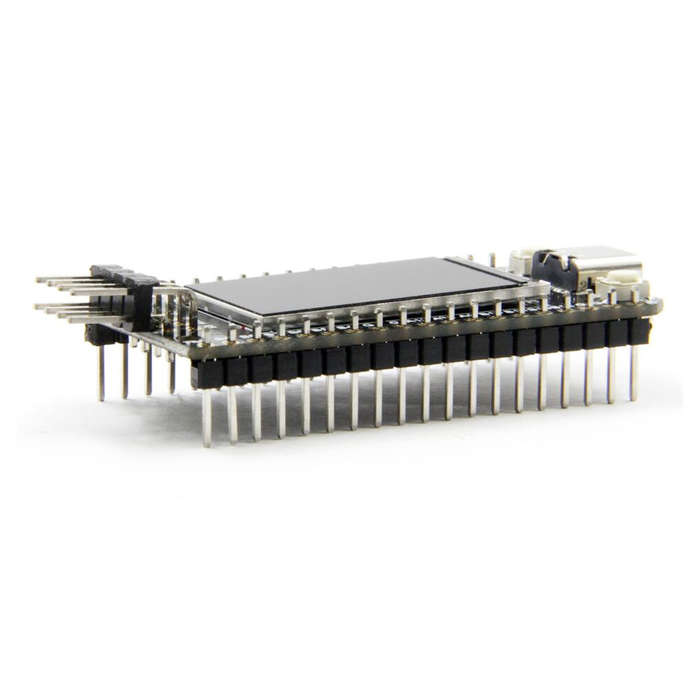

LILYGO TTGO T-Display-GD32 RISC-V 32-bit Core Minimal Development Board 1.14 IPS

New 20 available
R462.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
651232291
Feature:

Hardware Specifications
Chipset GD32VF103CBT6
FLASH 128KB
SRAM 32 KB
On-board clock 108MHz crystal oscillator
Working voltage 2.7V-3.6V
Power 1/3 Cortex-M3
Peripheral
Button BOOT,RESET
LCD ST7789, 1.14 IPS, 240x135
USBtoTTL CP2104
Modular interface TIMER, UART, SPI, I2C,PWM,ADC,DAC, CAN,USBOTG
Working temperature range -40ᆪC~ +85ᆪC
Weight 10g

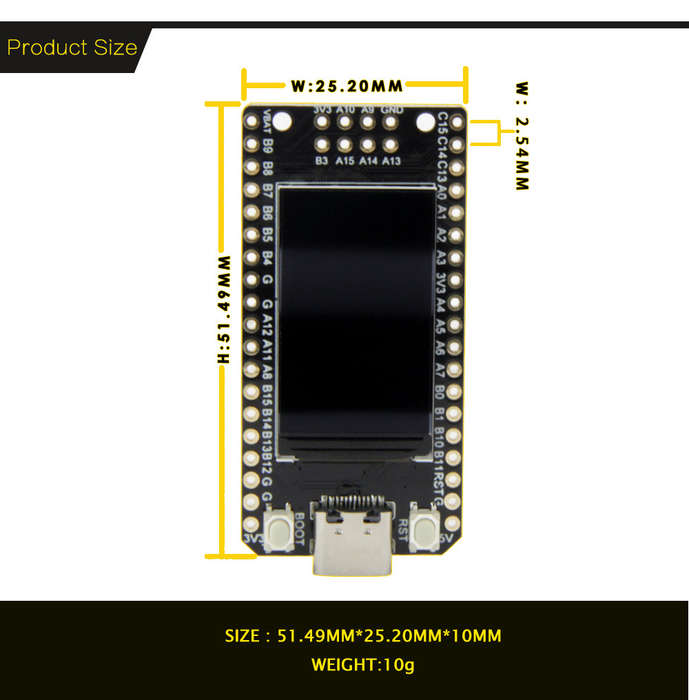

Size 51.49 x 25.2 x 10mm
Periphera Button, RGB LED, SD slot, LCD
Power Supply Specifications
Power supply input USB 5V/1A
Charging current 500mA
Battery input 3.7-4.2V
USB TYPE-C
Peripheral functions aTimer: Use 16-bit timer * 4
Basic 16-bit timer * 2
Advanced 16-bit timer * 1
aUSART * 3
aI2C * 3
aSPI * 3
aCAN * 2
aUSBFS (OTG) * 1
a|ADC (10 channel) * 2
aDAC * 2

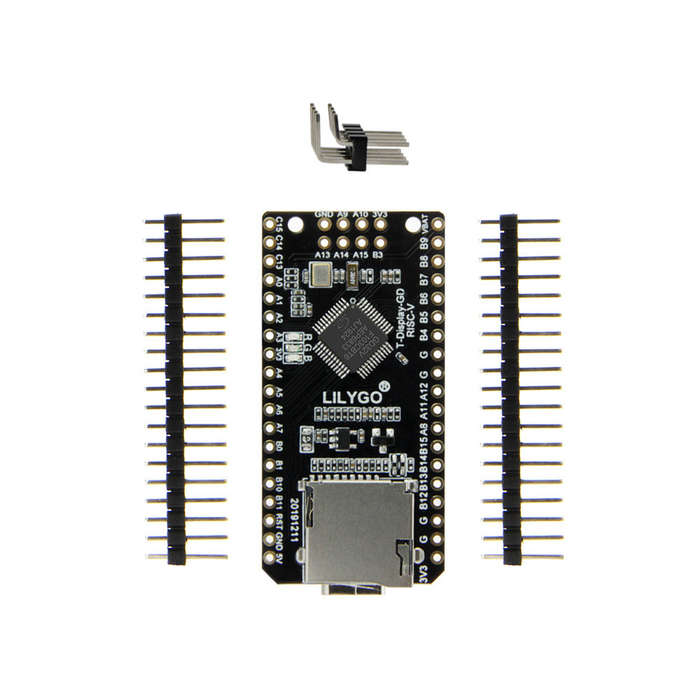

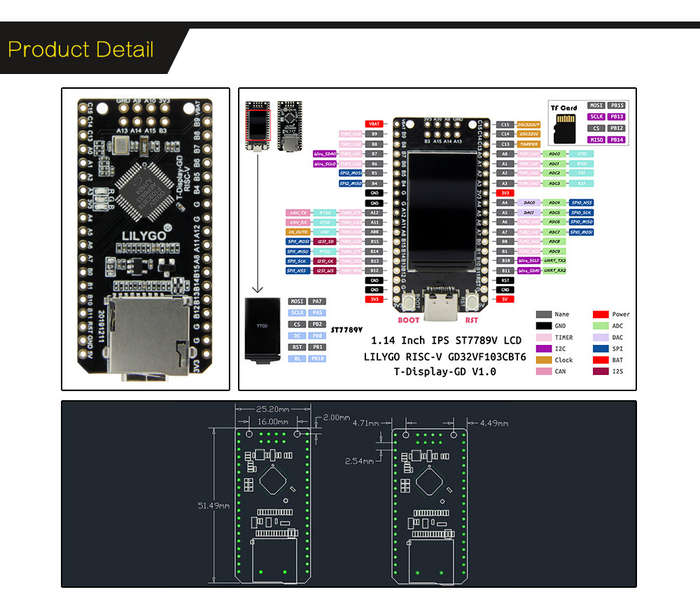

IO Standard 2.54mm pin header interface, leading to all resources of the chip
Interface Lead out LCD, MICRO SD card, JAG and other interfaces

Package includes:

1 xMinimal Development Board
