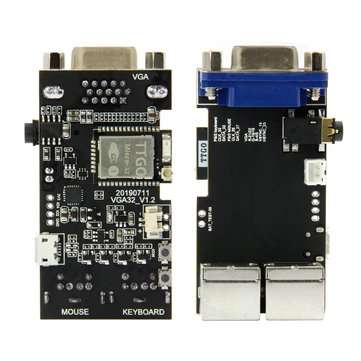

LILYGO TTGO VGA32 V1.4 Controller PS/2 Mouse And Keyboard Controller Graphic... (TYPE: CP2104CHIP)

LILYGO TTGO VGA32 V1.4 Controller PS/2 Mouse And Keyboard Controller Graphic... (TYPE: CP2104CHIP)

New 20 available
R609.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
651232310

SELECTED OPTION:
TYPE: CP2104CHIP

Feature:

Update information: Add audio output interface 3.5mm interface, and speaker output JST 2.0 PH 2-Pin interface

Hardware Specifications
Chipset TTGO Micro32
FLASH QSPI flash 4MB / PSRAM8MB
SRAM 520 kB SRAM
Button Reset,IO36
Extended function VGA, PS/2
USB to TTL CP2104/CH9102F(Optional)
Modular interface UART,SPI,SDIO,I2C,LED PWM,TV PWM,I2S,IRGPIO,capacitor touch sensor,ADC,DACLNA pre-amplifier
On-board clock 40MHz crystal oscillator
Working voltage 2.7V-3.6V
Working current about 30mA
Sleep current 230uA
Working temperature range -40~ +85
Size & Weight without VGA: 60.99mm*32.06mm*16.79mm
with VGA:66.70mm*32.06mm*16.79mm
21.25g
Power Supply Specifications
Power Supply USB 5V/1A
Charging current 500mA
Battery 3.7V lithium battery
Wi-Fi Description
Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
Protocol 802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4S Protection interval
Frequency range 2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power 22dBm
Communication distance 300m
Bluetooth Description
Protocol meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
