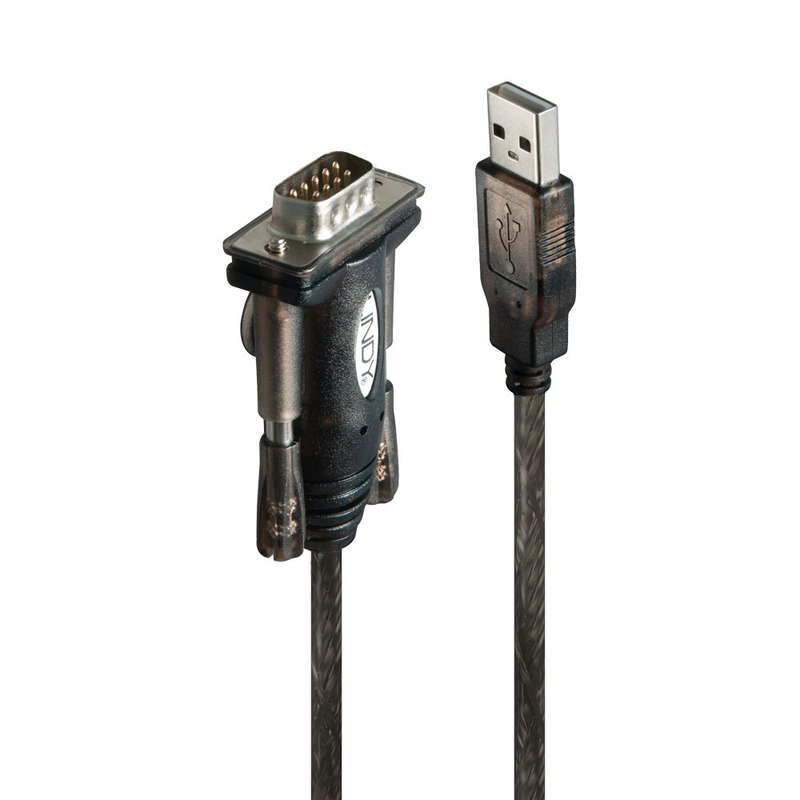

Lindy 1.5M Usb To 9-Pin Rs232 Serial Adapter Cable (42855)

Lindy 1.5m USB to 9-Pin RS232 Serial Adapter Cable (42855)

Connects a serial device to a USB Type A computer

• 9 Way D Male to USB A Male connectors
• Plug & Play - USB bus-powered with no external power supply required
• Compatible with Windows and Mac Operating Systems

The Lindy USB to Serial Converter Lite allows the user to easily connect peripheral devices featuring 9 Way Serial RS232 to a USB Type A port. With both USB Type A and serial connectors, this device is a perfect solution for connecting legacy RS232 equipment such as barcode scanners and industrial devices to notebooks and Macbooks, in retail and IT scenarios.

This converter is compatible with both Windows and Mac operating systems and as it is USB bus-powered, it can be installed quickly and simply with no need for additional power supplies.

Technical details

Specifications

• Interface: USB to RS232 Serial
• Interface Standard: USB 1.1, RS232
• Supported Bandwidth: 12Mbps, 128kbps
• Chipset: PL2303RA
• Compatibility: USB Type A equipped computers

Connectors

• Inputs: 1 x USB Type A (Male)
• Outputs: 1 x RS232 9 way (Male)
• Power: Bus-powered

Physical Properties

• Dimensions WxDxH:
• • 33x60x16mm / RS232
  • 15x48x7mm / USB
• Cable Length: 1.5m
• Housing Material: Plastic
• Net Weight: 0.07kg
• Operating Temperature: 0°C - 60°C
• Storage Temperature: -20°C - 80°C
• Humidity: 0 - 80% RH (non-condensing)
• Colour: Transparent Grey

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 174x194mm
• Gross Weight: 0.129kg
• Certificated: CE, FCC, RoHS & REACH
