Lindy 15cm 0.15m 2 X Right Angle SATA-Power to LP4-Power Cable 33616

Lindy 15cm 0.15m 2 X Right Angle SATA-Power to LP4-Power Cable 33616

Description

• Connects a legacy PSU to a newer SATA device
• Supports the connection of modern SSDs, HDDs and Blu-Ray disc drive.
• 5.25" Male Power (LP4) to 15 pin Female SATA Power, 90° angled
• Perfect for DIY PC builders and in-house technical teams
• 10 year warranty

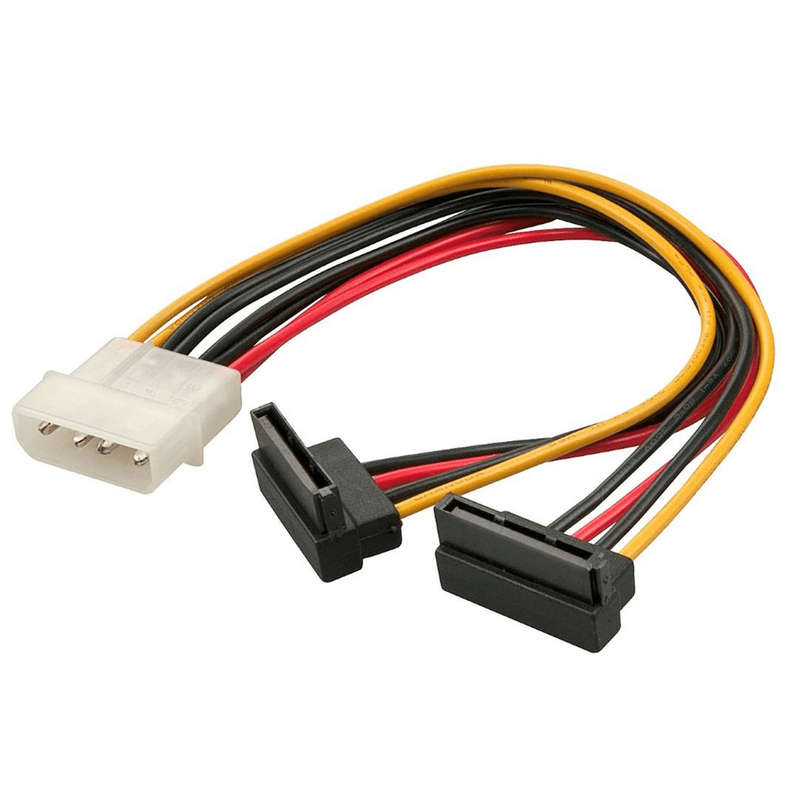

The Lindy Power Adapter Cable is a high-performance adapter, allowing users to connect SATA drive with standard 5.25" (LP4) connectors. Perfect for DIY PC builders and in-house technical teams this adapter cable allows the user to connect a legacy PSU to two newer SATA devices such as a SSD, HDD or Blu-Ray disk drive.

Technical details

Connectors:

• Connector A: 5.25" Male (LP4)
• Connector B: 2x15 pin SATA Female (Power), 90°
• Housing Material: Plastic (PBT)
• Pin Construction: Phosphor Copper
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
  • A: 21,5x24,3x8.5mm (0.85x0.96x0.33in)
  • B: 24,1x12x5.8mm (0.95x0.473x0.23in)

Cable construction:

• Length: 0.15m (0.49ft)
• Standard: 3.3V - 12V
• Colour: Red, Yellow, Black
• Type: Round
• Jacket Diameter: 2.0mm (0.08in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 18AWG

Specifications:

• Supported Bandwidth: -
• Operating Temperature: -10°C - 80°C (14°F - 176°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)

Miscellaneous:

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH

Purchasing information:

• No.: 33616
• EAN: 4002888336161

This product is also available in other lengths:

• 33615 - 0.15m (0.49ft)
• 33616 - 0.15m (0.49ft)
