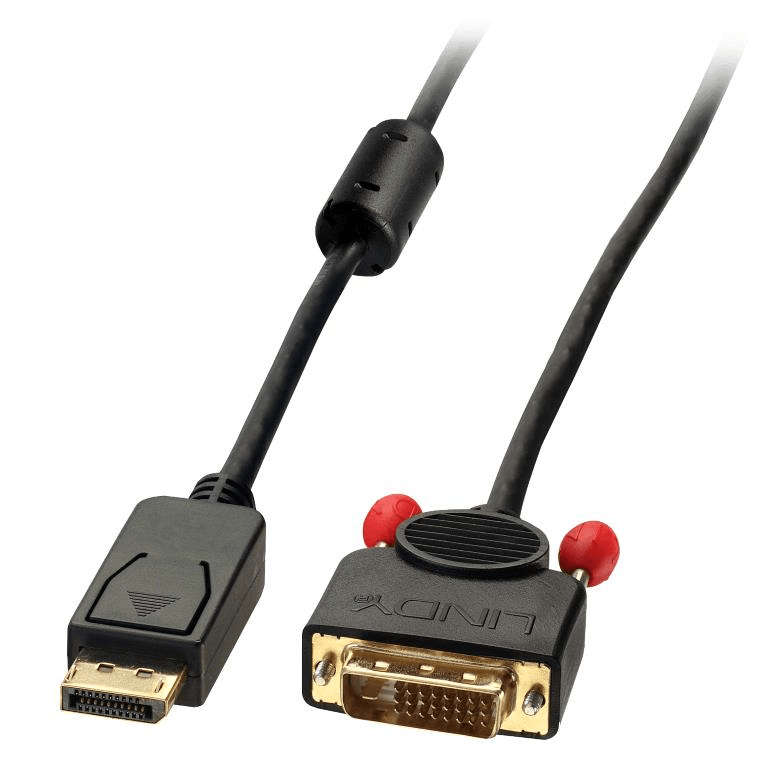

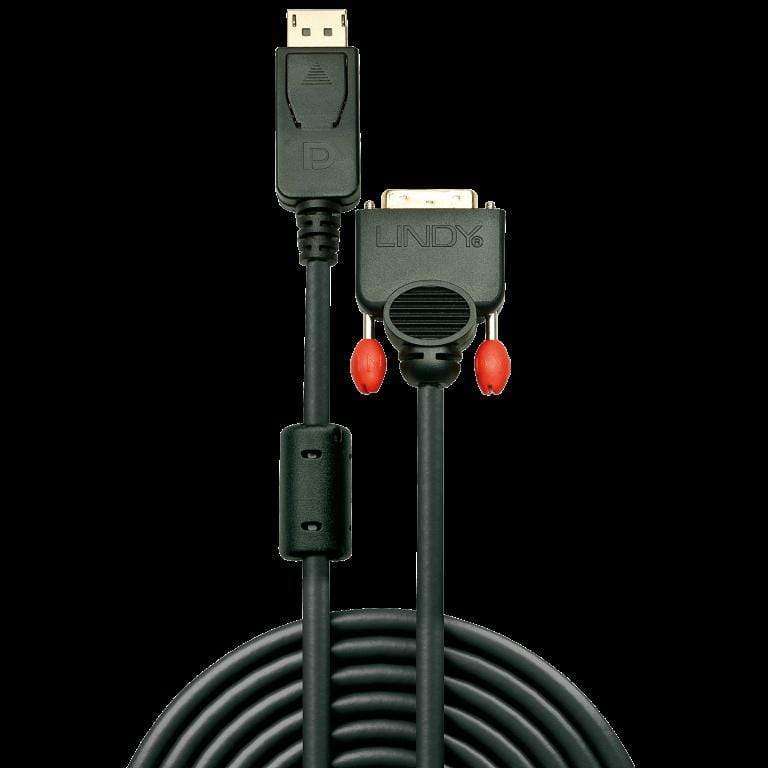

Lindy 2m DisplayPort to DVI-D Cable 41491

Description

• Connects a DisplayPort equipped device to a DVI display
• Supports resolutions up to 1920x1200-60Hz
• Supports video mirroring and extended desktop modes
• Male to male connections for a secure direct connection
• 2 year warranty

The Lindy DisplayPort to DVI Cable is ideal for connecting a DisplayPort equipped source such as a PC or laptop to an DVI display. It supports high definition video resolutions up to 1920x1200-60Hz.

This cable can also be used to add another display to extend the available desktop workspace and increase productivity, great for use in residential or workplace office setups.

Technical details

Connectors

• Connector A: DisplayPort Male
• Connector B: DVI-D Male
• Housing Material:
  • DisplayPort: ABS
  • DVI: PVC
• Connector Plating: Gold plated
• Pin Construction: Copper
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH:
  • DisplayPort: 42x22x9.4mm (1.65x0.87x0.37in)
  • DVI: 46x39.8x15.9mm (1.81x1.57x0.63in)

Cable Construction

• Length: 2m (6.56ft)
• Standard: DVI-D (Single Link), DisplayPort 1.1
• Colour: Black
• Type: Round
• Jacket Diameter: 5.5mm (0.22in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 30AWG
• Shielding: Aluminum Braid 85%

Specifications

• Supported Bandwidth: 1.65Gbps
• Maximum Resolution: 1920x1200-60Hz
• Nominal Attenuation:
  • 300KHz-825MHz  <5dB
  • 825MHz-2.475GHz  <5dB - <12dB

• Minimum Bend Radius: 60mm (2.36in)
• Operating Temperature: 0°C - 45°C (32°F - 113°F)
• Storage Temperature:  -10°C - 80°C (14°F - 176°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH, UL & California Proposition 65

Purchasing Information

• No.: 41489
• EAN: 4002888414890

This product is also available in other lengths

• 41489 - 0.5m (1.64ft)
• 41490 - 1m (3.28ft)
• 41491 - 2m (6.56ft)
• 41492 - 3m (9.84ft)
• 41493 - 5m (16.44ft)
