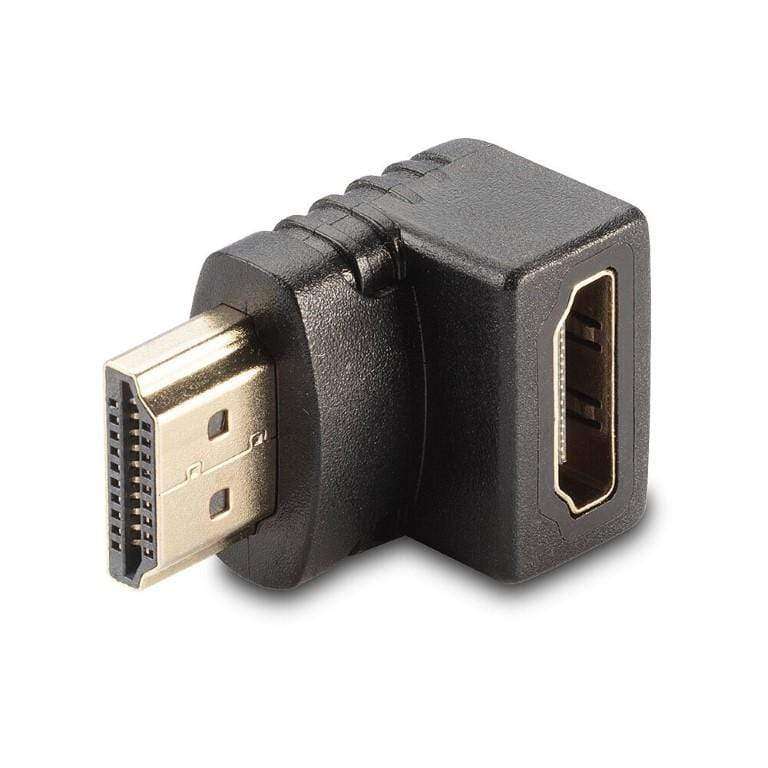

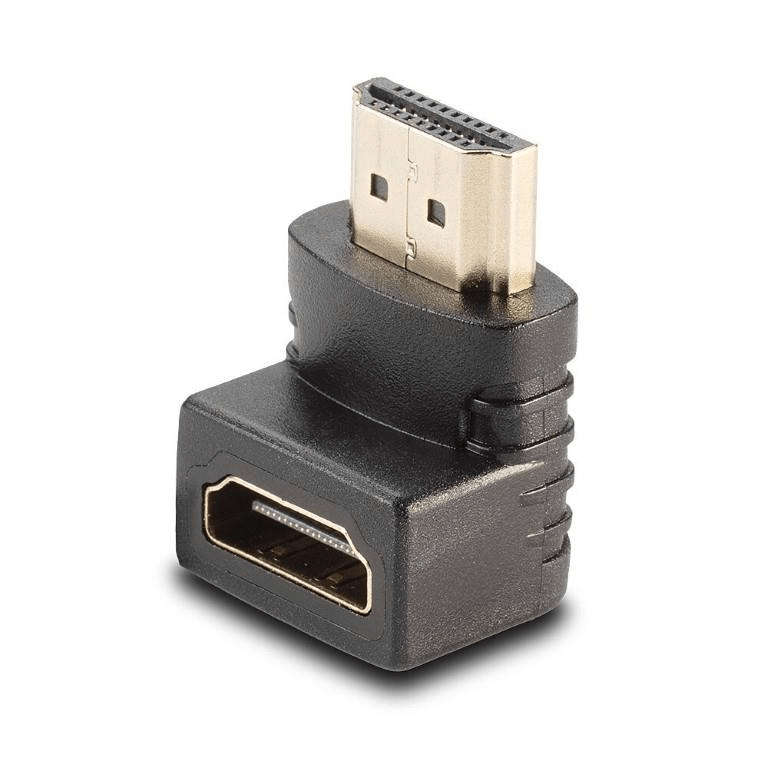

Lindy HDMI Female to Male 90-Degree Right Angle Adapter Down 41085

Discover 22,000+ In-Stock Products!

https://www.bobshop-/store/FirstShop

Brand New & Sealed with Manufacturer Warranty!

Available: Mon—Fri, 08:00—17:00 - Closed on weekends & public holidays

Lindy HDMI Female to Male 90-Degree Right Angle Adapter Down 41085

Description

• Connects a HDMI cable to a HDMI display or device with recessed ports or within limited spaces
• Install at a 90° angle for setup where connection is required in a downward configuration
• Supports resolutions up to 4K UHD 3840x2160-60Hz 4:4:4 8bit
• Compact design, perfect for use in discreet or wall mounted display installations
• 10 year warranty

The Lindy HDMI 90° downward angled adapter is a compact solution for connecting HDMI cables to HDMI displays or devices with recessed ports, or within limited space where cable connector sizing may affect installation. This adapter allows for a 90° connection in a downward direction if ports are situated on the back of the display or PC.

This is an ideal tool within wall mounted digital signage installations, gaming setups or educational spaces, with no lasting impact on a connected cables strain relief or lifespan. In installations where the cable connection is frequently disconnected and reconnected (e.g. in the area of hardware testing), the adapter can be used to extend the lifespan of the actual ports on the devices.

Please note: it is common for desktop PCs to have HDMI ports function in the opposite configuration. If this is applicable, please check whether this or the opposing adapter (41086) is required.

Technical details

Connectors

• Connector A: HDMI Male
• Connector B: HDMI Female
• Housing Material: PVC
• Connector Plating: Gold
• Pin Construction: Gold
• Pin Plating: Gold
• Dimensions (approx.) WxDxH: 21x21x17.1mm (0.83x0,83x0.69in)

Cable Construction

• Length: -
• Standard: -
• Colour: Black
• Type: -
• Jacket Diameter: -
• Jacket Material: -
• Conductor Material: -
• Conductor Gauge: -
• Shielding: -

Specifications

• Supported Bandwidth: 18Gb/s
• Maximum Resolution: 4K UHD 3840x2160-60Hz 4:4:4 8bit
• Nominal Attenuation: -
• Minimum Bend Radius: -
• Operating Temperature: -10°C - 50°C (14°F - 122°F)
• Storage Temperature: 0°C - 40°C (32°F - 104°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH

Purchasing Information

• No.: 41085
• EAN: 4002888410854
