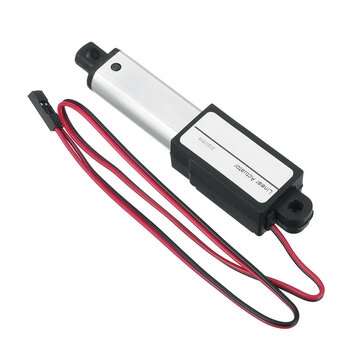

Linear Actuator 12V DC 50mm Stroke Electric Window Opener Linear Motor IP54 (SIZE: 30MM)

20 available / new

R810.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3512

93.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643383232

SELECTED OPTION:
SIZE: 30MM

Descriptions:

Linear Actuator 12V DC 50mm Stroke Electric Window Opener Linear Motor IP54

Specifications:

Moving distance	50mm
Material	Aluminum alloy
Speed	30mm/s,15mm/s,9.5mm/s
Input Voltage	12V DC
Duty cycle	10%

Technical Parameters:

1. Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the top, it will automatically disconnect the electricity.
2. The motor will not idle. Cut off the power, it can be stop at any position, with self-locking function.
3. The push rod is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation.
4. The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.
5. Ambient temperature -10ﾣC to +50ﾣC.

Product features:

1. Drive other objects to push, pull, rise, drop.

2. Low noise design, noise level less than 50dB.

3. Standard protection class: IP54.

Product Applications:

TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.

Package Includes:
