Linear Motion Ball Bearings Slide Block (SC6UU)

Linear Motion Ball Bearings Slide Block (SC6UU)

New 10 available
R99.66
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
3DP-0086
Bob Shop ID
643637886

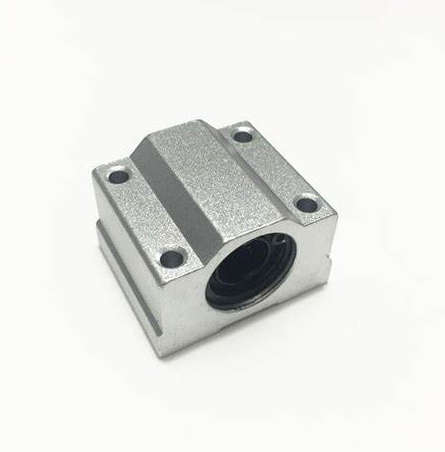

Linear Motion Ball Bearings Slide Block (SC6UU):

A pillow block linear ball bearing intended for CNC applications is the SC6UU. Its lightweight aluminum casing contains a standard-type linear bushing, which makes mounting it simplejust bolt it to a table. For this pillow block to function, the diameter of your rod must match the 6mm of the internal bearings. It's ideal for using the supplied tapped screw threads to enter linear rods and fix plates. These bearings are frequently found in tiny engraving and 3D printer devices.

Specifications:

  • Diameter of Inscribed Circle (dr): 6 mm
  • Overall Length (L): 25 mm
  • Material of Outer Cylinder: Iron
  • Basic Load Rating (Dynamic Rating): 206 N
  • Basic Load Rating (Static Rating): 265 N
