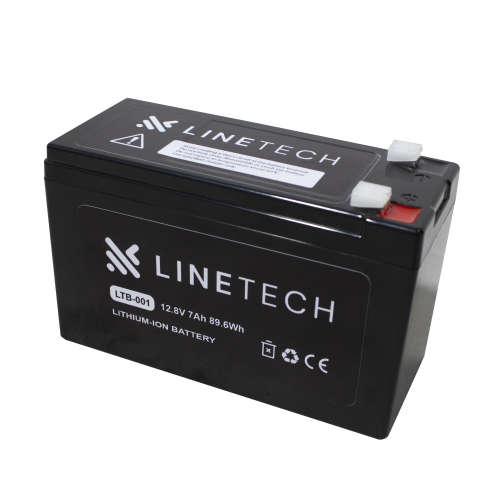

LINETECH 12.8V 7Ah 89.6Wh Lithium-Ion Battery

The all new LINETECH 12.8V 7Ah 89.6Wh Lithium-Ion Battery is perfect for gate motors, alarm systems, electric fences, and CCTV.

Features:

• Long-lasting
• Water & Dust Resistant (IP55)
• Mountable for Convenience
• Exceptionally Strong Sealed Plastic Enclosure

Specifications:

• Nominal Voltage: 12.8V
• Nominal Capacity: 7Ah
• Energy: 89.6Wh
• Internal Resistance(AC): 60m
• Cycle Life: >2000 cycles @1C 100%DOD
• Months Self Discharge: <3%
• Efficiency of Charge: 100% @0.5C
• Efficiency of Discharge: 96~99% @1C
• Charge Temperature: 0 to 55 @60±25% Relative Humidity
• Discharge Temperature: -20 to 60 @60±25% Relative Humidity
• Storage Temperature: -20 to 40 @60±25% Relative Humidity
• IP Class: IP65
• Plastic Case: ABS
• Terminal: T2

Standard Charge

• Charge Voltage: 14.6 ± 0.2V
• Charge Mode: 0.2C to 14.6V
• Charge Cut-off Voltage: 14.6V ± 0.2V
• Standard Discharge current: 4.0A
• Max. Discharge Current: 7.0A
• Charge Cut-off Voltage: 14.6V±0.2V

Standard Discharge

• Rated Discharge Current: 4.0A
• Max. Discharge Current: 7.0A
• Discharge Cut-off Voltage: 10.0V

What's in the box:

• 1 x LINETECH 12.8V 7Ah 89.6Wh Lithium-Ion Battery
