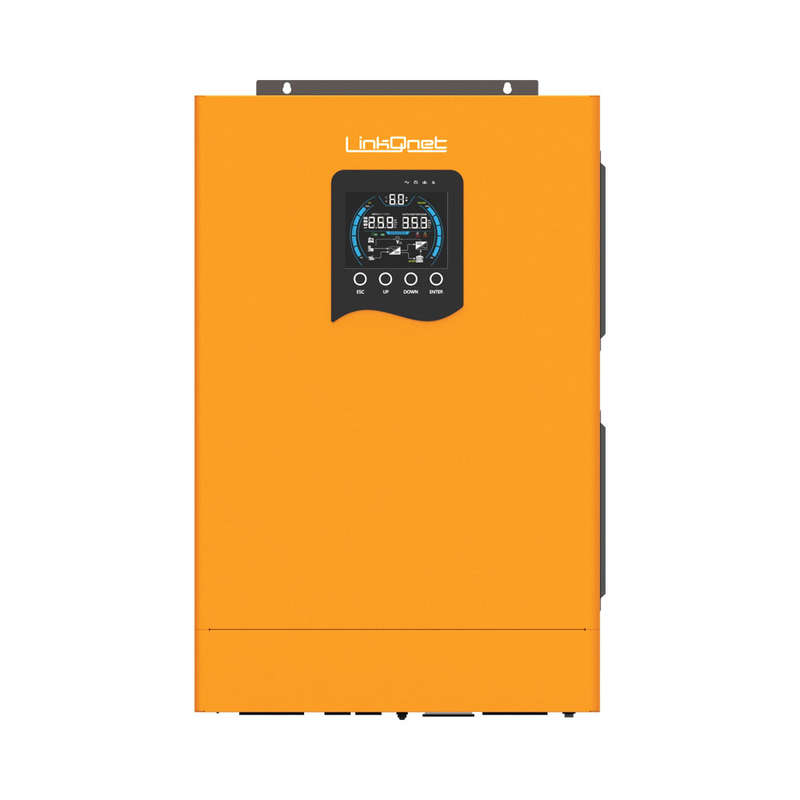

LinkQnet 10kVA Dual Output 48V Inverter

FEATURES:

  • Pure Sinewave Solar Inverter
  • Compatible with AC Mains or Generator Inputs
  • Considerable PV Input Types
  • Build-In Smart Solar Charger (PWM/MPPT)
  • Auto Restart while AC is Recovering
  • Configurable AC/Solar Input Priority via LCD Setting
  • Selectable Input Voltage Range for Home Appliances and Personal Computer Loads
  • Dual PV Input Max. 36A

SPECIFICATIONS:

LinkQnet 10kVA Dual Output 48V Inverter
Rated Power10,000VA / 9,500W
Parallel CapabilityYes (optional), up to 4 units
Operation without BatteryNo
Lithium Battery CommunicationYes
Dual OutputYes
INPUT
Voltage220/230/240VAC
Selectable Voltage Range170-264Vac (for personal computer), 90-280Vac (for home appliances)
Frequency Range50Hz/60Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Battery Mode)(220VAC-240VAC) ±5%
Surge Power20,000VA
Wave FormPure Sinewave
Inverter Efficency (Peak)0.94
Transfer Time10ms (typical)
BATTERY
Normal Vottage48VDC
Floating Charge Voltage (Settable)55.2VDC
Overcharge Protection60VDC
SOLAR CHARGER AND AC CHARGER
Max. PV Array Open Circuit Voltage500VDC
PV Array Voltage RangeMPPT 120-450VDC
Number of MPP Trackers2
Max. PV Input Power12,000W (6000W ×2)
Max. PV Input Current18A ×2
Max. Solar Charge Current100A ×2
Max. AC Charge Current200A
Max. Charge Current200A
COMMUNICATION
InterfaceUSB/RS485/CAN/DRY CONTACT
Wi-Fi MonitoringYes (optional)
MECHANICAL SPECIFICATIONS
Machine Dimensions (H × W × D)460 × 700 × 120mm
Package Dimensions (H × W × D)805 × 530 × 200mm
Net Weight22.85kg
Gross Weight25.05kg
CERTIFICATION
CEEMC:
EN IEC 61000-6-3:2021
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A2:2021/EN IEC 61000-6-1:2019
VD:
EN 62109-1:2010
EN 62109-2 2011
OTHER
Humidity5% to 95% Related Humidity (Non-condensing)
Operating Temperature0°C~40°C
Storage Temperature-15°C~60°C
Product specifications are subject to change without further notice
