LinkQnet 1U 10" 12-Port CAT6 Patch Panel

Bring Neat, Structured Cabling To Your Mini Rack.

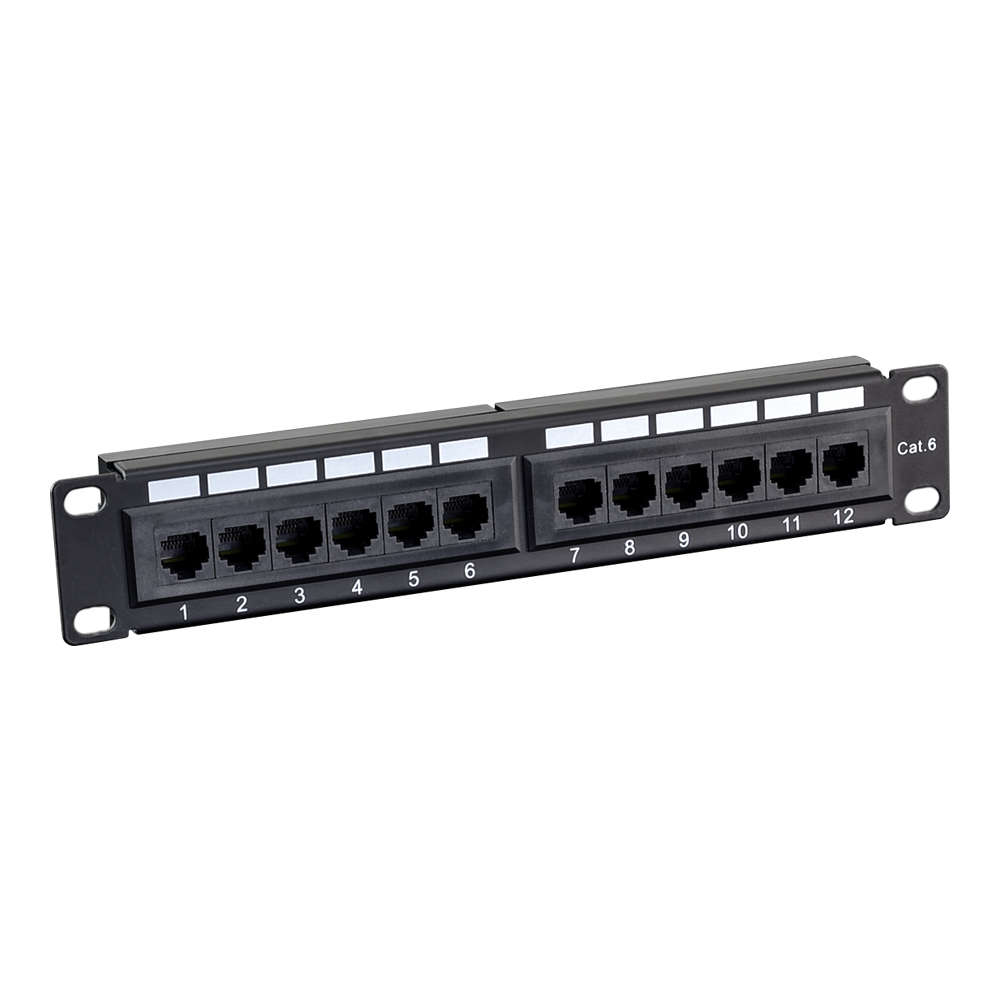

The LinkQnet 1U 10" 12-Port CAT6 Patch Panel provides a compact termination and distribution point for compatible LinkQnet 10" Mini Open Racks. Twelve numbered RJ45 ports help keep network connections clearly identified, while dual IDC wiring supports both T568A and T568B termination standards. Designed for solid and stranded 22~26AWG network cable, it is ideal for homelab, Home Assistant, smart-home and enthusiast installations where space and cable organisation matter. The durable black metal panel blends seamlessly with matching LinkQnet shelves, blanking panels and brush panels, creating a neat, coordinated desktop rack setup.

FEATURES

12-Port Network Distribution - Provides twelve numbered RJ45 ports for organised network connections
Compact 10" Rack Format - Designed for compatible LinkQnet Mini Open Racks

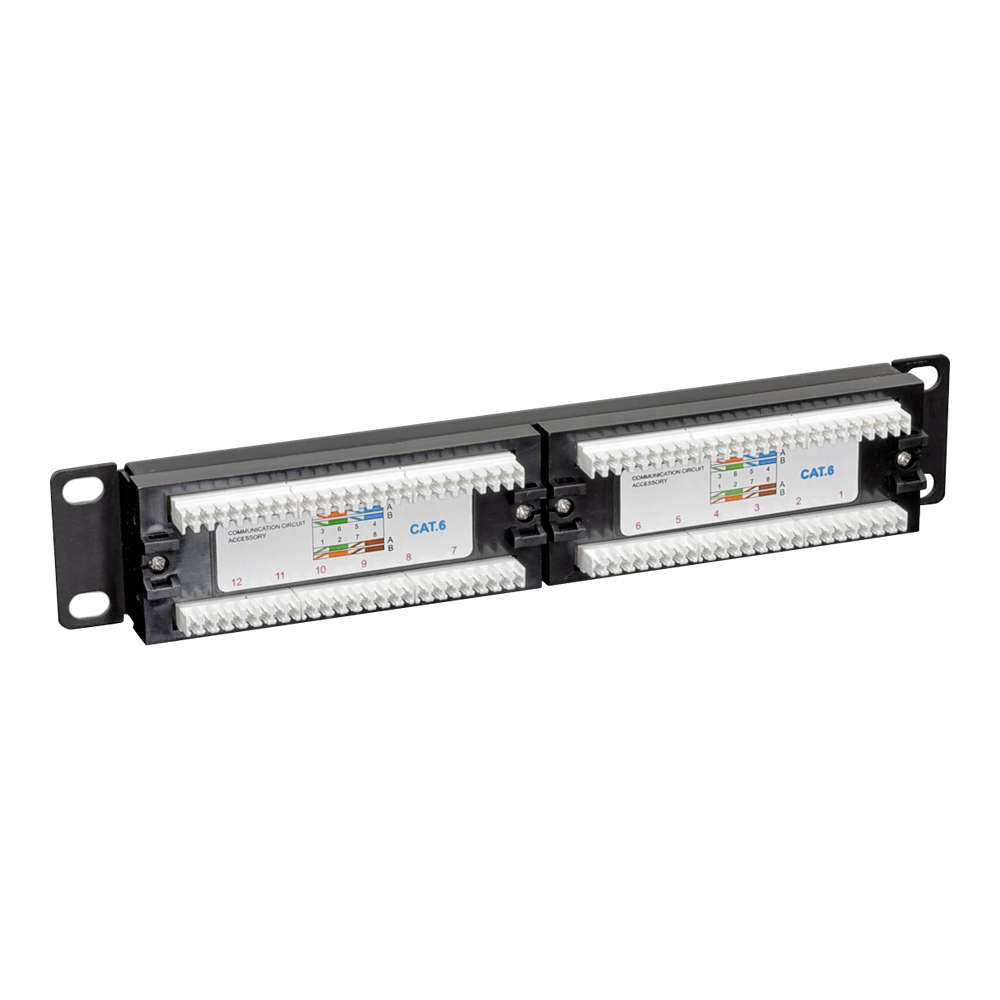

Dual IDC Termination - Supports both T568A and T568B wiring configurations
Solid and Stranded Cable Support - Accepts compatible 22~26AWG network conductors
Clear Port Numbering - Makes connected cables easier to identify and manage
Integrated Label Holders - Provides space for custom port identification
Durable Contact Design - Uses phosphor bronze contacts with nickel and gold plating
Reliable Cable Retention - Designed to maintain secure connections between plugs and sockets
1U Rack Height - Uses one rack unit within compatible 10" installations
Homelab and Smart-Home Ready - Ideal for Home Assistant, mini-server and enthusiast network builds
Durable Metal Construction - 1.2mm SPCC panel provides a sturdy rackmount structure
Matching Black Finish - Complements the wider LinkQnet 10" rack accessory range

SPECIFICATIONS

Rack Format: 10"
Rack Height: 1U
Network Ports: 12× RJ45
Wiring Standards: T568A And T568B
Termination Type: Dual IDC
Supported Cable Conductors: Solid And Stranded
Supported Wire Gauge: 22~26AWG
Panel Material: 1.2mm SPCC Steel
Panel Finish: Black Painted
RJ45 Housing Material: Polycarbonate
IDC Housing Material: Polycarbonate, UL94V-2
Jack Bracket Material: ABS
PCB Rating: FR4, UL94V-0
Contact Material: Phosphor Bronze
Contact Plating: Nickel with Gold-Plated Contact Area
Insertion Force: 900g for 8 Contacts
Plug Retention Strength: 7.7kg
RJ45 Durability: up to 750 Insertion Cycles
IDC Durability: up to 200 Punchdown Cycles
Operating Temperature: -40~70°C
Overall Width: 254mm
Mounting Width: 236mm
Overall Height: 44.45mm
Port Section Height: 32mm
Colour: Black
Installation Type: Rackmount

COMPATIBLE SERIES

LinkQnet 4U To 9U 10" Mini Open Racks
LinkQnet 1U 150mm Deep Cantilever Shelf
LinkQnet 1U Blanking Panel
LinkQnet 1U Brush Panel
