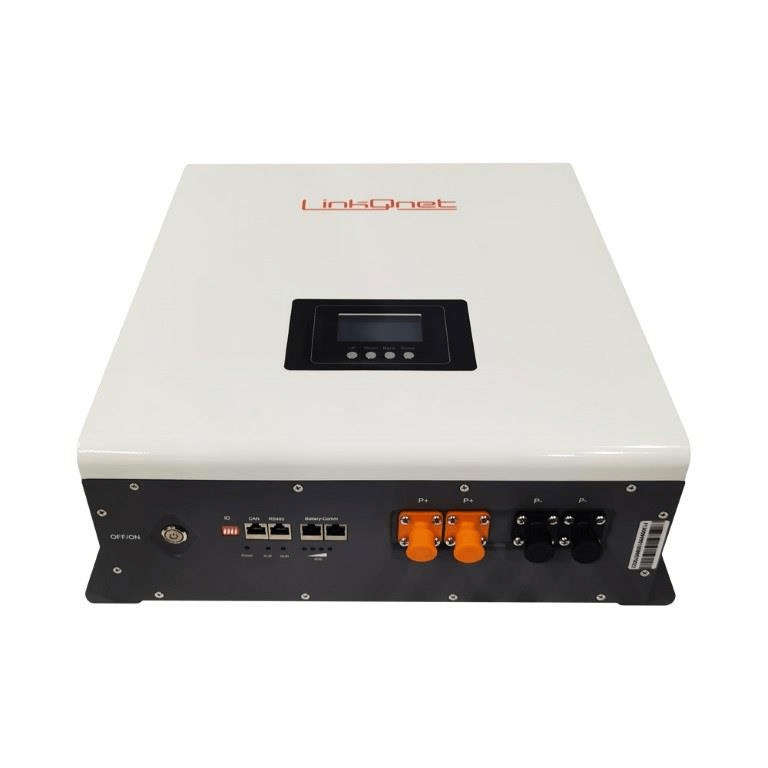

LinkQnet 25.6V 100Ah Wallmount LiFePO4 Battery Pack with CAN BMS BAT-LI-25100WM-TG
Features
High Density Solution
The battery pack is expertly constructed from premium materials and complies with all major safety and performance specifications. The core cell storage consists of sixteen new Lithium-Ion Phosphate (LFP) prismatic cells manufactured by Hefei Guoxuan Hi-Tech Power Energy Co., Ltd. Guoxuan are the manufacturers of choice for leading German EV brands and well as many other electric vehicle manufacturers.
Innovative Battery Management System
The BMS has been designed with the experience of over ten years of battery management involvement. It uses internationally sourced components to ensure consistency, performance and reliability. The firmware is interactively developed and robust. The flexibility of both CAN bus and RS485 communications allows for a wide range of applications. The LCD display allows a clear overview of the battery state of charge and condition without the need for interfacing to a computer.
Technical Specification
Basic Parameters
Rated Voltage: 25.6 Volts
Rated Capacity: 100 Amp Hours
Rated Energy: 2560 Watt Hours
Rating: 1C
Operating Parameters
Operating Voltage Range: 22.4 Volts - 28.0 Volts
Charge Voltage Range: 27.6 Volts - 28.0 Volts (Typical Inverter Bulk/Float Charge can be set to 27.7V)
Cut-off Voltage: 22.4 Volts (Typical Inverter cut-off can be set to 23.0V)
Recommended Charge Current: 50 Amps
Maximum Charge Current: 100 Amps
Maximum Discharge Current: 100 Amps
Physical Parameters
Dimensions: 400mm (D) x 550mm (W) x 160mm (H) - Optimized for wall mounting
Weight: 38kg
Communication Ports: RS485 (For programming) , CAN bus, 2x Inverter Battery-Comm / Stacking Ports
Display: LED and LCD with cursor keys for BMS Status and State of Charge
Output Terminal: 2 x Red Amphenol SurLok Positive, 2 x Black Amphenol SurLok Negative
Output Protection: Internal Electronic Circuit Disconnecter
Service Life
Cycle Life: More than 6000 Cycles at 50 Amp Discharge Rate and 80% Depth of Discharge
Hardware Design: Life Fifteen Years
Warranty: Five Years, based on the terms and conditions of the warranty policy
Installation
Inverter Integration to BMS: Requires customized cable for each specific inverter brand, refer to manual
Inverter Integration without BMS: Will emulate Lead Acid battery, can be optimized by altering inverter parameters
BMS base protocol compatibility: Voltronic "LIb" BMS protocol / Optional Pylontech BMS protocol
Addressable Parallel Stacking: Battery packs can be paralleled up to sixteen addressable units per solution
Installation Competency: Not consumer installable. Needs to be wired into inverter/UPS by a Qualified electrical contractor with appropriate experience.
