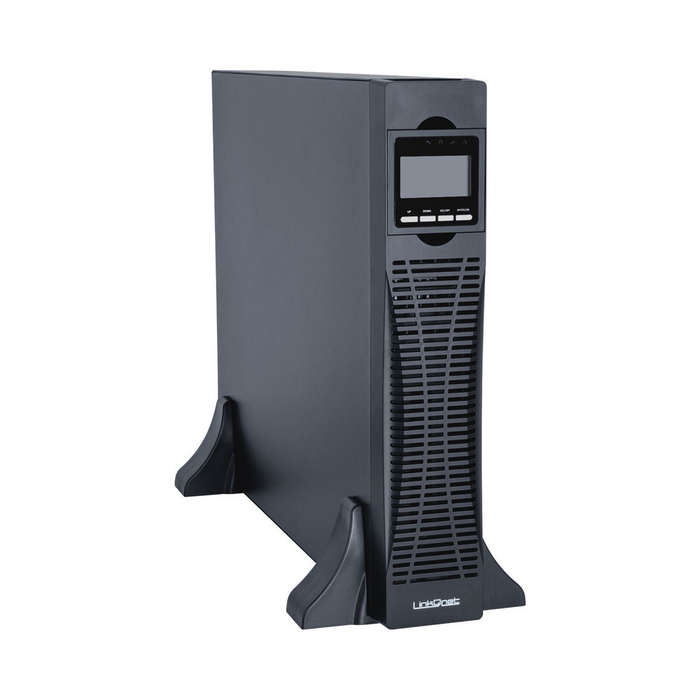

LinkQnet 2KVA 48V MP XRT 2U Rackmount Online UPS - Requires Batteries
FEATURES:
SPECIFICATIONS:
Capacity | 2000VA/ 1800W | |
INPUT | ||
Nominal voltage | 208/220/230/240Vac | |
Input voltage range | 110~300Vac (176~280Vac @ 100% load) | |
Frequency range | 40~70Hz (50/60Hz Auto-Sensing) | |
Power factor | 0.99 | |
OUTPUT | ||
Output voltage | 208/220/230/240Vac | |
Power factor | 0.9 | |
Voltage regulation | ±1% | |
Output frequency | Line Mode | 46~54Hz or 56~64Hz |
Bat. Mode | (50/60±0.1%)Hz | |
Crest factor | 3:01 | |
Harmonic distortion (THDv) | 3% Linear load | |
5% Non linear load | ||
Transfer time | AC mode to Bat.Mode | 0ms |
Inverter to Bypass | 4ms (Typical) | |
Output waveform | Pure Sinewave | |
EFFICIENCY | ||
AC mode | 91% | |
Battery mode | 87% | |
BATTERY | ||
12V Series Battery number | 4 (48V) | |
Battery Capacity (typical) | 9Ah to 200Ah | |
Typical recharging time | 4 hours (to 90% of full capacity based on battery capacity) | |
Charging voltage | 54.8Vdc±1% | |
Charging current (Max) | 12A | |
INDICATORS | ||
LED display | Line mode,Bat.mode, ECO mode, Bypass mode, Battery low voltage, Overload and UPS fault | |
LCD display | Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, | |
Battery voltage, Inner temperature and Remaining battery backup time | ||
ALARM | ||
Battery mode | Beeping every 4 seconds | |
Battery low | Beeping every second | |
Overload | Beeping twice every second | |
Fault | Continuously beeping |
