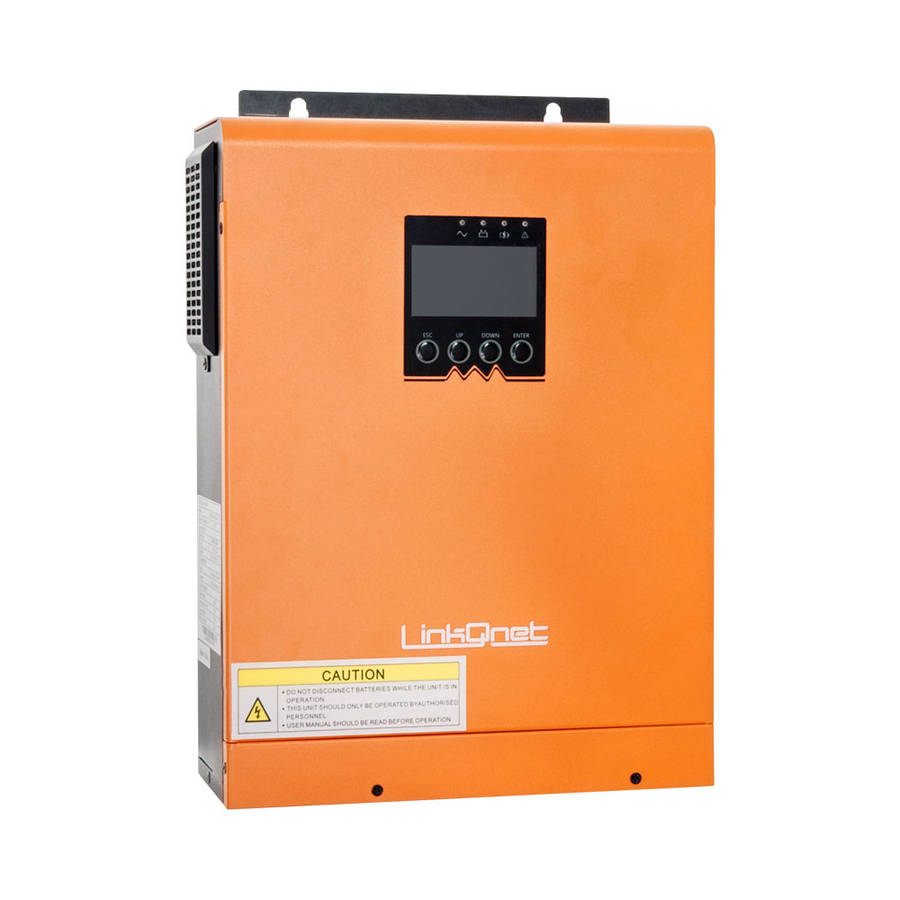

Linkqnet 3024 Value 3Kva 24V Pure Sinewave Off-Grid Grid Backup Solar Inverter

LinkQnet 3024 Value | 3kVA 24V Pure Sinewave Off-Grid / Grid Backup Solar Inverter

Budget Inverter Solution: The LinkQnet 3024 Value 24V DC to 230V AC Inverter solution includes a 40A AC-DC charger and 50A DC-DC PWM 1200W Solar charger for a combined total charging capability of 90A and 2400W DC-AC pure sinewave inverter in one compact solution. It is designed for fixed and mains socket AC sources by limiting the power delivery to 2400W while charging at 1000W to draw a total of less than 15 Amps from the AC plug.

Multiple Deployment Options: With no PV solar panels attached while connected to the utility power grid and battery storage, the unit can function as a power backup source during load shedding or unforeseen utility power failures. The unit can also operate as a hybrid solar storage solution connected to the utility power grid or a generator to assist with charging the batteries when solar levels are low or as an off-grid pure solar storage solution with only the solar panels connected to charge the batteries. The internal electronics and AC relay arrangement make it physically impossible for the inverter to feed power towards the grid or generator.

Solid and Reliable: The LinkQnet range of multi-functional inverters have been designed to tolerate African power grid and environmental conditions and are intended to be installed by a qualified electrician or certified solar solution provider in accordance with SANS 10142-1. If you are not qualified then Linkqage will always direct you to one of our many registered installers.

Battery Options: The LinkQnet 3024 Value can support lead acid (Flooded, VRLA AGM or GEL), Lithium Iron Phosphate battery (LiFePO4) or Super Capacitors for storage.

FEATURES:

• Pure sinewave inverter with 2400W RMS power (3000VA)
• Built-in 50A PWM solar charge controller
• Configurable input voltage range for home appliances or UPS transfer (<10ms)
• Configurable battery charging current based on application
• Configurable AC/solar charger priority
• Can be wired to be powered from a standard South African 15A plug socket
• Compatible with mains or generator power
• Auto restart when AC recovers or PV power is available
• Overload / over temperature / short circuit protection, variable speed low noise fans
• Smart battery charger design for optimised battery performance
• Cold start function

SPECIFICATIONS:
