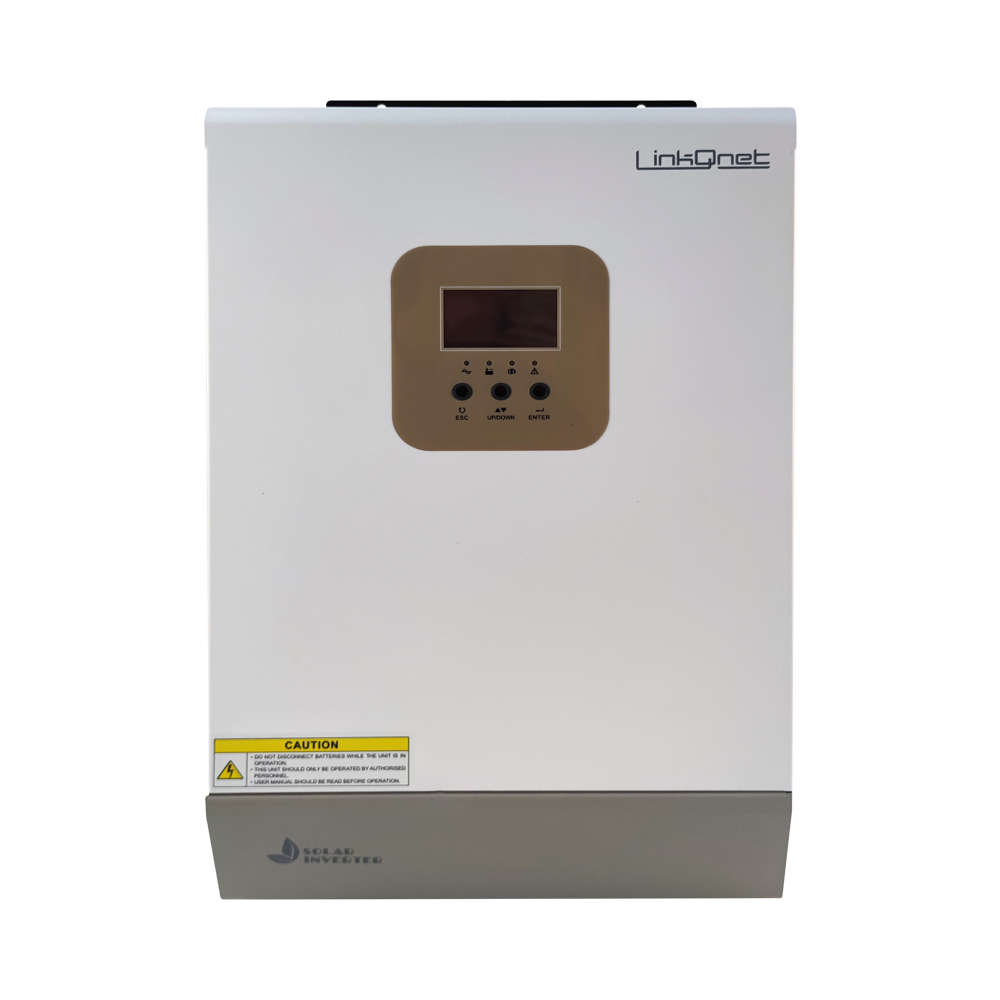

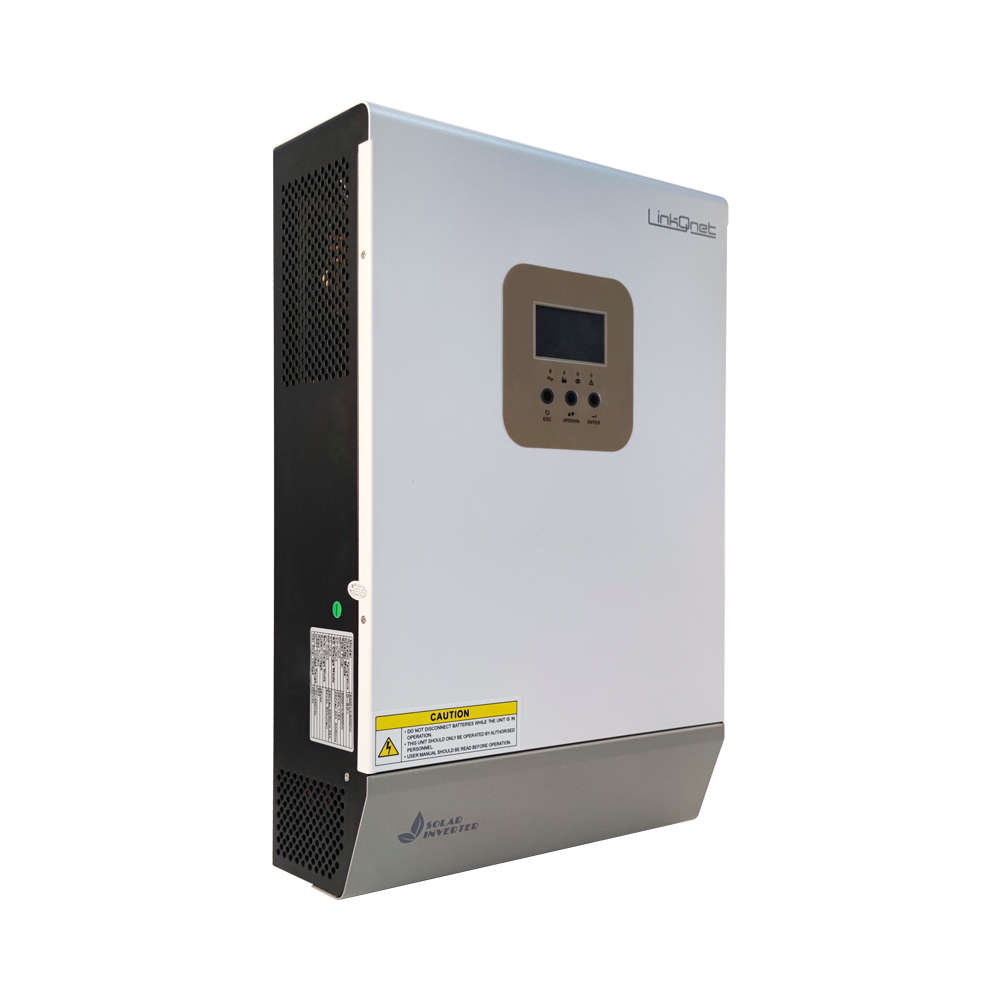

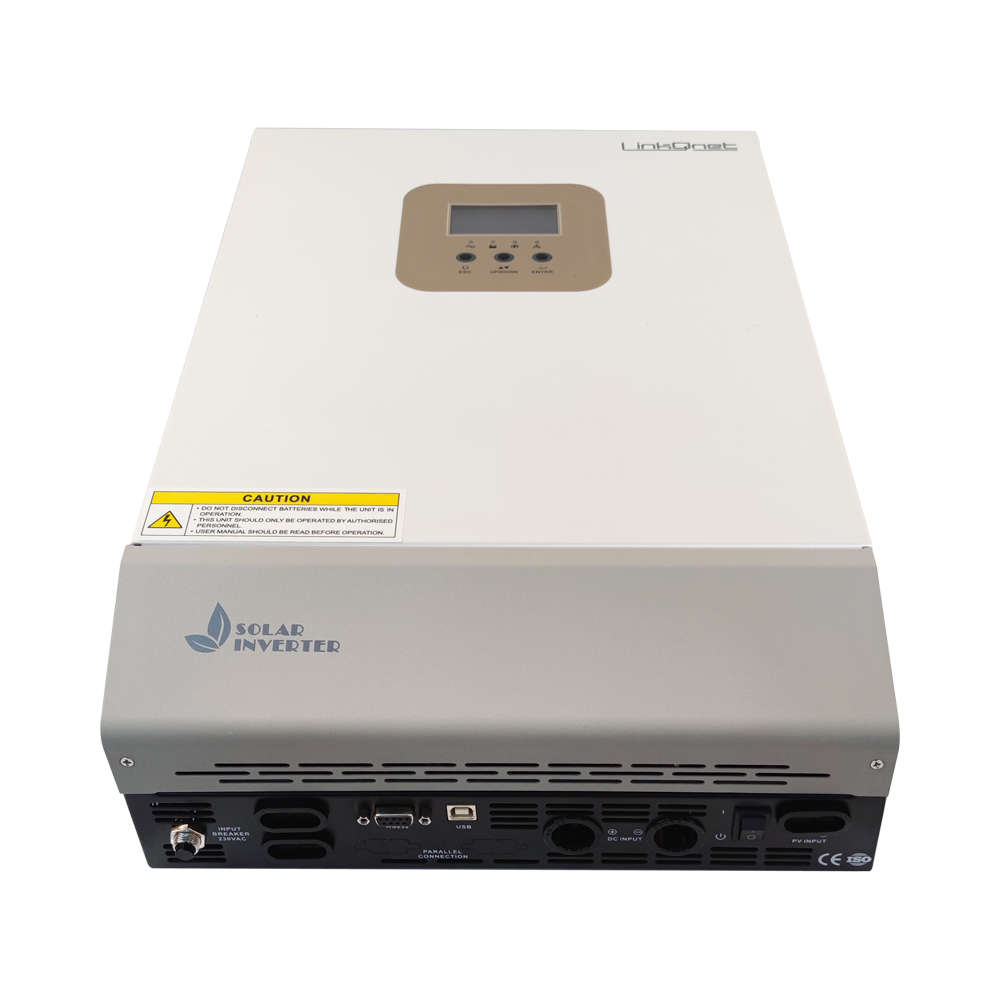

LinkQnet 5KW Off-Grid / Grid Backup MPPT Solar Inverter
Reliable Hybrid Solar And Backup Power Solution for Residential and Commercial Applications.
The LinkQnet UPS-INV-5KVA-5048TG Generation 2 is a powerful 5KW off-grid and grid backup MPPT solar inverter designed for African power grid and environmental conditions. Combining a 5000W pure sinewave inverter, 80A AC charger and high-voltage 5500W MPPT solar charger into a single compact unit, this advanced hybrid inverter provides reliable backup power, solar energy management and battery charging for homes, offices and commercial environments. Supporting multiple battery technologies including LiFePO4, AGM, GEL and Super Capacitors, the system offers flexible deployment for pure off-grid, hybrid solar storage or utility backup applications.
FEATURES
5KW Pure Sinewave Inverter - Delivers stable and clean power for sensitive electronic equipment
True Off-Grid Or Grid Backup Operation - Suitable for hybrid solar and backup power installations
Built-In 5500W MPPT Solar Charger - High-voltage MPPT charger with up to 450V DC input
80A AC And Solar Charging - Efficient battery charging for demanding energy storage systems
Parallel Capable Design - Supports up to 9 units in single-phase or three-phase configurations
Unity Power Factor Output - Full 5000W real power output performance
Battery Independent Operation - Can operate without batteries when MPPT voltage exceeds 130V DC
Multiple Battery Compatibility - Supports Flooded, AGM, GEL, Li-Ion, LiFePO4 and Super Capacitor batteries
Configurable Power Management - Adjustable charging current and AC/Solar priority settings
UPS Transfer Functionality - Fast transfer times for backup power applications
Generator Compatible - Works with mains utility or generator power sources
Smart Battery Charging - Optimised charging performance for improved battery lifespan
Auto Restart Function - Automatically resumes operation when AC or PV power returns
Comprehensive Protection Features - Includes overload, over-temperature and short circuit protection
Optional Wi-Fi Monitoring - Supports cloud-based data logging via optional Wi-Fi dongle
RS485 And CANbus BMS Support - Compatible with LinkQnet LiFePO4 battery systems
Cold Start Function - Allows startup directly from battery power
Non-Export Design - Prevents power feedback towards the utility grid or generator
SPECIFICATIONS
INVERTER
Peak Power: 5000VA (10000VA Surge for Max 10 Seconds)
RMS Power: 5000W (PF=1)
AC Voltage: 230V Adjustable (220V - 240V)
AC Waveform: Pure Sinewave
Frequency: 50Hz / 60Hz Auto Sensing
Peak Efficiency: >94%
DC Voltage: 48V
Transfer Tolerance: 170V - 280V UPS Mode / 90V - 280V Appliance Mode
Transfer Time: 10ms UPS Mode / 20ms Appliance Mode
CHARGING
AC Charging Current: 80A Adjustable
Solar Charge Controller Type: MPPT
SCC Voltage Range: 120V - 430V DC
Maximum PV Open Circuit Voltage: 450V DC
Maximum SCC Power: 5500W
SCC Charging Current: 80A Adjustable
Maximum Combined Charging Current: 80A Adjustable
SCC Efficiency: 98%
OPTIONS AND COMMUNICATION
Parallel Support: Up to 9 Units in 1PH or 3PH
Communication Port: USB-B
BMS Support: RS485 / CANbus
Wi-Fi Support: Optional Wi-Fi Cloud Logging Dongle
Relay Support: NC / NO Relay Port for Generator Start Or Remote Devices
BATTERY SUPPORT
Supported Battery Types: Flooded, AGM, GEL, Li-Ion, Super Capacitor, Custom
Compatible Battery Technologies: LiFePO4, VRLA AGM, GEL and Super Capacitors
PHYSICAL
Dimensions: 110 × 300 × 440mm
Weight: 8.45kg
ENVIRONMENT
Operating Humidity: 5% - 95% Non-Condensing
Operating Temperature: 0°C - 40°C
Installation Environment: Indoor Use Only
INSTALLATION
Input Isolator And SPD: 40A - 63A Dual Pole Recommended
Input Circuit Breaker: 40A Normal Curve Recommended
Output Circuit Breaker: 25A Normal Curve Recommended
Bypass Switch: 40A - 63A Dual Pole Double Throw with Centre Off Recommended
Output Isolator: 25A - 63A Dual Pole Recommended
Earth Leakage Relay: 63A with 30mA Break Leakage Recommended
Installation Requirement: Qualified Electrician Required with CoC Compliance
