| BASIC PARAMETERS |
| Rated Voltage | 51.2 Volts |
| Rated Capacity | 100 Amp Hours |
| Rated Energy | 5120 Watt Hours |
| Rating | 1C |
| OPERATING PARAMETERS |
| Operating Voltage Range | 44.8 Volts - 56.0 Volts |
| Charge Voltage Range | 55.2 Volts - 56.0 Volts (Typical Inverter Bulk/Float Charge can be set to 55.3V) |
| Cut-O Voltage | 44.8 Volts (Typical Inverter Cut O can be set to 46.0V) |
| Recommended Charge Current | 50 Amps |
| Maximum Charge Current | 100 Amps |
| Maximum Discharge Current | 100 Amps |
| PHYSICAL PARAMETERS |

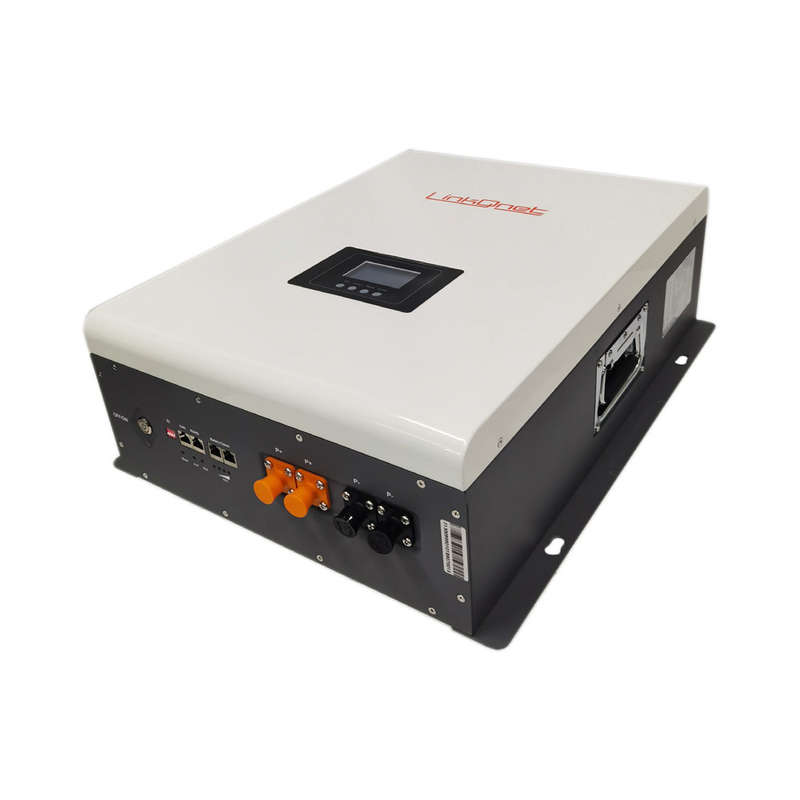

| Dimensions | 400mm (D) x 550mm (W) x 160mm (H) - Optimized for wall mounting |
| Weight | 49kg |
| Communication Ports | RS485 (For programming) , CAN bus, 2x Inverter Battery-Comm / Stacking Ports |
| Display | LED and LCD with cursor keys for BMS Status and State of Charge |
| Output Terminal | 2 x Red Amphenol SurLok Positive, 2 x Black Amphenol SurLok Negative |
| Output Protection | Internal Electronic Circuit Disconnecter |
| ENVIRONMENTAL |
| Humidity | 5% - 95% Relative Humidity |
| Charge Temperature Range | 0°C to 45°C |
| Discharge Temperature Range | -20°C to 60°C |
| Storage Temperature Range | -20°C to 45°C |
| SERVICE LIFE |
| Cycle Life | More than 6000 Cycles at 50 Amp Discharge Rate and 80% Depth of Discharge |
| Hardware Design Life | Fifteen Years |
| Warranty | Five Years, based on the terms and conditions of the warranty policy |
| CERTIFICATION |
| Safety | CE, EMC, TUV (IEC62619), UL1973 |
| Transportation | UN38.3 |
| INSTALLATION |
| Inverter Integration to BMS | Requires customized cable for each specic inverter brand, refer to manual |
| Inverter Integration without BMS | Will emulate Lead Acid battery, can be optimized by altering inverter parameters |
| BMS base protocol compatibility | Voltronic "LIb" BMS protocol / Optional Pylontech BMS protocol |
| Addressable Parallel Stacking | Battery packs can be paralleled up to sixteen addressable units per solution |
| Installation Competency | Not consumer installable. Needs to be wired into inverter/UPS by a qualied electrical contractor with appropriate experience. |
