LinkQnet RJ45 CAT 6 Double Wall Mount Surface Box

LinkQnet RJ45 CAT 6 Double Wall Mount Surface Box - RJ45, CAT 6, 250MHz Bandwidth

Product Overview

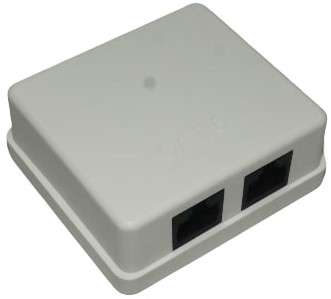

The LinkQnet CAT6 Double Wall Mount Surface Box offers dual device connections with two RJ45 female (8P8C) ports and an additional toolless IDC connection for easy cable termination. Designed for CAT6 UTP cables (AWG 24-22), it supports a maximum bandwidth of 250 MHz for efficient network performance. Its compact white housing measures 62.2x59.8x26.5 mm and includes screw assembly for secure wall installation.

Features

For tool-free assembly by solderless, screwless and stripping-free connection technology IDC mounting)
Patch panel incl. fixing screws for mounting on wall and desktop
CAT 6 distributor for cable diameters of up to 7.0 mm (AWG 22-24)
With a clear plastic display to label the individual connections for a perfect cable management.
2-port patch panel with RJ45 sockets for connecting terminated CAT 6 network cables

Specifications

Product Code: CAT6WALL-DB
Description: LinkQnet RJ45 CAT 6 Double Wall Mount Surface Box
Connection, type: 2x RJ45 female (8P8C)
Connection 2, type: for IDC connection (toolless)
Device connections
Device Connections: 2
Cable
Specification: CAT 6
Shielding class: UTP
AWG: 24-22
max. bandwidth: 250 MHz
General
Color: White
Width: 62.2 mm
Height: 59.8 mm
Depth: 26.5 mm
Consumption Unit: 1 pc
Assembly Material: screws
