Product details

Condition
New
Location
South Africa
Product code
UPS-ONL-1KVA-K
Bob Shop ID
625698112

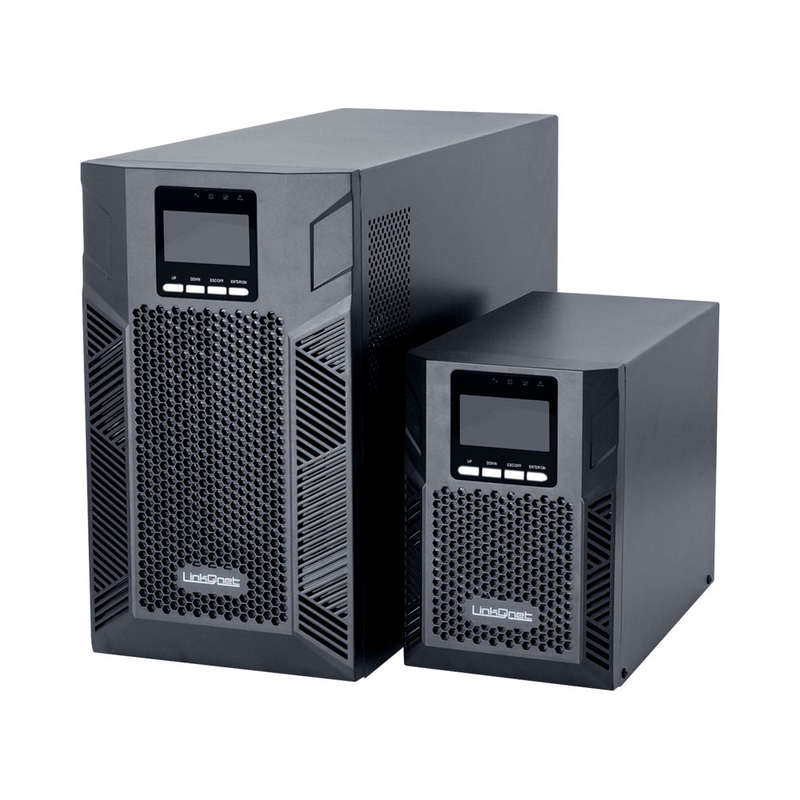

LinkQnet True Online Pure Sinewave Tower Series UPS (1kVA ~ 3kVA)

The LinkQnet 1 ~ 3kVA Online UPS Series are Reliable (Online Double Conversion, PF:0.99) and Compact in Size.
Thanks to the New Battery Discharge Protection Control Function, It is Perfect for Medium Voltage Substation Applications.

FEATURES:

  • Online double conversion
  • High power density
  • Online double conversion with full digital control
  • Wide input voltage range:110~300Vac
  • Input power factor 0.99 with PFC
  • Selectable output voltage: 208/220/230/240Vac
  • Smart charger design for optimized battery performance
  • Maximum charging current can be expanded to 12A (Long run unit)
  • Emergency power off function (EPO)
  • ECO mode operation for energy saving
  • Generator compatible
  • Cold start
  • Intelligent fan speed regulation
  • Versatile LCD human-computer interface
  • Multiple communication interface:RS232 (USB/EPO/Relay card/SNMP card optional)
  • Multiple protection function:short-circuit,overload,overheat, battery overcharge and overdischarge, output low voltage and fan fault alarm

SPECIFICATIONS:

Capacity:1000VA/900W3000VA/2700W
INPUT:
Nominal Voltage:208/220/230/240Vac
Input Voltage Range:110~300Vac (176~280Vac @ 100% load)
Frequency Range:40~70Hz (50/60Hz Auto-Sensing)
Power Factor:0.99
OUTPUT:
Output Voltage:208/220/230/240Vac
Power Factor:0.9
Voltage Regulation:±1%
Output Frequency:
Line Mode:46~54Hz or 56~64Hz
Bat. Mode:(50/60±0.1%)Hz
Crest Factor:03:01
Harmonic Distortion (THDv):3% Linear load
 5% Non linear load
Transfer Time:
AC mode to Bat Mode:0ms
Inverter to Bypass:4ms (Typical)
Output Waveform:Pure Sinewave
EFFICIENCY:
AC Mode:88%91%
Battery Mode:85%88%
BATTERY:
Battery Number:26
Capacity (Standard Unit):Standard Run models have internal 9Ah/12V VRLA Batteries Installed. Extended Run models cannot accept internal batteries and require an external battery solution.
Typical Recharging Time:4 hours (to 90% of full capacity)
Charging Voltage:27.4Vdc±1%82.2Vdc±1%
Charging Current (Max.):1A
INDICATORS:
LED Display:Line mode, Bat.mode, ECO mode, Bypass mode, Battery low voltage, Overload & UPS fault
LCD Display:Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature & Remaining battery backup time
Alarm:
Battery Mode:Beeping every 4 seconds
Battery Low:Beeping every second
Overload:Beeping twice every second
Fault:Continuously beeping
Physical:
Dimensions W × D × H (mm):144 × 293 × 209191 × 460 × 337
Net Weight (kg):9.324.5
Environment:
Operating Temperature:0°C~40°C
Storage Temperature:-25°C~55°C
Humidity Range:20~95%RH @ 0~40°C (Non condensing)
Altitude:<1500m, derating required when >1500m
Noise Level:<50db at 1 Meter
Standards:
Safety:IEC/EN62040-1,IEC/EN62477-1
EMC:IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8
