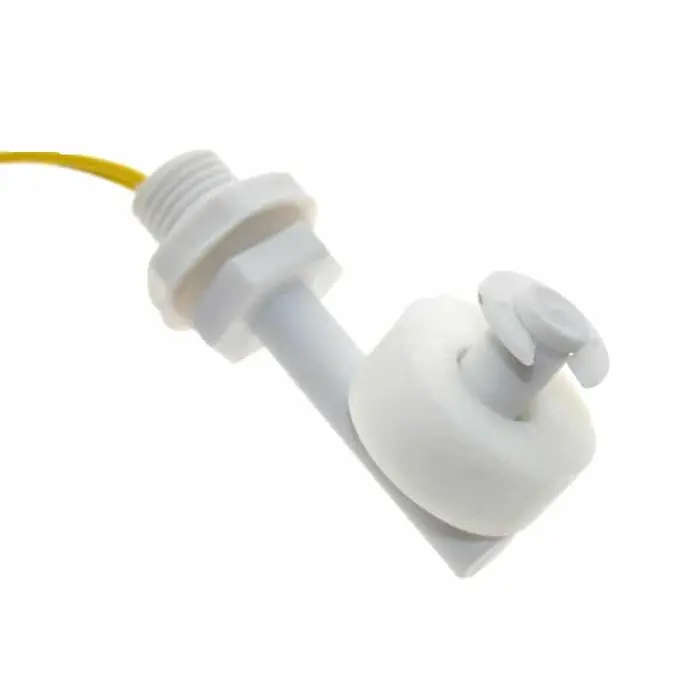

Liquid level switch 52mm Right angle

A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other devices. Right Angle installation allows easy mounting on vertical PVC pipes. Multiple float switches can be mounted on a PVC pipe to measure multiple levels in a liquid tank.

Use them with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, pumps, ponds, basement alarms, boats, air condition drain pans, pressure washers, carpet cleaning mach, reef aquarium, fluid control, ice machines, coffee pots, marine, automotive, automobiles, tropical fish tanks, evaporator coils, condensation line, in relays, or whatever your project may be. This is a mini float switch. Contains no mercury hence is not a hazard.

Technical Specifications

• Product Name: Liquid Water Level Sensor
• Max Contact Rating: 10W
• Max Switching Voltage: 100V DC/AC
• Max Switching Current: 0.5A
• Max Breakdown Voltage: 220V DC/AC
• Max Load Current: 1.0A
• Max Contact Resistance: 100m-ohm
• Temperature Rating: -10C to +85C
• Float Body Material: PP
• Float Ball Material: PP
• Net Weight: ~12.5g (including wire)
