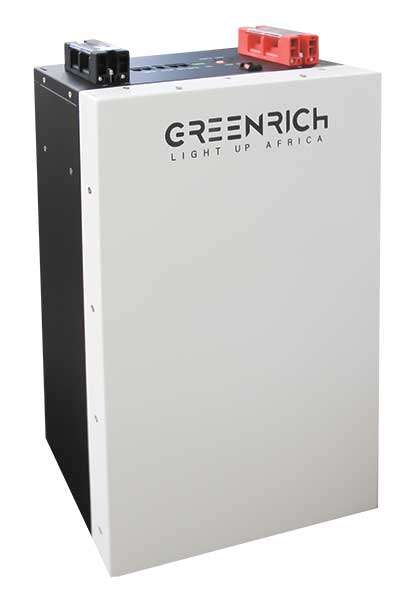

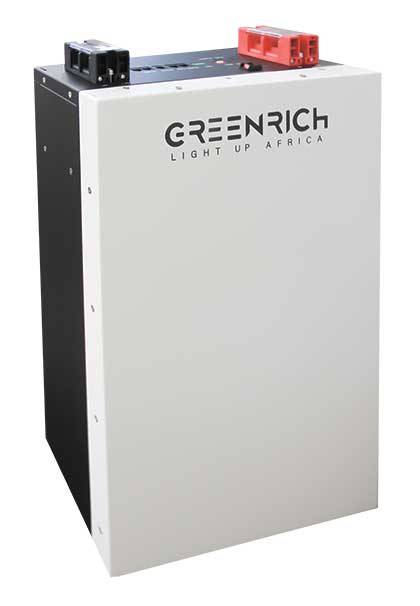

Lithium Battery

MODEL U-P5000
Rated Power
Parallel Capability
All information contained in this document is subject to change without notice.
Basic parameter
Rated Voltage 51.2V/96.6Ah
Nominal capacity 4.946kWh
PHYSICAL
Electrical parameter
ENVIRONMENT
Warranty
5 years warranty, > 6000 cycles life
Charge mode CC/CV/CP
80A Max.Charge Current
Discharge mode CC/CP
Discharging cut-of f voltage 44.8V
2) Max.Discharge Current
3) Peak Discharge Current
160A
350A(100ms)
Charging cut-of voltage 57.4V
Operating Temperature Charge?0~+55?/Discharge?-20~+60?
Storage Temperature -20~+45?(three months) / -20~+25? (one year)
Shipment status Voltage?52V~54V SOC?60%~80%
Humidity 5% to 95% Relative Humidity (Non-condensing)
Dimension, L x W x H (mm) 586 x 366 x 175.4
Net Weight (kgs) about 48kgs
Communication Interface RS232/RS485/CAN
1)For better battery life cycles,we suggest charge in 48A(0.5C @25?)
2)For better battery life cycles,we suggest discharge in 48A(0.5C @25?)
3)Peak Current excludes repeated short duration (less than 100ms) of current pattern.
