PRODUCT OVERVIEW

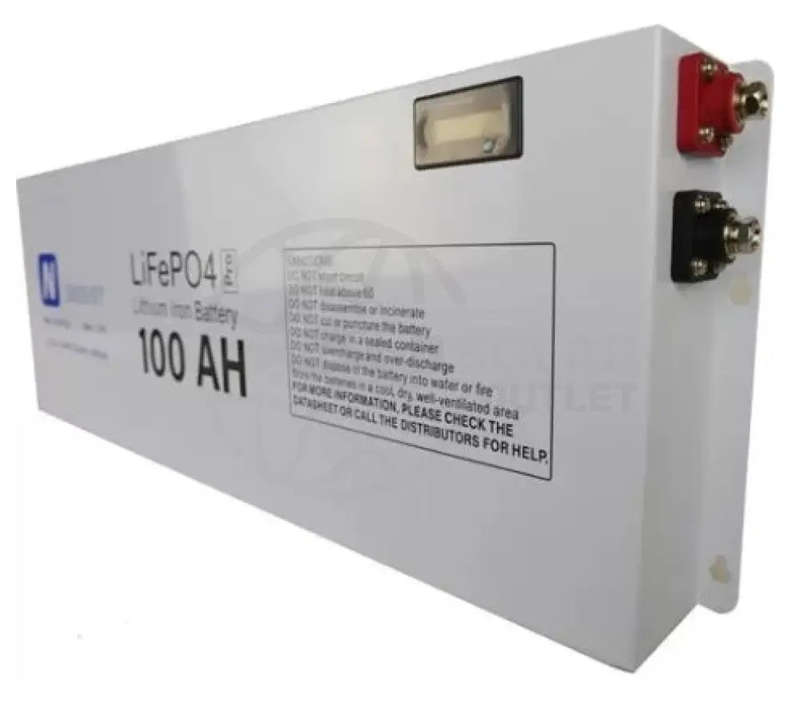

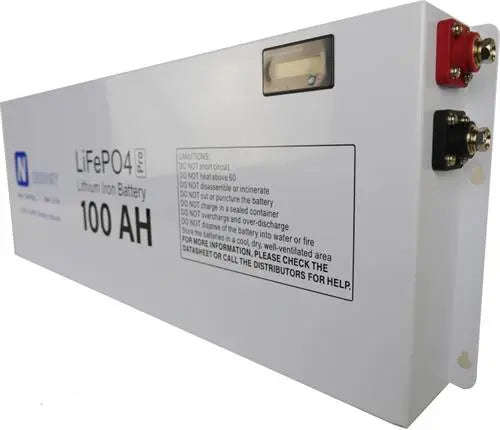

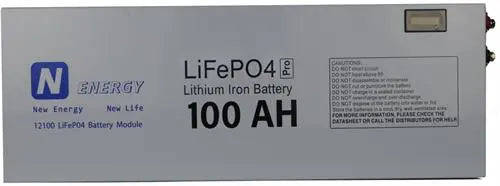

The Solarix Nenergy 12V 100Ah LiFePo4 Single Battery Module is a Lead-Acid/AGM /Gel batter battery replacement.

This Wall Mountable standalone design Li-ion LiFePO4 battery with a Total Usable Energy of 1.280 kWh is perfect for small to medium residential or office installations with a proven Lithium Iron Phosphate (LifePO4) solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 2000 at 80% DOD.

Lithium Ion Battery 12V 100AH 1.28KWH Nenergy Specificaitons:

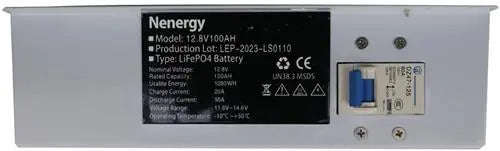

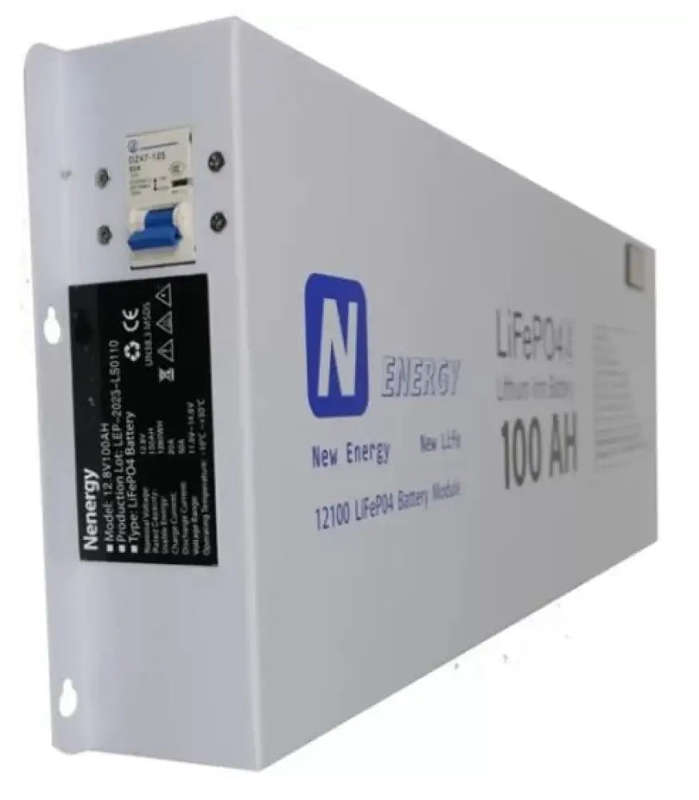

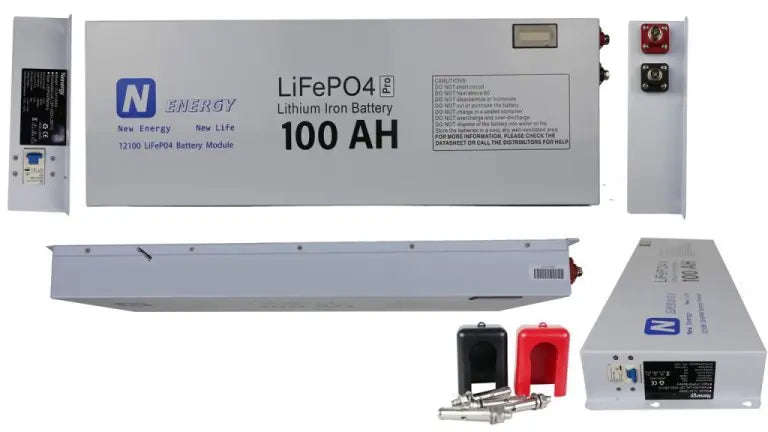

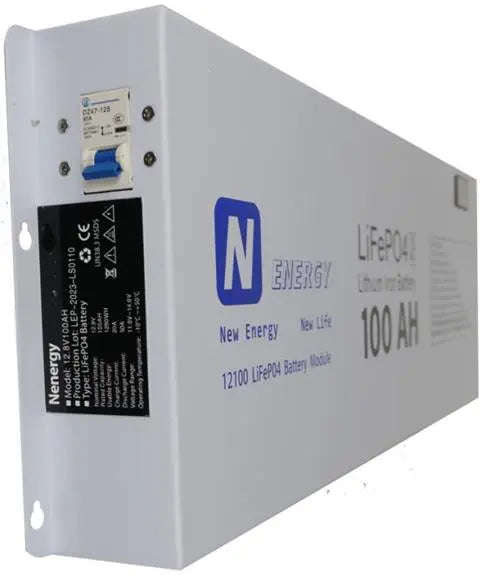

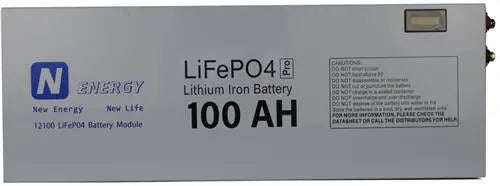

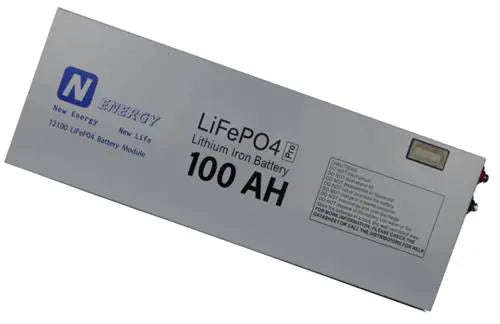

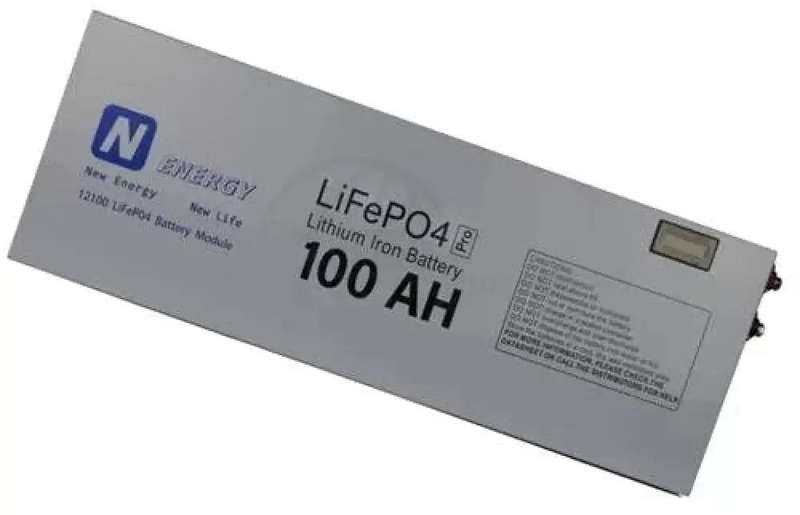

• Nenergy 12.8V 100Ah LiFePo4 Single Battery Module
• Wall Mount Installation Unit
• Nominal Voltage: 12.8V
• Working Voltage Range 12V
• Rated Capacity 100Ah
• Total Usable Energy 1.280 kWh
• Maximum Continuous Charging Current: 20A
• Maximum Continuous Discharging Current: 50A
• Working Voltage Range 116V-14.6V
• Built In Protection -Over-Charge, Over-Discharge, Over-Temperature

SPECIFICATIONS

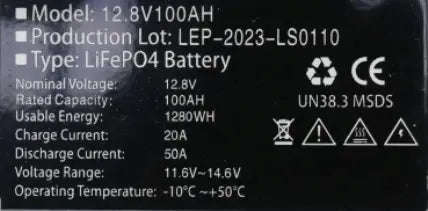

• Stock Code SOLNE12V100AH
• Description Solarix Nenergy 12V 100Ah LiFePo4 Single Battery Module
• Product Type Wall Mountable 12V 100Ah LiFePo4 Single Battery Module
• Rated Capacity 100Ah
• Nominal Voltage 12.8V
• Working Voltage Range 12V
• Maximum Continuous Charging Current: 20A
• Maximum Continuous Discharging Current: 50A
• Cells: New Li-Ion Prismatic Cells
• Design Life: -/+ 10 Years
• Cycle Life @ 1C: +/-1000 Cycles @ 100% DOD, Above 2000 cycles @ 80% DOD

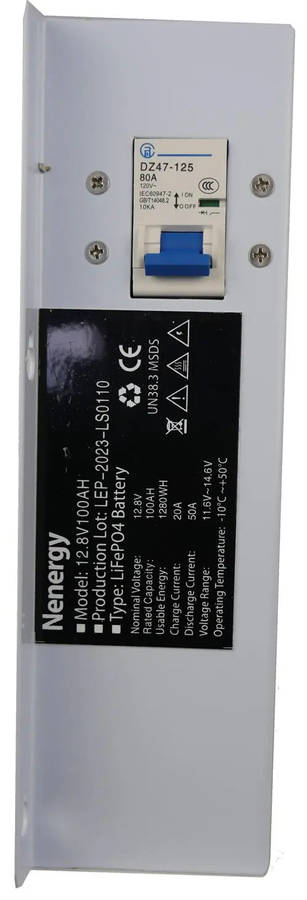

• Protection: Electronic Circuit Breaker, Voltage Protection, Current Limiting
• Dimensions (LxWxH): 72x7x25cm
• Weight: Approx.9.5kg

6 Months Repair Warranty

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
