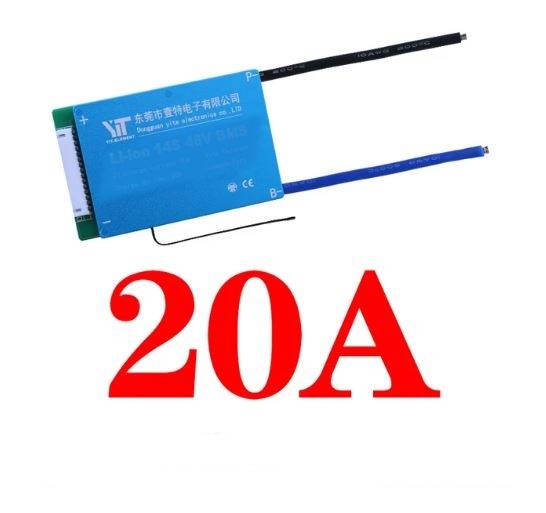

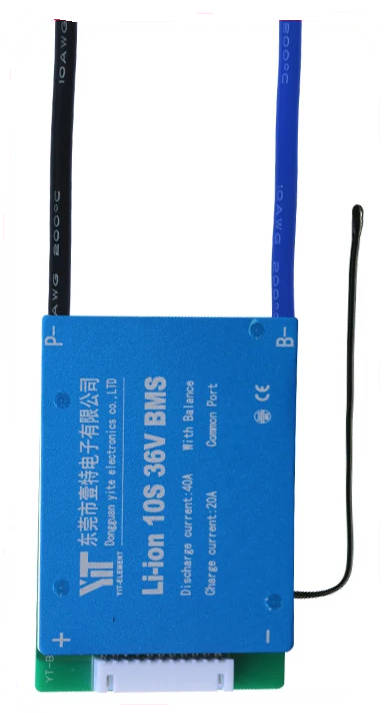

Lithium Ion Battery BMS Protection and Balanced Board for 3.7V Cells 10S 36V 20A

Lithium Ion Battery BMS Protection and Balanced Board 3.7V Cells 10S 36V 20A (10007044)

• Overcharge Protection: Ensures longevity with overcharge protection, safeguarding your batteries from damage.

• Short Circuit Protection: Prevents short circuits, maintaining the integrity of your battery pack.

• Temperature Sensor: Equipped with a temperature sensor for precise temperature control, enhancing safety.

• Balance Function: Includes a balance function to maintain cell voltage equality, extending battery life.



  *  Can be used but not limited to the above examples

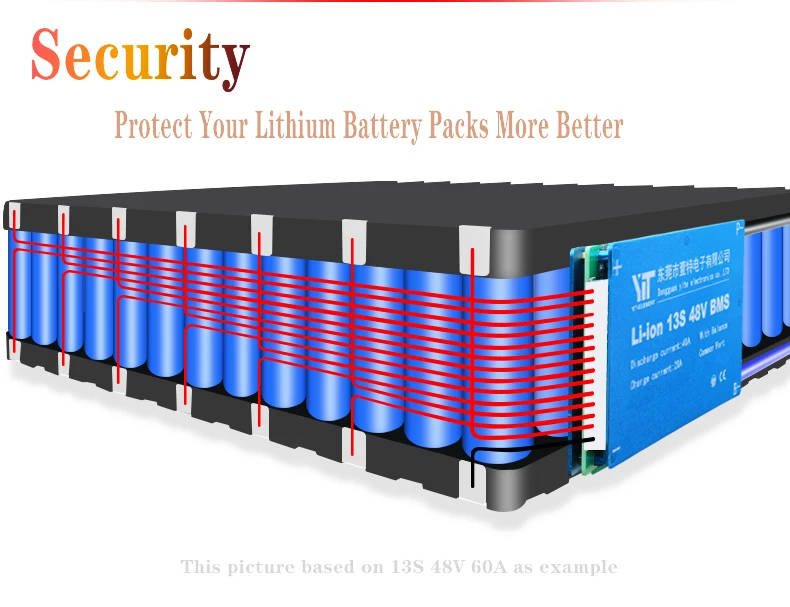

  This picture based on 13S 48V 60A as example

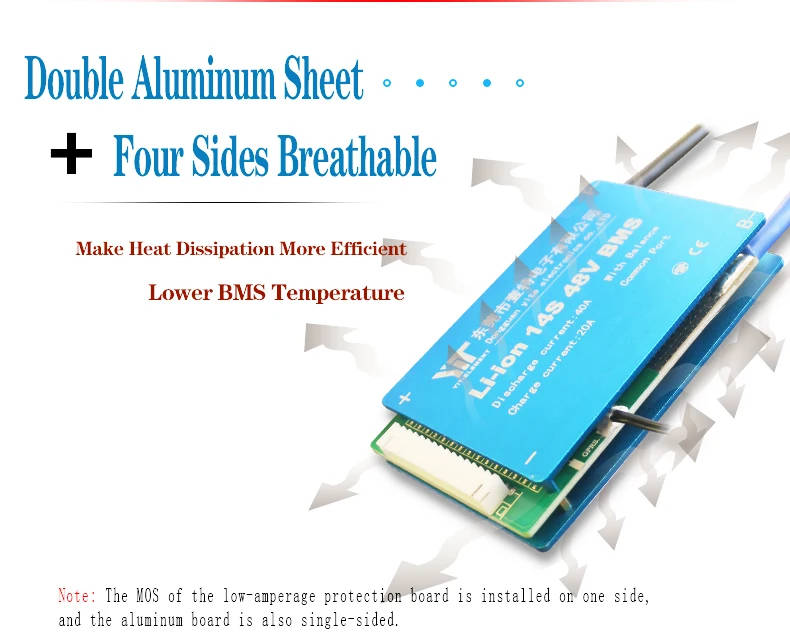

  Note: The MOS of the low-amperage protection board is installed on one side, and the aluminum board is also single-sided.

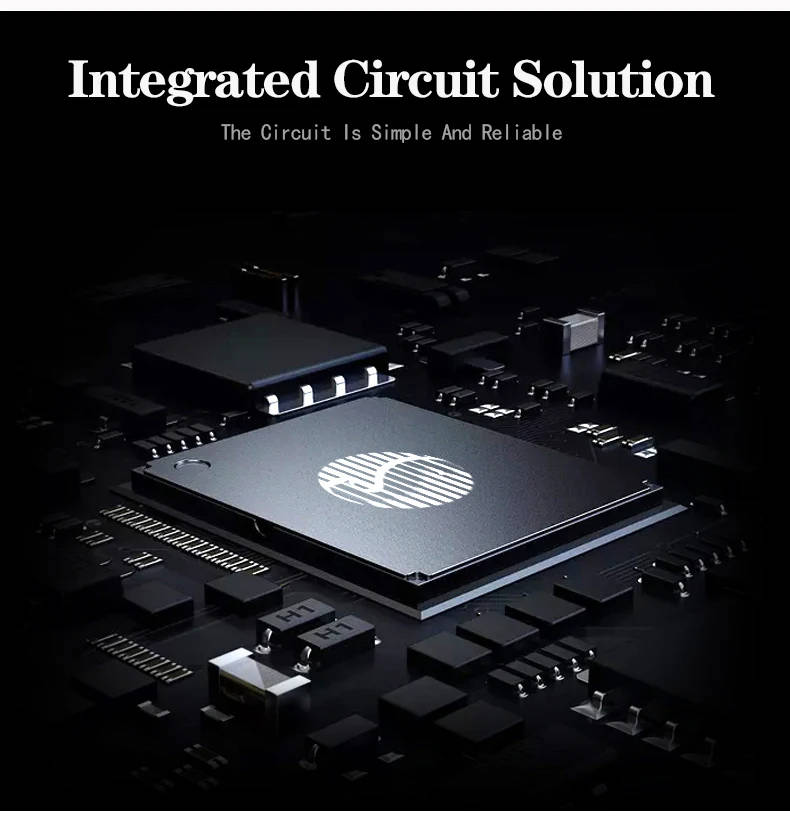

  Integrated Circuit Solution

  The protection board responds accurately and sensitively, which has more advantages than traditional solutions, saves circuit space, achieve the disconnection protection function.

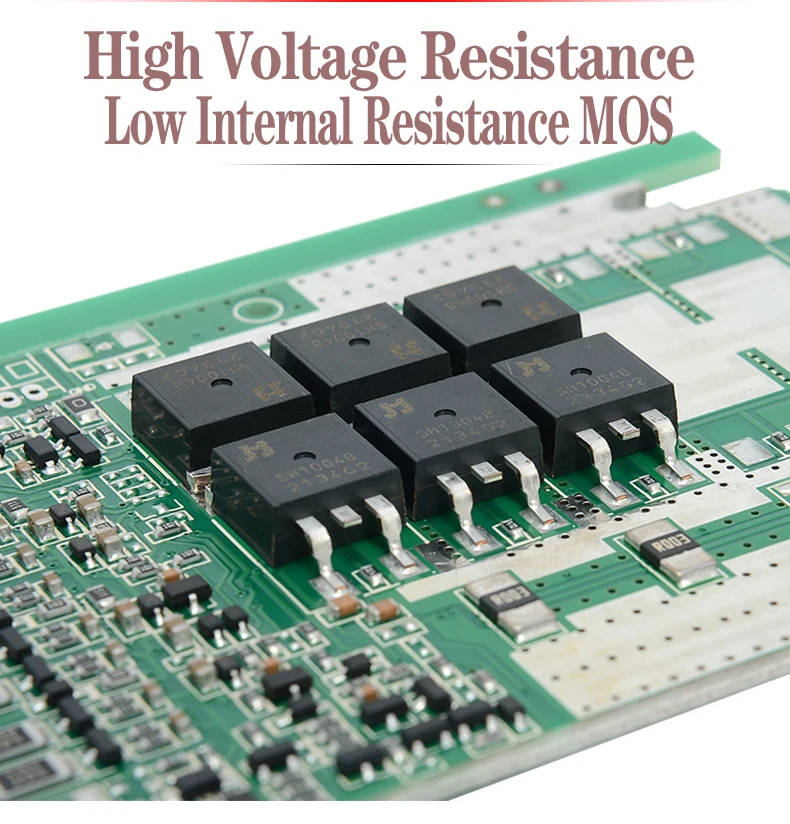

  New Class A MOS

  Use the high quality MOS can ensure product quality, low internal resistance during discharge, and low temperature rise during long-term discharge, without affecting the output of the battery, making the control safer.

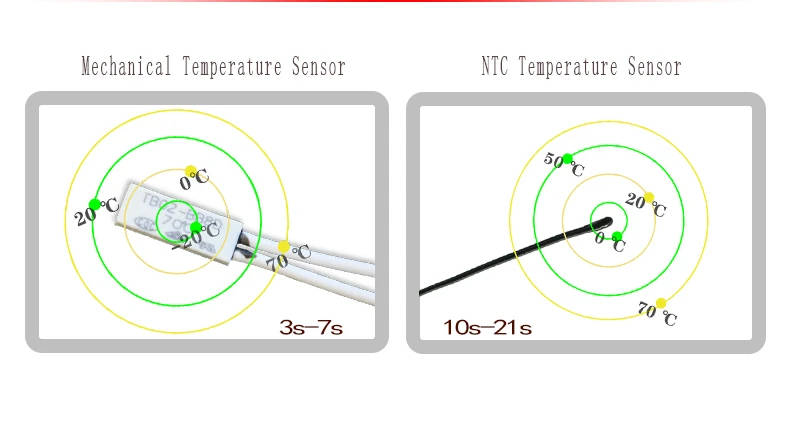

  Temperature protection

  The 3S-7S is equipped with a mechanical temperature sensor, and the 8S-24S is equipped with NTC temperature control to achieve functions such as charging temperature protection and discharge temperature protection, effectively improving the safety of battery use, and solving the potential safety hazards caused by thermal runaway of batteries.


  Wire:

  safe and reliable

  strong flame retardancy and good flexibility

  good for wiring at various angles

  Note: The MOS of the low-amperage protection board is installed on one side, and there isn't the aluminum heat sink 2.
