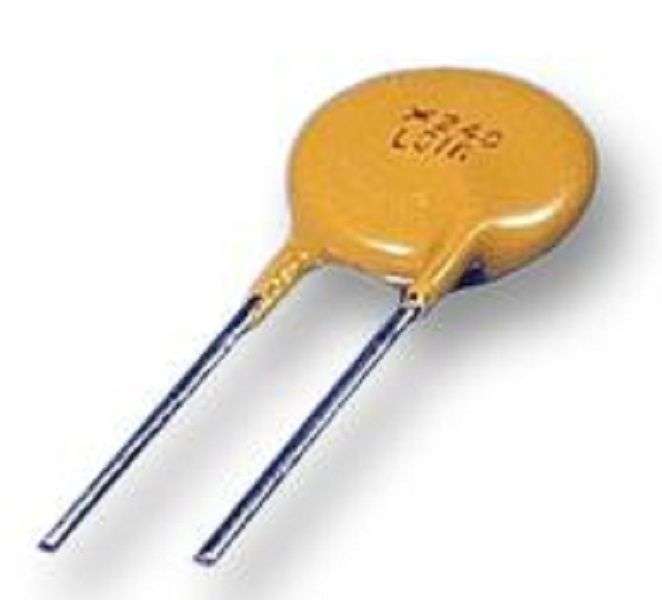

Littelfuse (LVR005NK) Resettable Fuse, 50 mA, 120 mA, 10 s, Round

Product InformationThermistor Mounting: Through HoleProduct Range: PolySwitch LVRVoltage Rating: 240VACHolding Current: 50mATripping Current: 120mATime to Trip: 10sFuse Shape: RoundCurrent Rating Max: 1ALead Spacing: 5.8mmDiameter: 6.9mmLength: -Thickness: 4.6mmHeight: 12.1mmOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct OverviewThe LVR005NK is a PolySwitch Resettable Device helps in protecting electricmotors and transformers used in commercial and home appliances from damagecaused by mechanical overloads, overheating, stall, lost neutral and otherpotentially harmful conditions. The LVR line-voltage product line of polymericpositive temperature coefficient (PPTC) devices includes components that arerated for line voltages of 120VAC and 240VAC, for up to 2A of operating currentat 20°C. They help protect against damage caused by both over current surges andover temperature faults. They also offer low resistance and are compatibly sizedwith fuse solutions. The PolySwitch LVR device resettable functionality andlatching attributes make them a reliable, cost-effective circuit protectionsolution for both intermittent- and continuous-operation motor applications.Their low resistance, fast time-to-trip and low profile help circuit designersprovide a safe and dependable product.Compatible with high-volume electronics assemblyAssist in meeting regulatory requirementsHold current at 0.05ATrip current at 0.12ARadial constructionUL94V-0 FlammabilityApplicationsIndustrial, Medical, Test & Measurement, Audio, Lighting, Communications &Networking, Security
