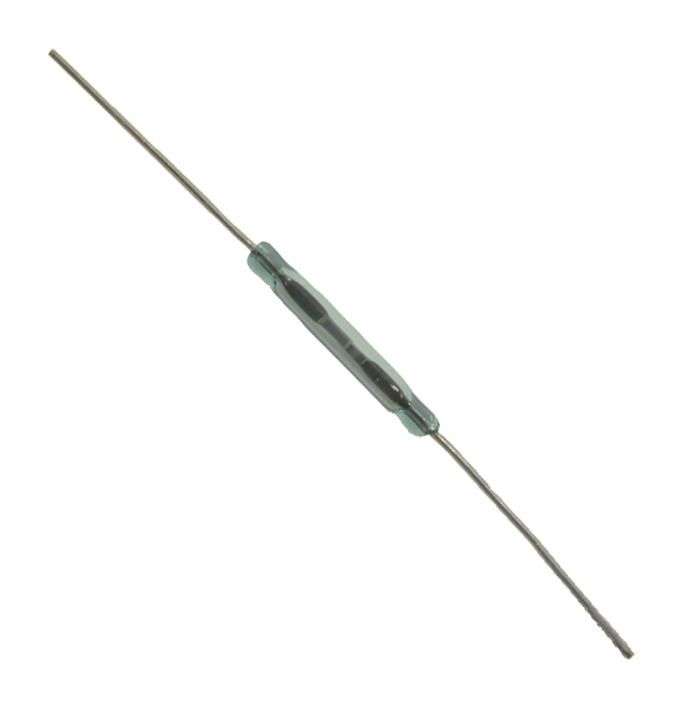

Littelfuse (MDSR-7-10-25) Reed Switch, MDSR-7 Series, SPST-NO

Reed Switch, MDSR-7 Series, SPST-NO, Through Hole, 800 mA, 200 VDC, 10 WProduct InformationProduct Range: MDSR-7 SeriesContact Configuration: SPST-NOSwitch Mounting: Through HoleContact Current Max: 800mASwitching Voltage Max: 200VDCSwitching Power Max: 10WContact Resistance Max: 0.1ohmOperate AT Min: 10ATOperate AT Max: 25ATProduct OverviewThe MDSR-7-10-25 is a single-pole single-throw (SPST) Subminiature Reed Switchwith glass envelope, NO contact, UL recognized and capable of switching 200VDCat 10W. The MDSR-7 series switch has hermetically sealed switch contacts are noteffected by and have no effect on their external environment.Low space requirementZero operating power required for contact closureFit and forget durabilityApplicationsIndustrial, Sensing & Instrumentation, Security, Communications & Networking
