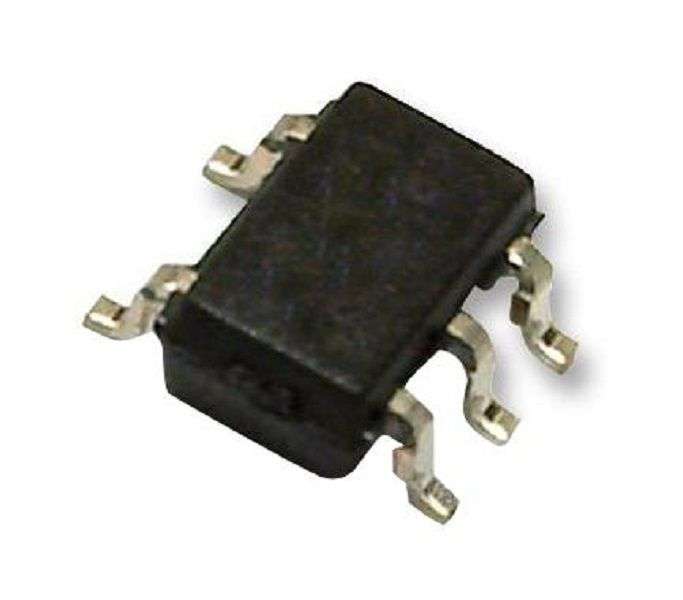

Littelfuse (SP3003-02JTG) ESD Protection Device, TVS, 15V, SC-70, 5 Pins

ESD Protection Device, TVS, 15V, SC-70, 5 Pins, 6V, SP300Product InformationClamping Voltage Vc Max: 15VDiode Case Style: SC-70No. of Pins: 5PinsOperating Voltage: 6VProduct Range: SP300Product OverviewThe SP3003-02JTG is a 5-pin TVS Diode Array with matte tin-plated copper alloyterminals and moulded epoxy body. The SP3003 has ultra low capacitancerail-to-rail diodes with an additional Zener diode fabricated in a proprietarysilicon avalanche technology to protect each I/O pin providing a high level ofprotection for electronic equipment that may experience destructiveelectrostatic discharges (ESD). This robust diodes can safely absorb repetitiveESD strikes at the maximum level specified in the IEC 61000-4-2 internationalstandard (level 4, ±8kV contact discharge) without performance degradation.Their very low loading capacitance also makes them ideal for protecting highspeed signal pins such as HDMI, DVI, USB2.0 and IEEE 1394.2.5A Peak current0.5µA at 5V Reverse leakage current0.35pF CapacitanceGreen productUL94V-0 Flammability ratingApplicationsComputers & Computer Peripherals, Consumer Electronics, Communications &Networking, Test & Measurement, Medical
