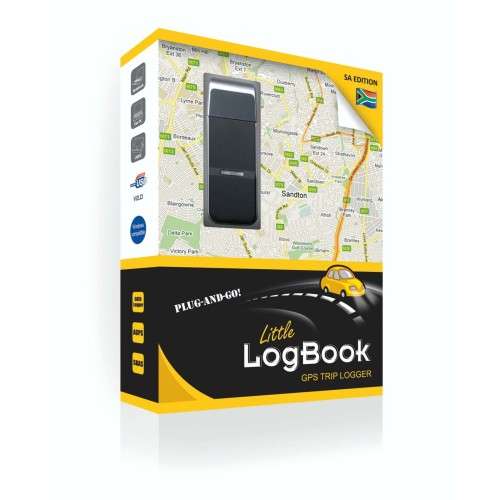

Little LogBook Trip Logger

Little LogBook Trip Logger

Whether you are claiming business mileage from the Taxman, billing clients for travel expenses, keeping tabs on your employees and business vehicles or a combination of all of these, the Little LogBook fits the bill perfectly.

Plug the Little LogBook into the cigarette lighter of your vehicle using the USB power adapter supplied – you can also plug it into the USB port in your vehicle if it has one.

Wait a few seconds for the device to acquire a satellite fix, then off you go — your trips are now being logged.

The small GPS device, no larger than a flash drive, does all the hard work of collecting your trips as you drive. The dual USB charger allows you to use/charge your other devices while your Little LogBook is in use.

Simply unplug the Little LogBook from your vehicle then plug it into the USB port of your PC – no additional cables required! The user-friendly yet powerful software enables you to download and manage your trips at the click of a mouse.

PRODUCT DETAILS / SPECIFICATIONS

- 48 parallel channels, L1 C/A code

- Accuracy: position 2.5m CEP, Velocity 0.1m/sec

- Start up times (average): 5 sec hot start, 40 sec cold start

- Signal reacquisition: 1s

- Superior sensitivity: -147dBm acquisition, -163dBm tracking

- Update Rate: 1 Hz standard

- Dynamics: 4G (39.2 m/sec2)

- GPS protocol: NMEA +0183 – GPGGA, GPGLL, GPGSA, GPGSV, GPRMC, GPVTG, GPZDA at 4800/9600/19200/38400 baud, 8, N, 1

- DATUM: WGS84 (User Definable)

- LED indicator: Green (See LED behavior section in this user guide)

- Input Voltage: 5V, 1Amp DC

- Dimension: 72.25 mm (L) x 26.50 mm(W) x 9.75 mm (H)

- Support SAGPS

- SBAS (WAAS, EGNOS) support

- Records up to 210 Hours of Data

- 2MB flash memory for data logging, with 16 bytes binary data per record that stores up to 250K

- Start & stop locations can be renamed by user

- Time: +/- 50ns synchronized to GPS time

- Operation Limits: Altitude <18,000 m or Velocity < 515 m/s

- Operating Temperature: -40° to 85° Celsius; Humidity: 5% ~ 95%

- USB 2.0

- USB powered

- Power Consumption <42 mA (1Hz standard version)
