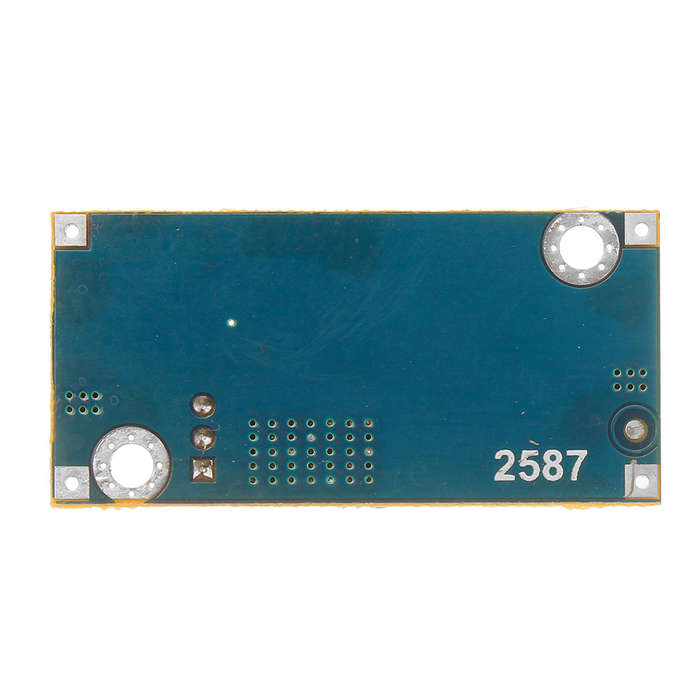

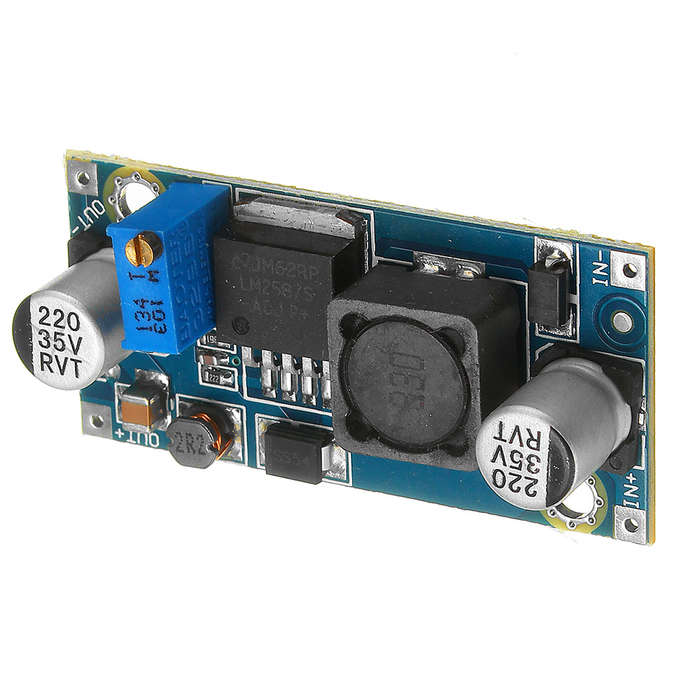

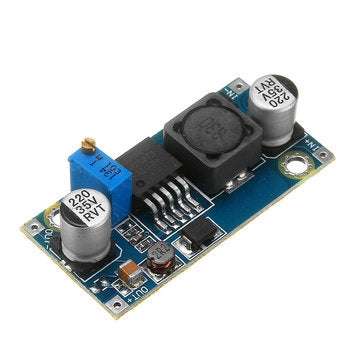

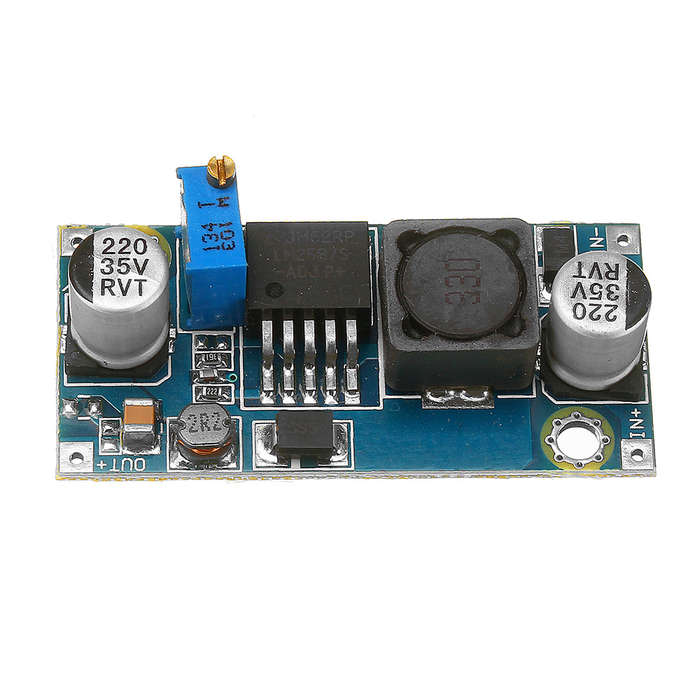

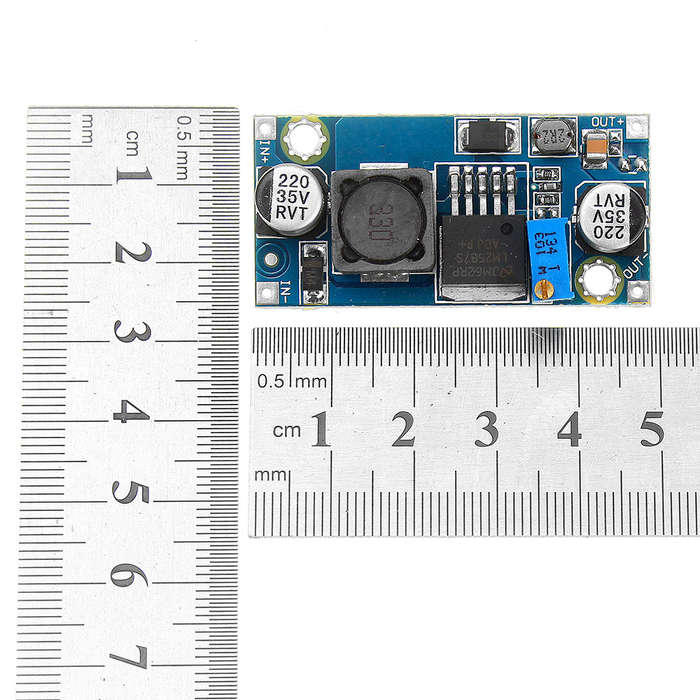

LM2587 DC DC Boost Converter 5A 3-30V Step Up to 4-35V Power Supply Module

New

20 available

R376.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4023

92.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654102361

Specifications:

1. Module properties: non-isolated step-up module(Boost)
2. Rectification: Non-Synchronous Rectification
3. Input voltage: DC 3-30V (Note: The boost module input voltage can not be higher than the output voltage,the output stable at the set value)
4. Output voltage: DC 4-35V
5. Output current: 5A MAX, (15mA unload)
6. Conversion efficiency: 92% (MAX)
7. Switching frequency: 100KHz
8. Output ripple: 50mV (MAX)
9. Load regulation: &pm; 0.5%
10. Voltage regulation: &pm; 0.5%
11. Operating temperature: -40 ﾣC to +85 ﾣC
12. Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease)

Package included:

1 x LM2587 Module
