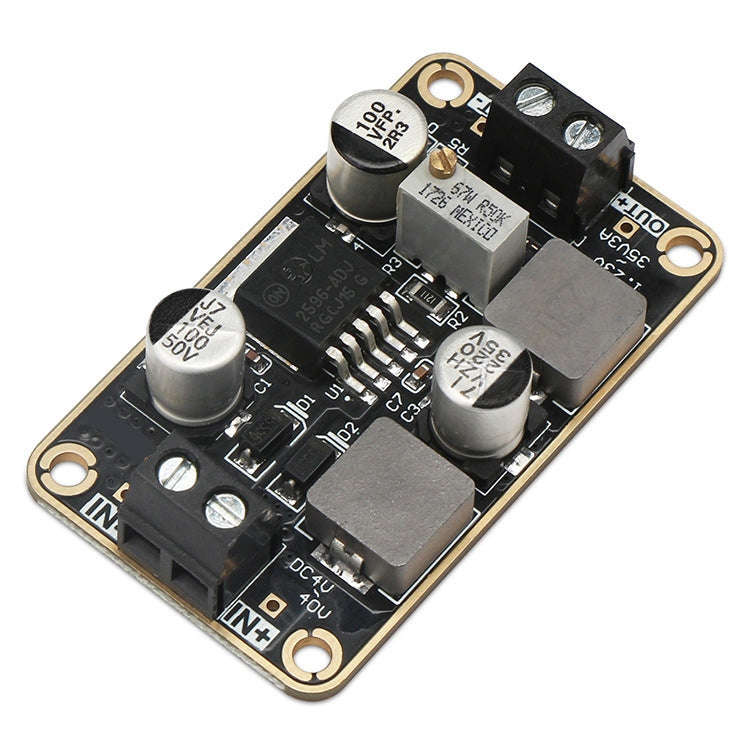

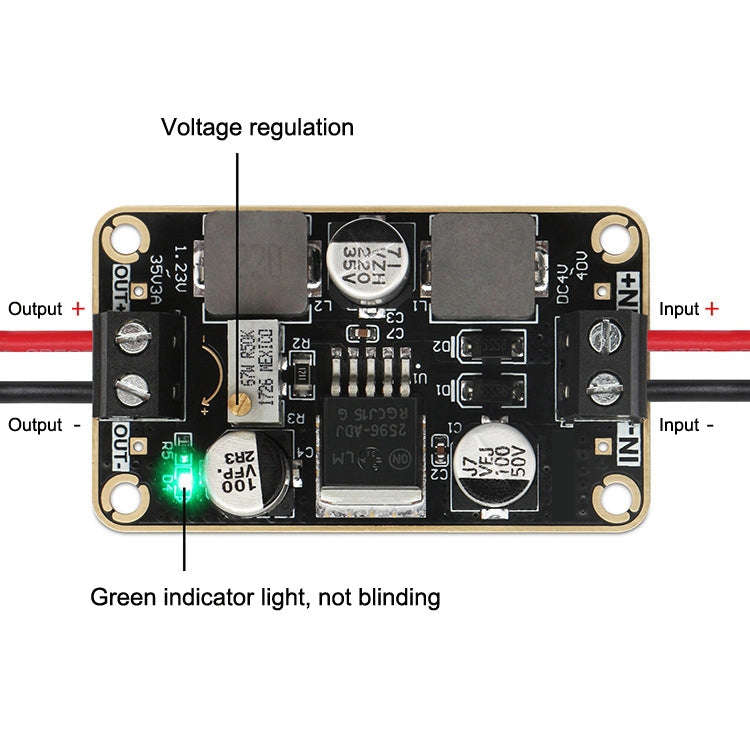

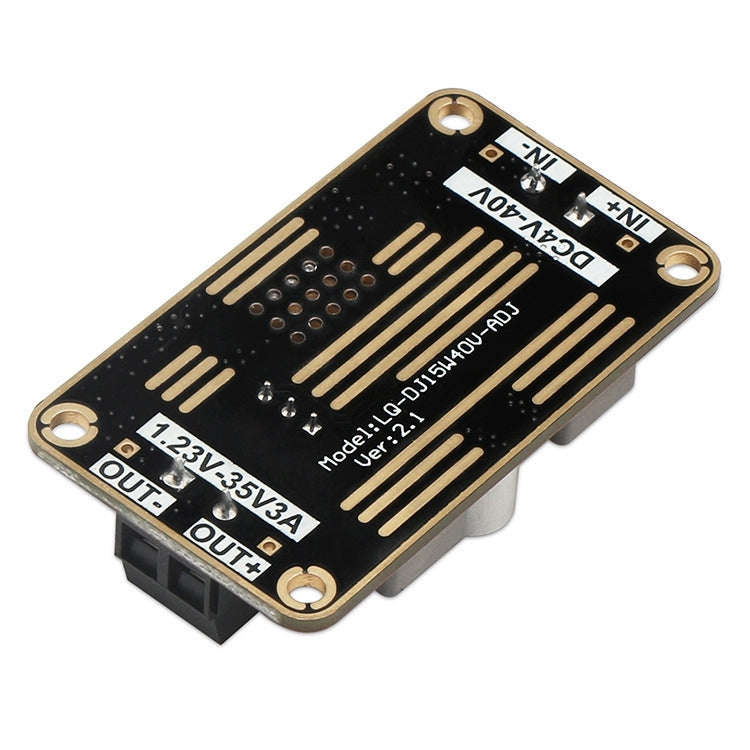

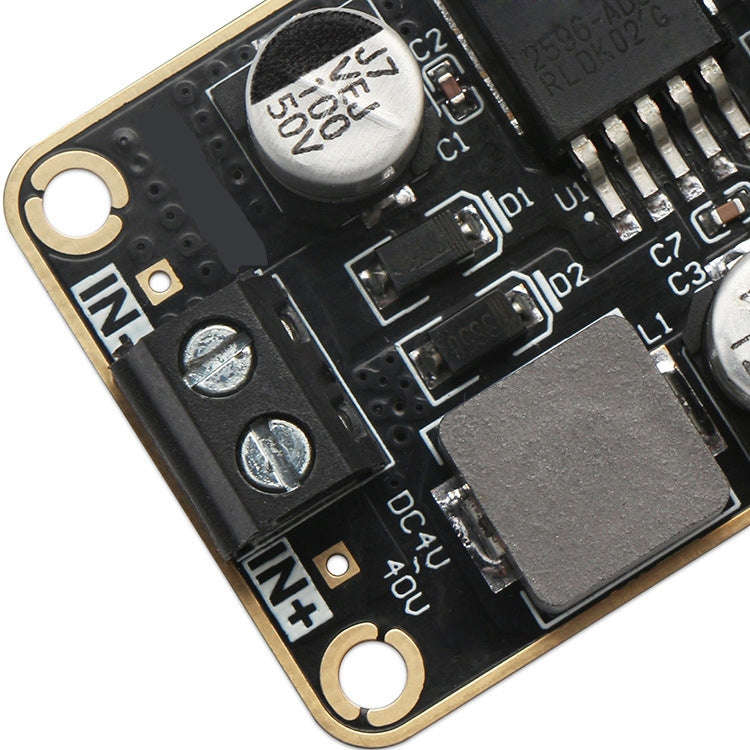

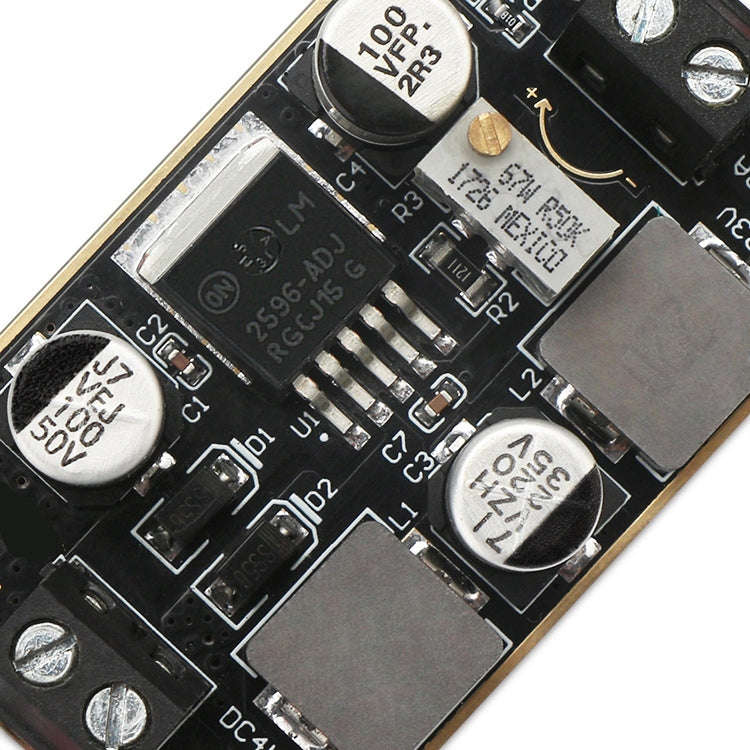

LM2596-ADJ DC-DC Adjustable Step-Down Power Module 4V-40V To 1.23-35V 3A Stereotype Board(As Show) LM2596-ADJ DC-DC Adjustable Step-Down Power Module 4V-40V To 1.23-35V 3A Stereotype Board(As Show) LM2596-ADJ DC-DC Adjustable Step-Down Power Module 4V-40V To 1.23-35V 3A Stereotype Board(As Show) LM2596-ADJ DC-DC Adjustable Step-Down Power Module 4V-40V To 1.23-35V 3A Stereotype Board(As Show) LM2596-ADJ DC-DC Adjustable Step-Down Power Module 4V-40V To 1.23-35V 3A Stereotype Board(As Show)
LM2596-ADJ DC-DC Adjustable Step-Down Power Module 4V-40V To 1.23-35V 3A Stereotype Board(As Show) LM2596-ADJ DC-DC Adjustable Step-Down Power Module 4V-40V To 1.23-35V 3A Stereotype Board(As Show) LM2596-ADJ DC-DC Adjustable Step-Down Power Module 4V-40V To 1.23-35V 3A Stereotype Board(As Show) LM2596-ADJ DC-DC Adjustable Step-Down Power Module 4V-40V To 1.23-35V 3A Stereotype Board(As Show) LM2596-ADJ DC-DC Adjustable Step-Down Power Module 4V-40V To 1.23-35V 3A Stereotype Board(As Show)

LM2596-ADJ DC-DC Adjustable Step-Down Power Module 4V-40V To 1.23-35V 3A Stereotype Board(As Show)

10 available / new
R403.61
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD0603269701A
Bob Shop ID
636105127

1. Stable operation at 3A at room temperature (test conditions 29°C, humidity 50%), if working for a long time it is recommended to add a heat sink

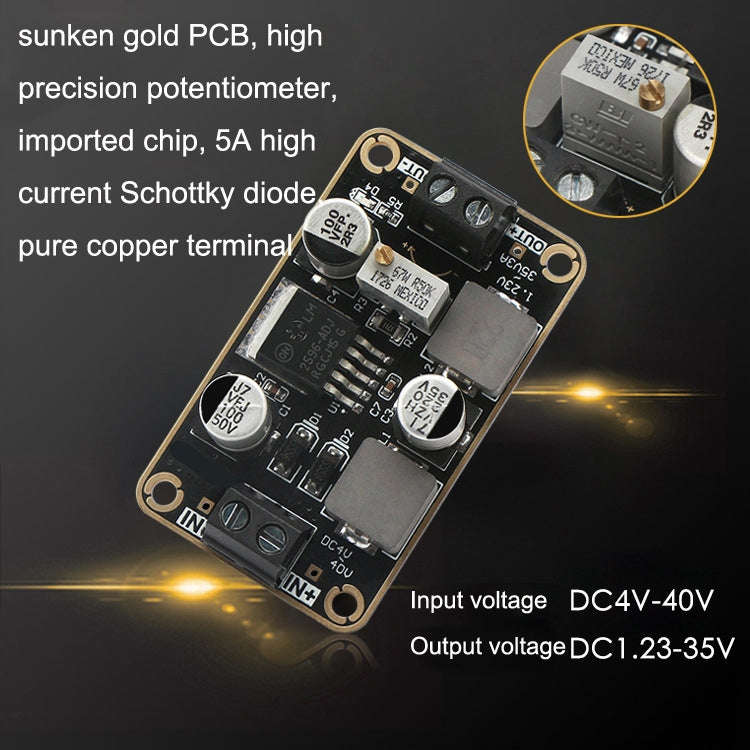

2. High Q high current shielded inductor, low ESR high capacity capacitor, sunken gold PCB
3. High precision potentiometer, imported chip, 5A high current Schottky diode, pure copper terminal
4. Input voltage: DC4-40V
5. Output voltage: DC1.23-35V
6. Output power: 15W
7. Breakdown voltage: over 45V input
8. Start-up voltage: 4V
9. Fault protection: reverse connection, undervoltage, overcurrent, overheat protection
10. Operating temperature: -40 to 85 degrees C
11. Output current: 3A
12. Output ripple: 4mV
13. No-load current: about 7mA

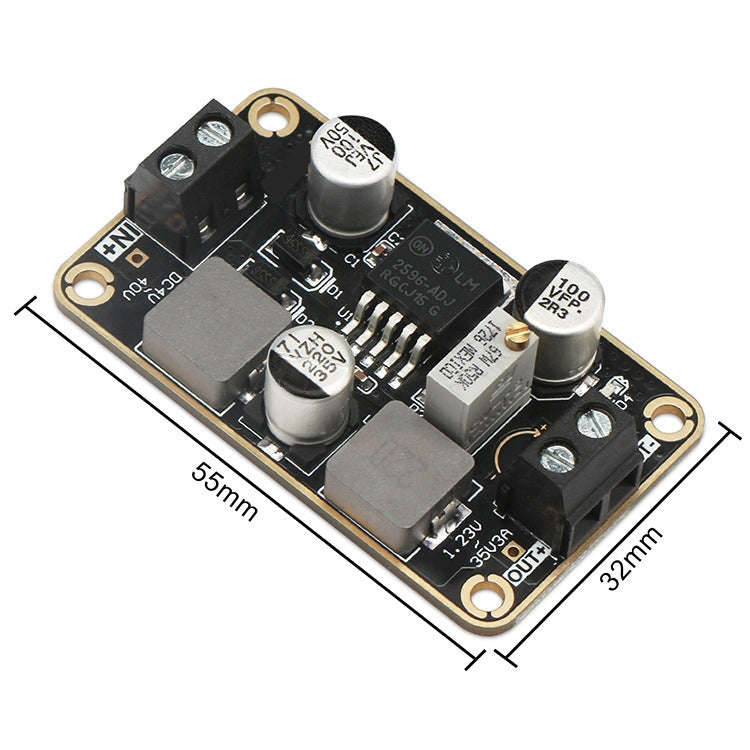

14. External dimensions: 55x32x13mm
15. Net weight: 20g
