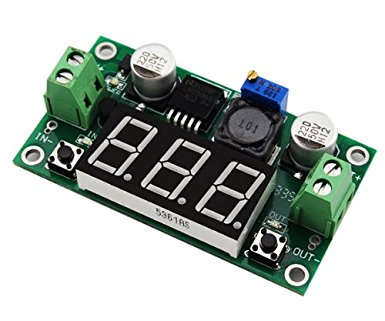

LM2596 DC Buck Step Down Voltage regulator with LED Display Module
Input voltage range: 4-40 v (40 v to limit the highest voltage).
Output voltage range:1.25V - 37V (decompression mode, input output must be greater than 2 V above).
Output current: 2 A continuous output.
Output power: the maximum 15 w.
Ripple frequency: 150 KHZ.
Grain wave peak: 100 mv.
Voltmeter precision: ± 5 .
Static power: 20 ma (and input voltage output voltage and digital tube color is closely related to the actual current will exist deviation).
Weight: 33g.
Size:7cm x 4cm.
With voltage display function, the displayed accuracy is ± 0.05V, range is 0 - 40V.( Note: in order to voltage display more accurate, please ensure that the input voltage is higher than 4V) .
Button to switch measurement of the input or output voltage,and LED indicates the current measurement of the input or output voltage;The LED tube can be turned off by another button.
Continuously adjustable output voltage range of 1.25V -37V, 4-40V input voltage range.The input voltage is at least high than the output voltage of 1.5V.
High efficiency, 150 kHz fixed frequency internal oscillator.
Thermal shutdown and current limit protection.
