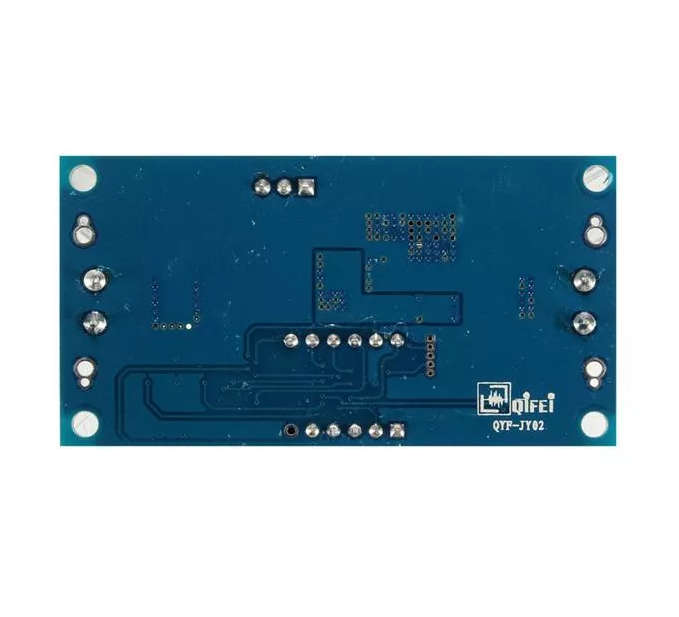

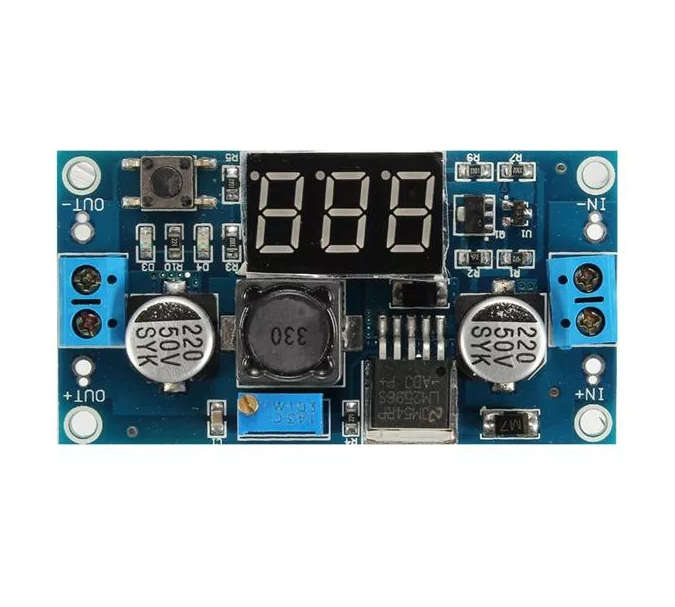

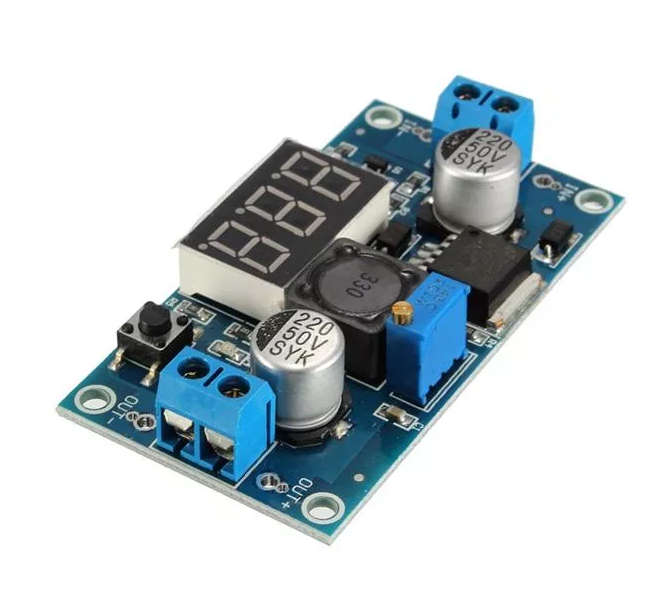

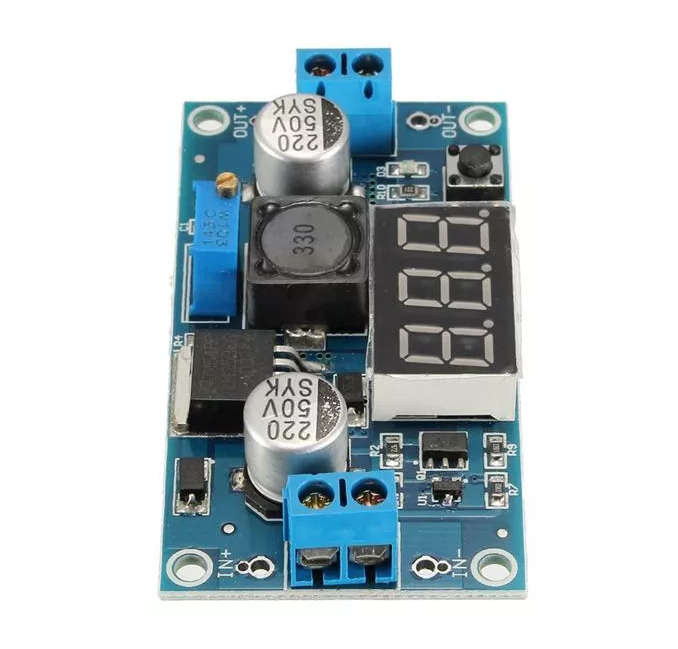

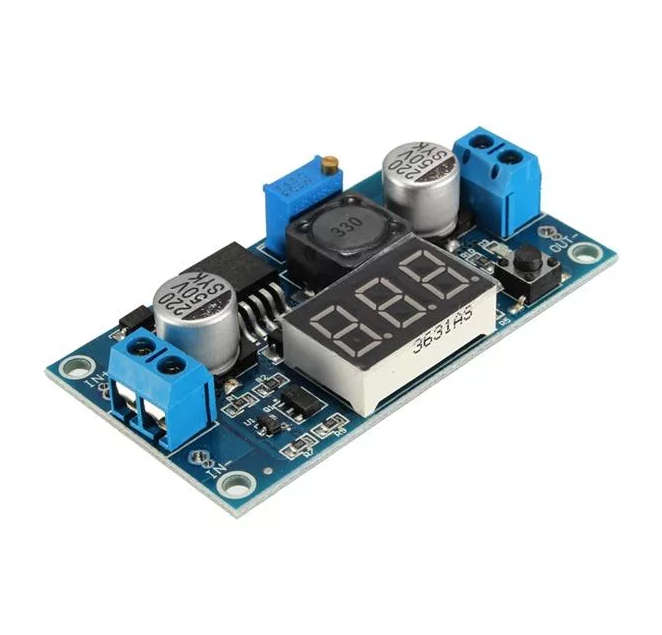

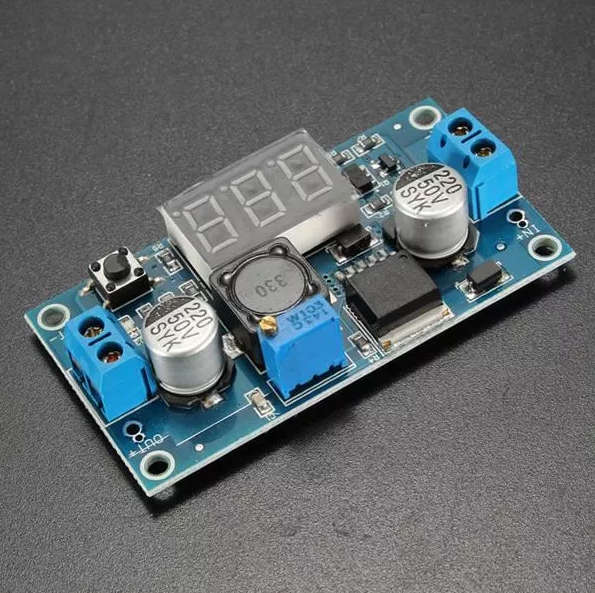

LM2596 DC-DC Adjustable Regulator Electronics Module With Display Screen Electronic Module | Elec...

New 26 available
R48.30
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
C17-SD
Bob Shop ID
647556224

Description

LM2596 DC to DC converter to step down voltages, the output voltage is adjustable with potentiometer and there is a 7 segment display to display either the input or output voltage. We also offer the controller without a display;

Specifications

Input voltage:4.5-35V
Output voltage:1.5-35V(Adjustable)
Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)

Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Operating Temperature: Industrial grade (-40  to +85 ) (output power 10W or less)
Voltage Regulation: ± 2.5%

Dimensions: 65mm X 39mm
