LM2596 DC-DC Adjustable Regulator Module With Display

170 were available / new
R69.00
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
C17
Bob Shop ID
417743204

Description

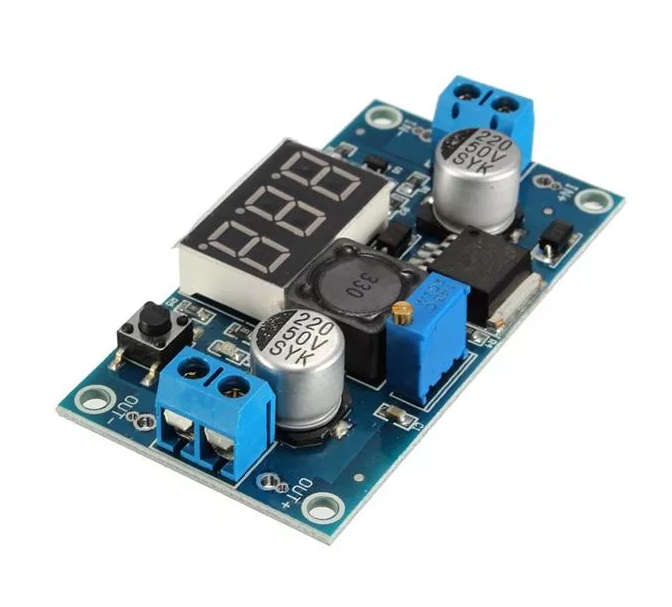

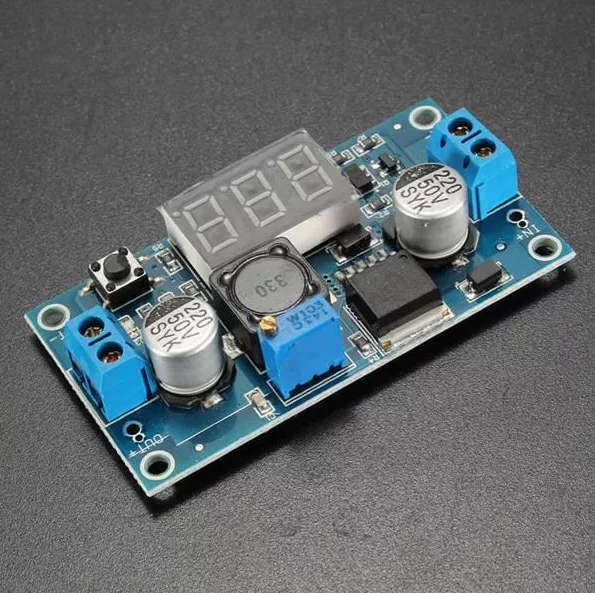

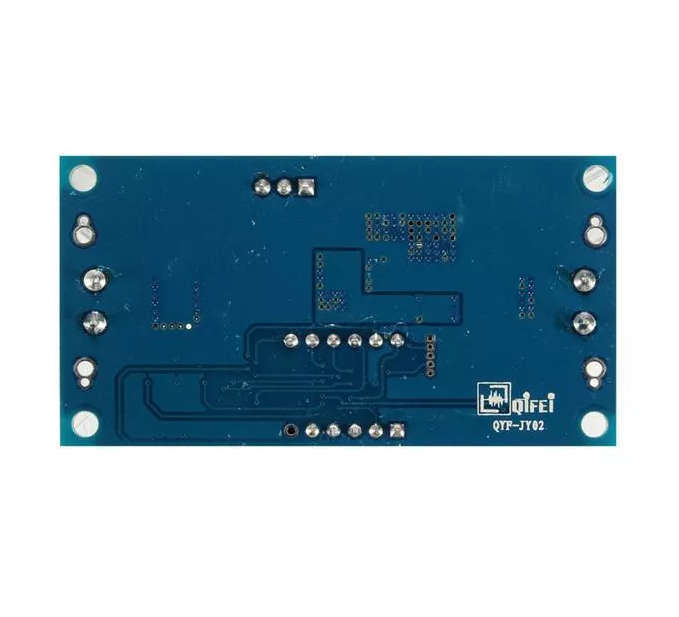

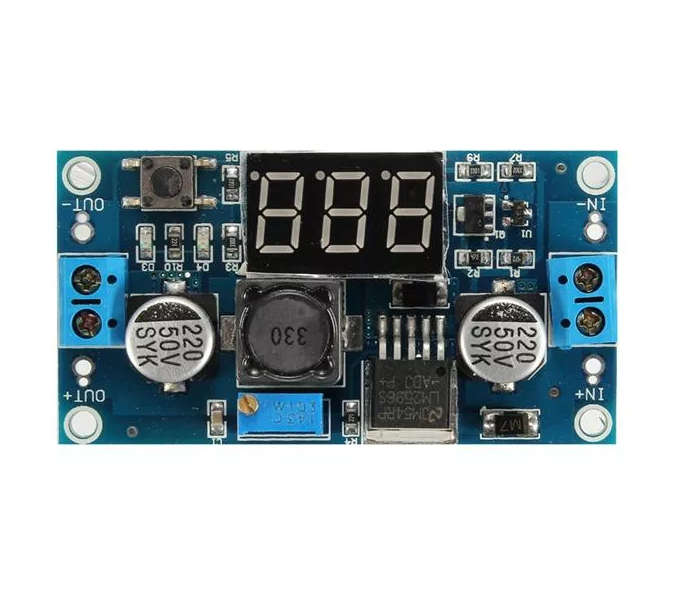

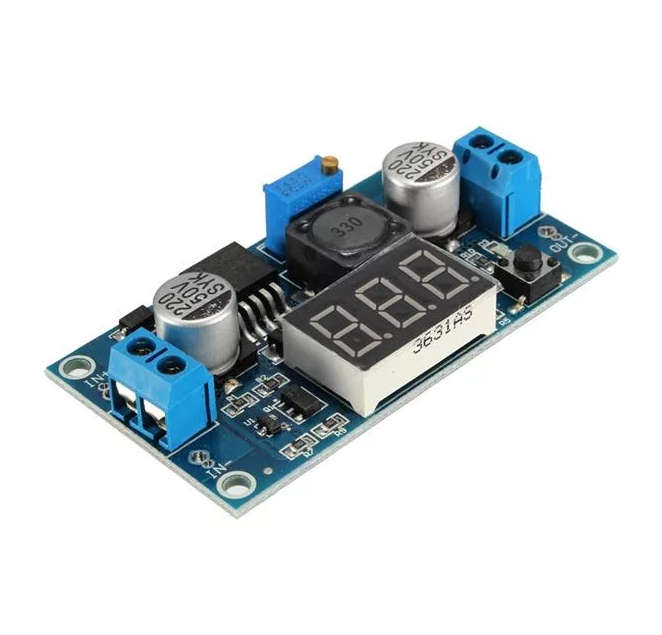

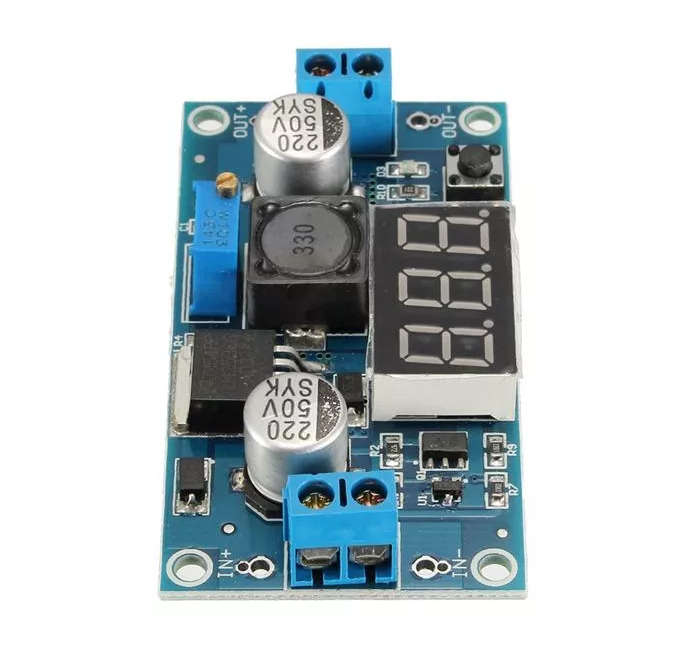

LM2596 DC to DC converter to step down voltages, the output voltage is adjustable with potentiometer and there is a 7 segment display to display either the input or output voltage. We also offer the controller without a display;

Specifications

Input voltage:4.5-35V
Output voltage:1.5-35V(Adjustable)
Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)

Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Operating Temperature: Industrial grade (-40  to +85 ) (output power 10W or less)
Voltage Regulation: 2.5%

Dimensions: 65mm X 39mm
