LM2596 DC-DC Adjustable Step Down Module**LOCAL STOCK** LM2596 DC-DC Adjustable Step Down Module**LOCAL STOCK**
LM2596 DC-DC Adjustable Step Down Module**LOCAL STOCK** LM2596 DC-DC Adjustable Step Down Module**LOCAL STOCK**
Sold

LM2596 DC-DC Adjustable Step Down Module**LOCAL STOCK**

New 10 were available
Indicative market price: R26.00
R26.00
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 5 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
SD-MDL
Bob Shop ID
312742819

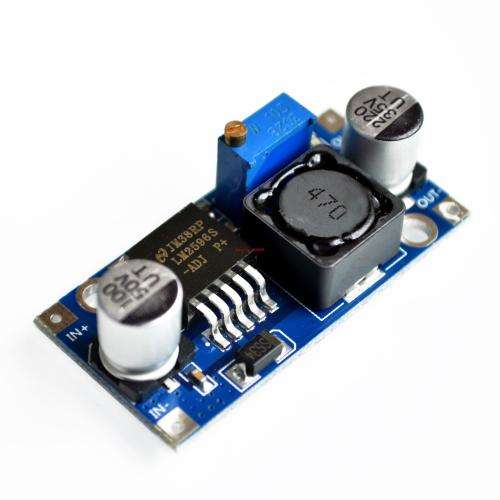

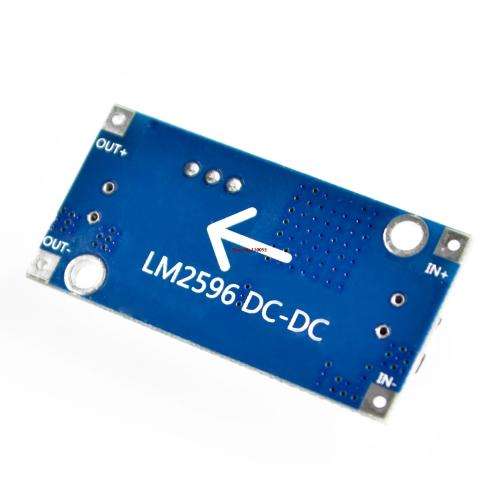

LM2596 DC-DC Adjustable Step Down Module



Description:

Input voltage: 4.5-35V
Output voltage: 1.5-35V(Adjustable)
Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)


Features:

Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short Circuit Protection: Current limiting, since the recovery
Operating Temperature: Industrial grade (-40  to +85 ) (output power 10W or less)

Full load Temperature rise: 40
Load Regulation: ± 0.5%
Voltage Regulation: ± 2.5%
Dynamic Response speed: 5% 200uS
Dimension: 43*20*14mm (L*W*H)


Package Included:

1 x LM2596 DC-DC Step-down Module



NOTE:This can't be used to step up Voltage
