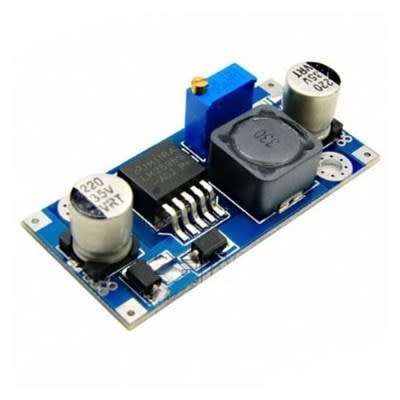

-This Power DC-DC module comes with high quality design, it can help you to easily get a DC voltage value you want.
-High efficiency ,Low calorific value,
-Fast & Convenient device for you to carry out electric application!
Specification :
-Model : LM2596
-Input voltage: 4V - 35V
-Output Voltage: 1.23V - 30V (Adjustable)
-Output Current : 3A (max.)
-Conversion Efficiency : 92% (max.)
-Switching Frequency : 150KHz
-Rectifier : Non-Synchronous Rectification
-Module Type : Non-isolated Step-down Module (BUCK)
-Short circuit protection: current limiting, since the recovery
-Operating Temperature: -40 to +85
-Load Regulation : ± 0.5%
-Voltage Regulation : ± 2.5%
-Size(L x W x H) : 48mm x 23mm x 14mm
-Weight : 13g
