LM2596 DC-DC Verstellbar Step Down-Schaltregler Power Supply Module

LM2596 DC-DC Verstellbar Step Down-Schaltregler Power Supply Module

New 20 available
R355.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
651232358
DC-DC Converter Buck Voltage LM2596 Low Ripple Step Down Module Power Supply is available now from our US warehouse

Free shipping to US and UK in 3-6 business days
ship to Canada, Brazil in 7-10 days in US warehouse
ship to European countries in 7-10 days in UK warehouse

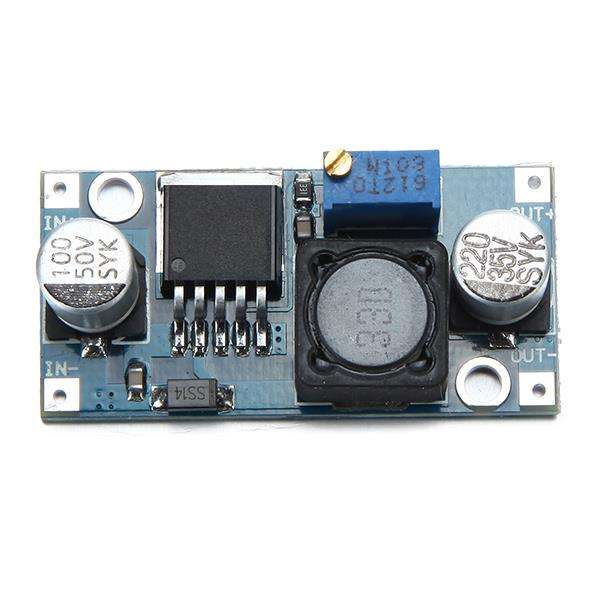

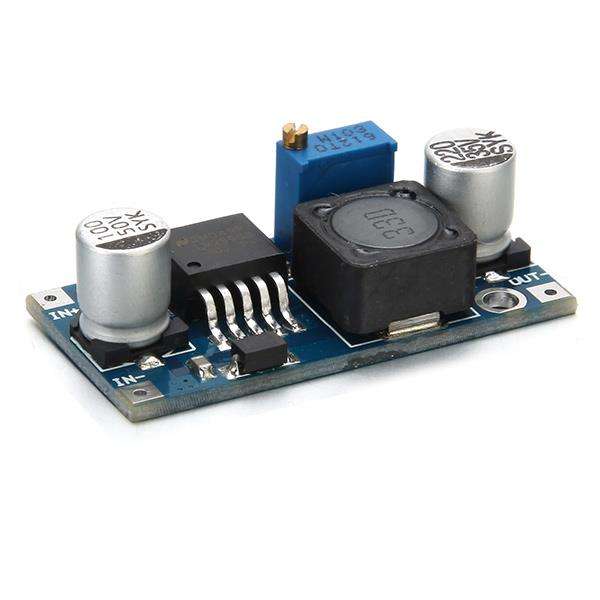

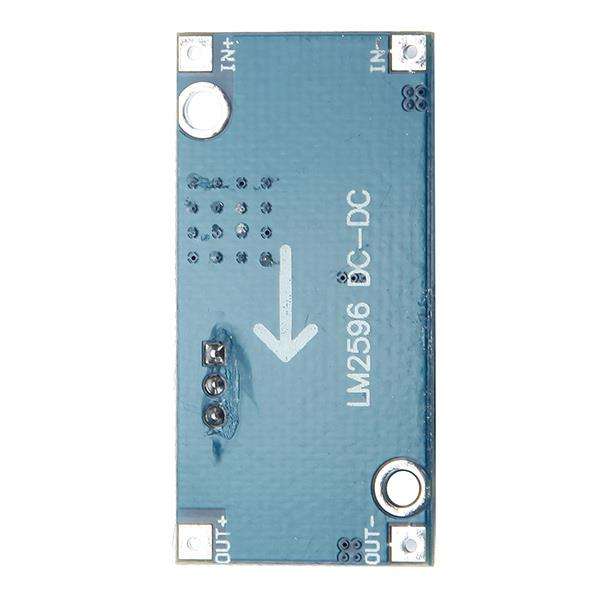

LM2596 DC-DC Verstellbar Step-Down-Schaltregler Power Supply Module

Description:


Input voltage:4.5-35V
Output voltage:1.5-35V(Adjustable)
Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)

Features:

Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short Circuit Protection: Current limiting, since the recovery
Operating Temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
Full load Temperature rise: 40
Load Regulation: ± 0.5%
Voltage Regulation: ± 2.5%
Dynamic Response speed: 5% 200uS
Dimension: 43*20*14mm (L*W*H)

Package Included:

1x LM2596 DC-DC Step-down Module





, , ,
