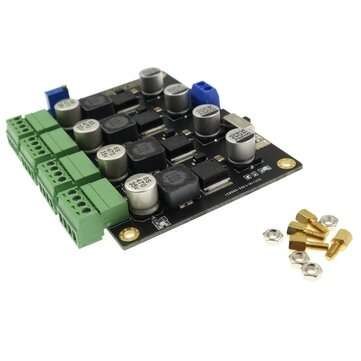

LM2596 Multi-channel Switching Power Supply Module 3.3V/5V/12V/ADJ Adjustable Voltage Output

Description:
LM2596 is a switching voltage regulator of a step-down power management monolithic integrated circuit, which can output a drive current of 3A and has good linearity and load regulation characteristics. This module integrates 4 LM2596-ADJ, which can output four groups of independent adjustable power supplies. The module is laid out and wired in strict accordance with the design specifications of the power supply circuit; the materials are generous, and the chip aluminum electrolytic capacitors, high-Q high-power inductors are used to ensure the output voltage Stable, the window treatment on the back of the PCB is more conducive to the heat dissipation of the LM2596 chip. Suitable for student competition modules and personal project development.
Specification:
Module Name: LM2596 Multi-Switch Power Supply Module size: 100 x 68mm Power supply range: 5-40V Special Note: The output voltage of the module ADJ is generally adjustable within a range of about 1V from the supply voltage. The maximum current of the module is 3A, and the total current does not exceed 5A.
Package included:
1 x LM2596 multi-channel switching power supply module
