LM2596 Switching Power Supply Module 3.3V 5V 12V ADJ Adjustable Voltage Output 3A High Efficiency Lo

Product Introduction:

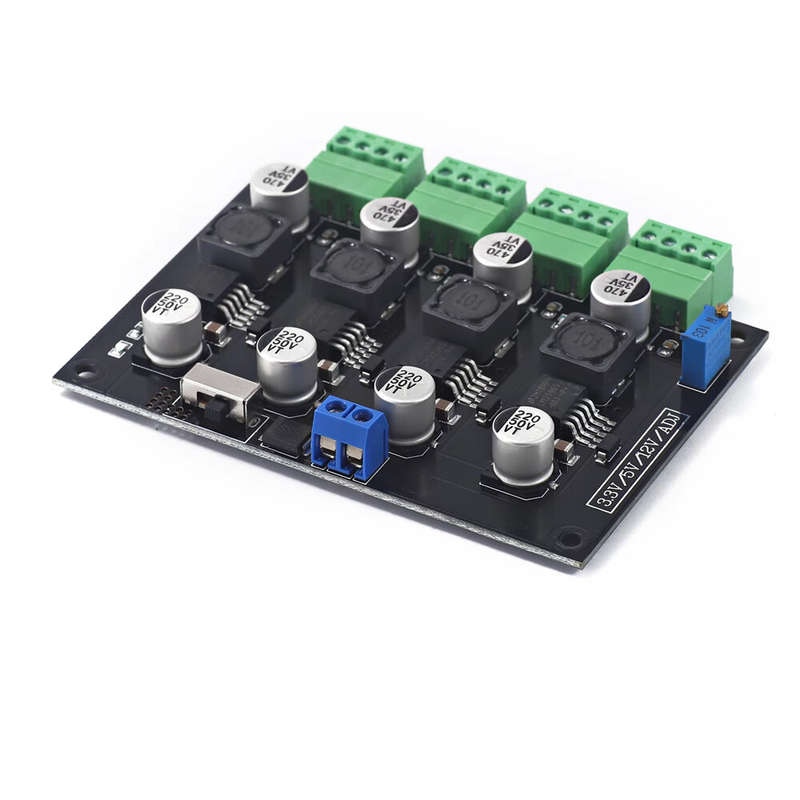

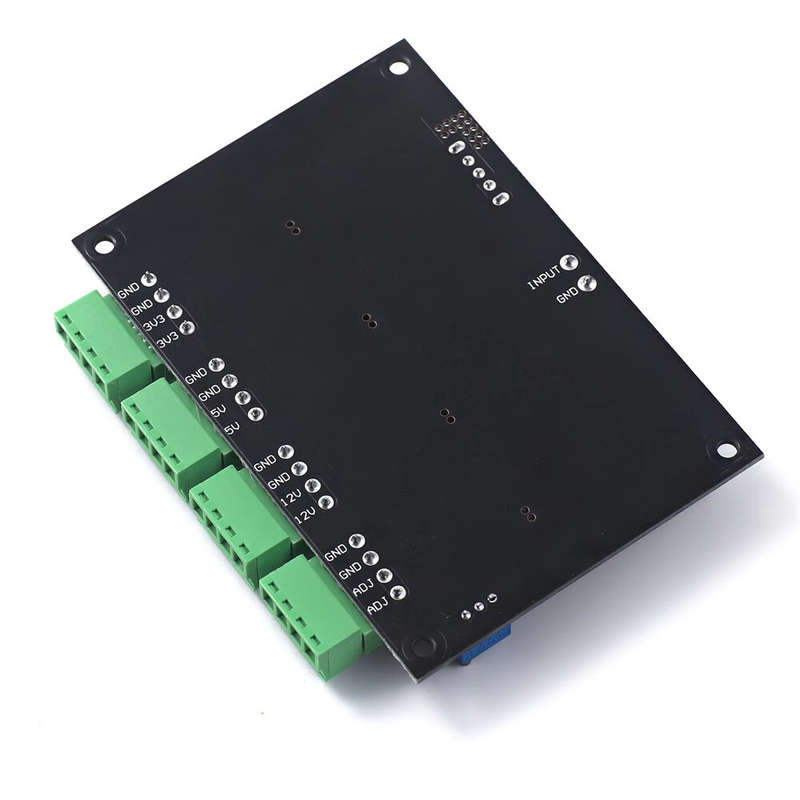

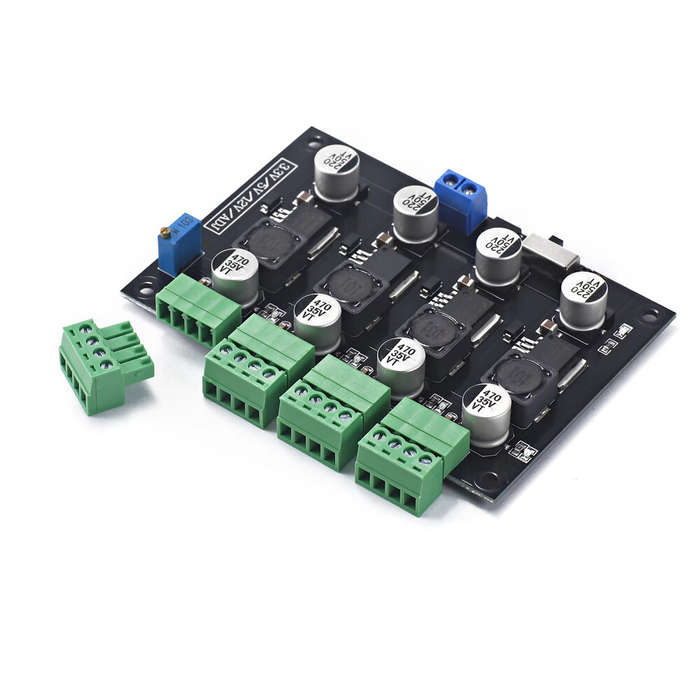

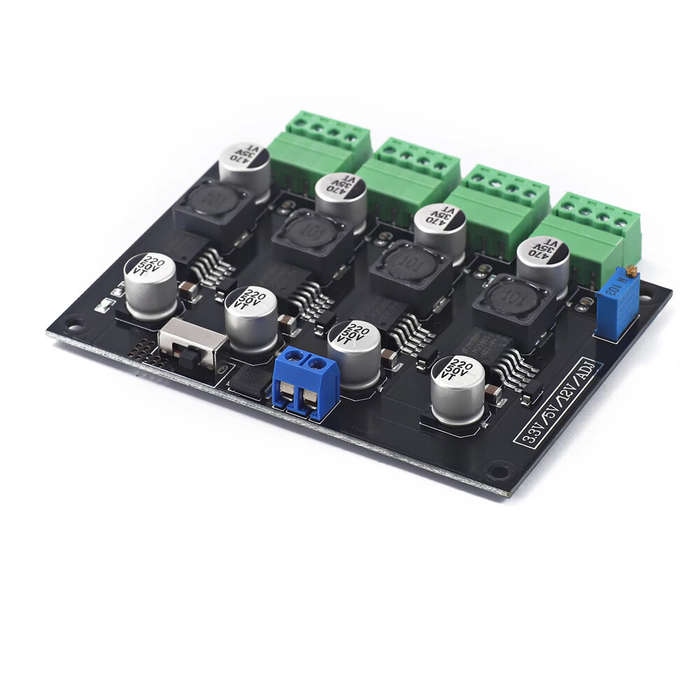

LM2596 is a step-down power management monolithic integrated circuit switching voltage regulator, capable of outputting 3A drive current, while having good linearity and load regulation characteristics. This module integrates 4 LM2596, which can output four sets of power supplies of 3.3V, 5V, 12V and ADJ at the same time. The module is laid out and wired in strict accordance with the design specifications of the power supply circuit the materials are generous, using SMD aluminum electrolytic capacitors, high-Q high-power inductors In order to ensure the stable output voltage, the window treatment on the back of the PCB board is more conducive to the heat dissipation of the LM2596 chip.

It is suitable for the power demand of students in learning competitions and company or personal project development
