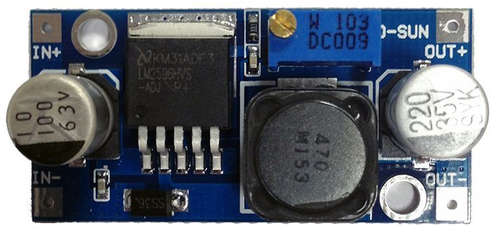

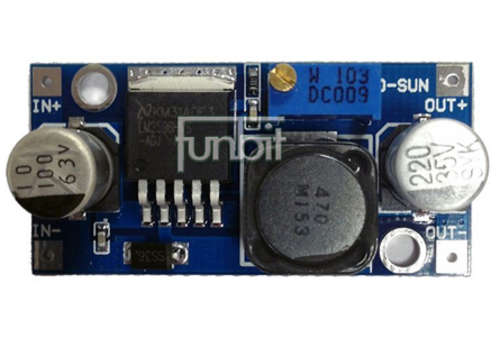

LM2596HVS DC-DC ADJUSTABLE STEP DOWN CONVERTER MODULE
Product information
This module uses the high voltage version of the well-known LM2596S voltage switching regulator. Just connect your DC voltage to IN+ and IN-, adjust the potentiometer to meet your output voltage requirements and that is it.
NOTE! IN- and OUT- are connected together on the board, so they are all GND.
Specifications
Input voltage: 4. 5 - 53V
Output voltage: 3 - 40V (adj.)
Output Ripple: <30mV
Output current: 3A max. (Please add a heatsink if the output power is greater than 10W)
Conversion efficiency: Up to 92%
Switching frequency: 150 KHz
Module Properties: Non-isolated step-down module
Short circuit protection: current limiting
Operating temperature: Industrial grade (-40 deg C to +85 deg CÂÂÂÂ) (output power 10W or less)
Full load temperature rise: 40 deg C
Load regulation: ± 0.5%
Voltage regulation: ± 0.5%
Dimensions: 43 x 21 x 14mm
Board Colour: Blue
Package includes
1 x LM2596HVS Adjustable Step down Module
