LM317 Adjustable Voltage Regulator Step Down Power Supply Module LED Meter

20 available / new

R439.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3463

93.50 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641128005

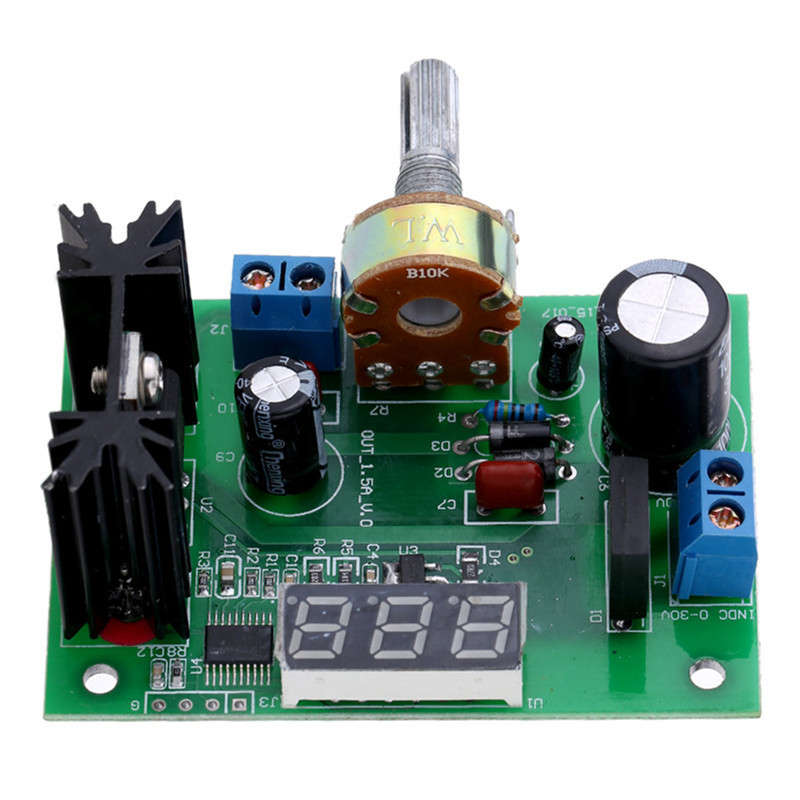

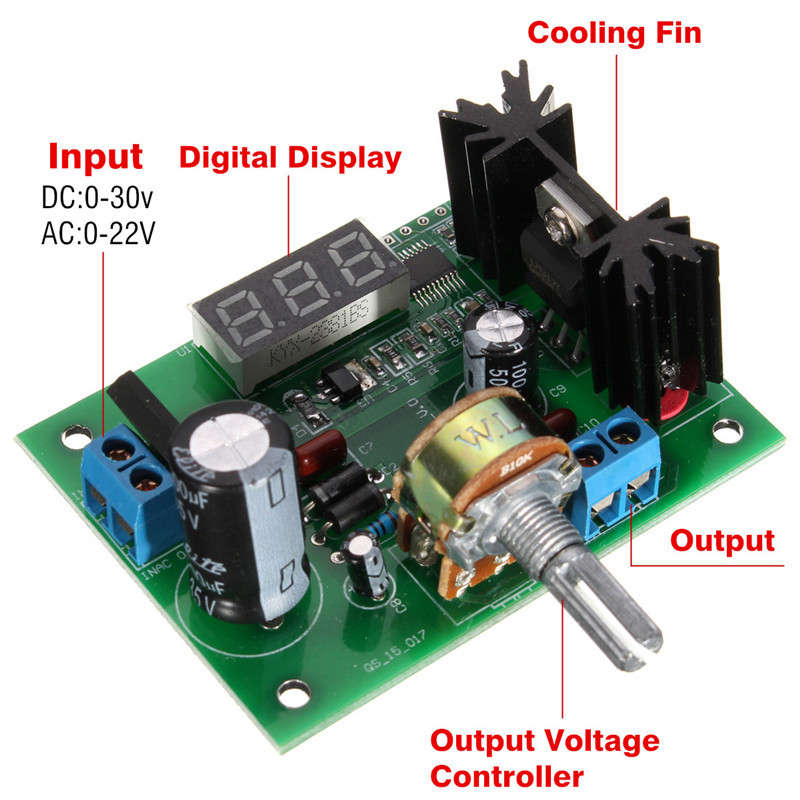

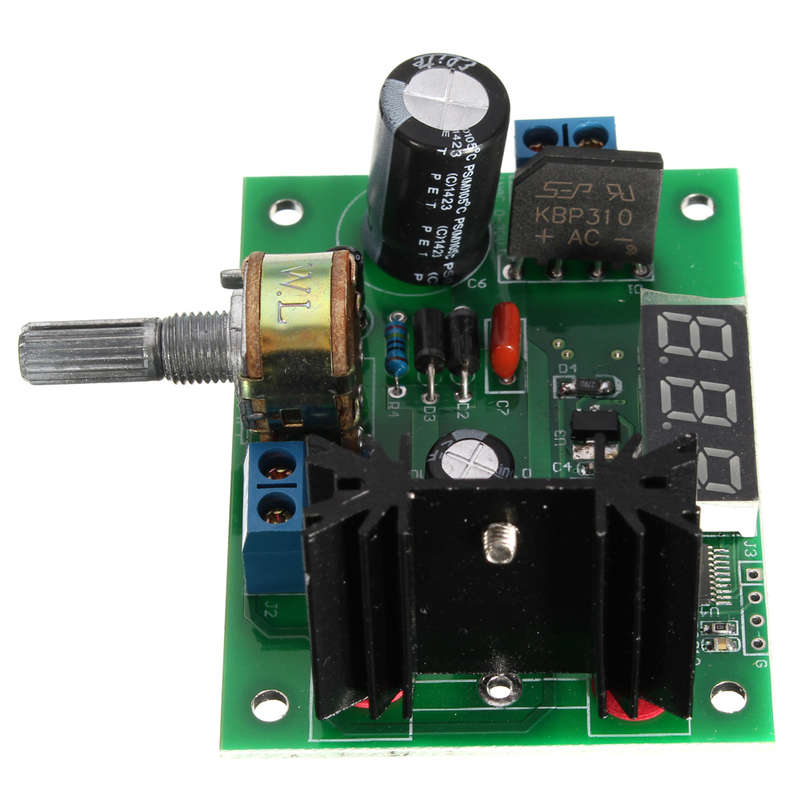

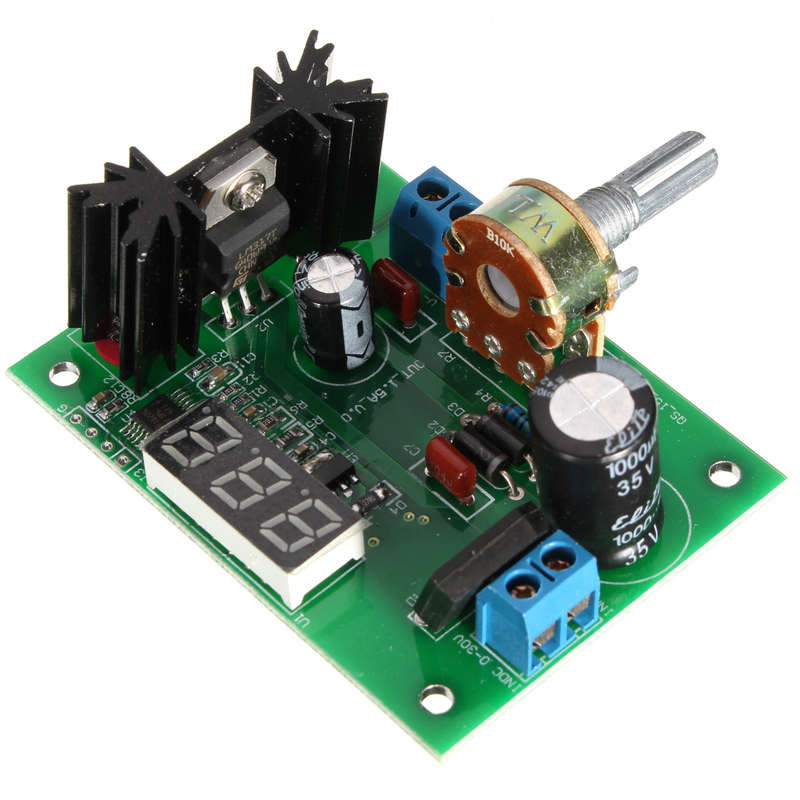

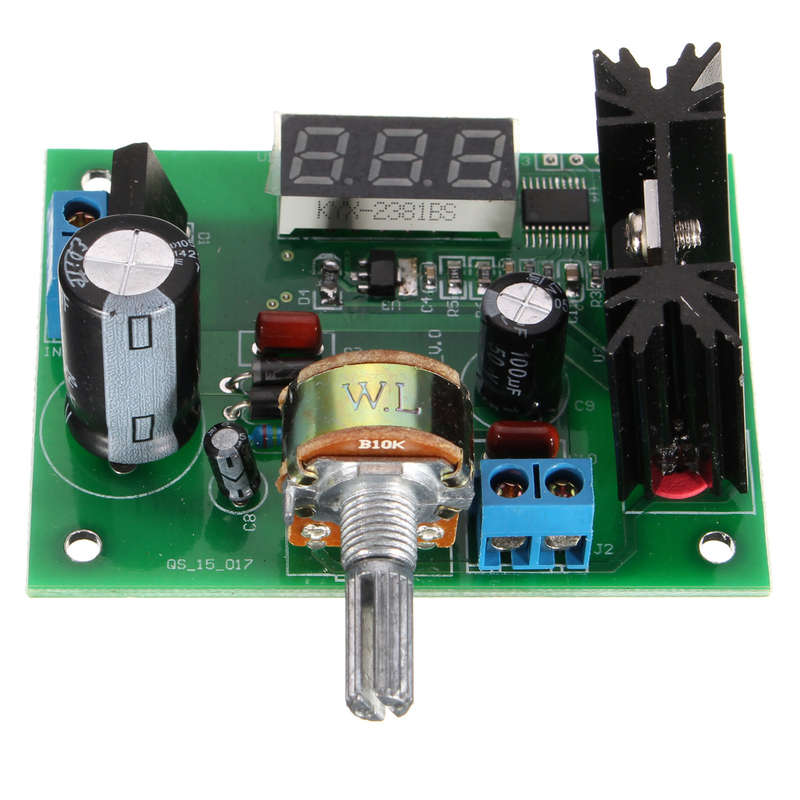

Features:

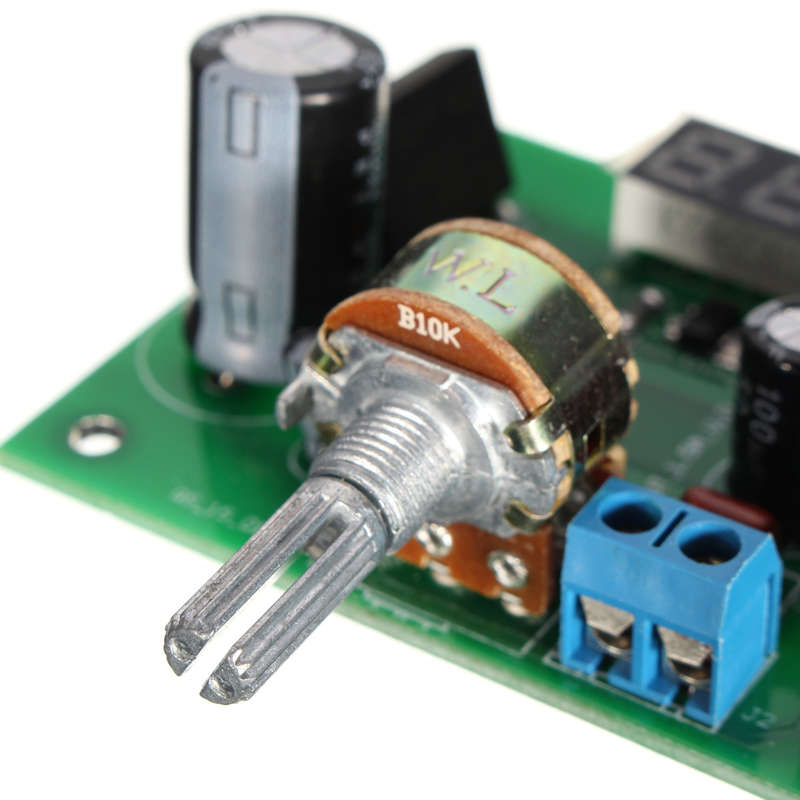

Board core components: adjustable regulator ASIC LM317, 2A or less can be loaded, AC or DC voltage input, the output voltage is 1.25V-28V DC continuously adjustable, versatile DC board. Using double adjustment potentiometer: when using LM317T for adjustable power supply, often lead to output voltage increases and burned the load due to potentiometer poor contact. We designed this regulator board using double potentiometer to ensure good contact, effectively protect the load. Specifications:
Input: DC:0-30v / AC:0-22V Output: DC 1.25-28V Output current: 2A (Max) The minimum differential between input and output: 3 volts; input must be higher than the output voltage above 3V to be regulated. Buck, not boost, when input 5V output 1.25-2V, not 6V. Circuit board size: approx. 69 x 50 x 27mm (L x W x H) Note:

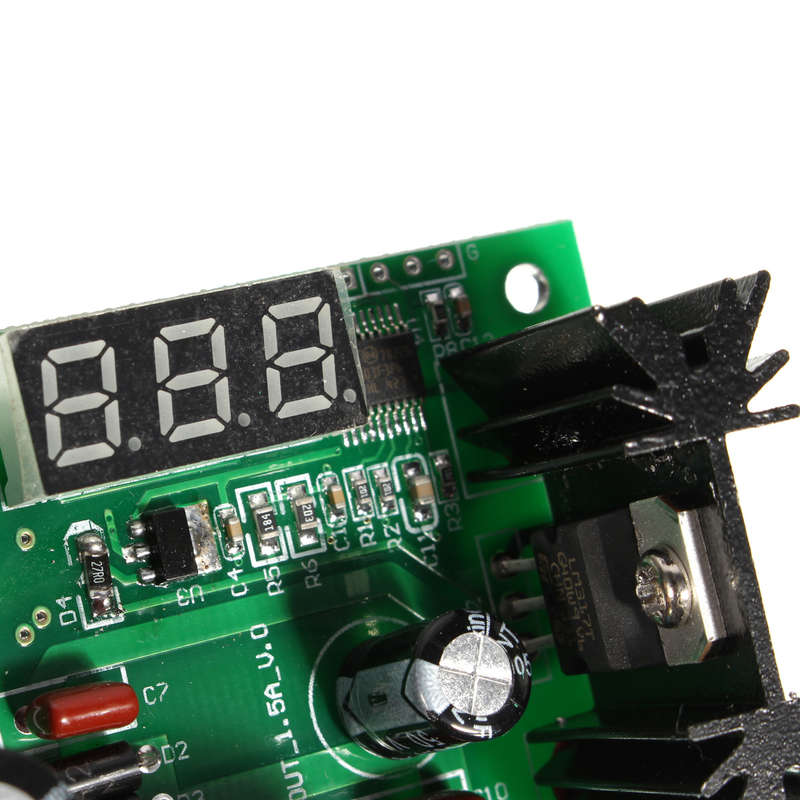

Due to the digital voltage display module operating voltage is 3V, only when the voltage is higher than 3V to display properly Package Included:
1 x LM317 Adjustable Voltage Regulator Step-down Power Supply Module with LED Meter
