LM317 LM337 Servo Rectification Filter Power Supply Board AC to DC Power Supply

New

20 available

R533.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3779

92.82 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

648371627

Description:

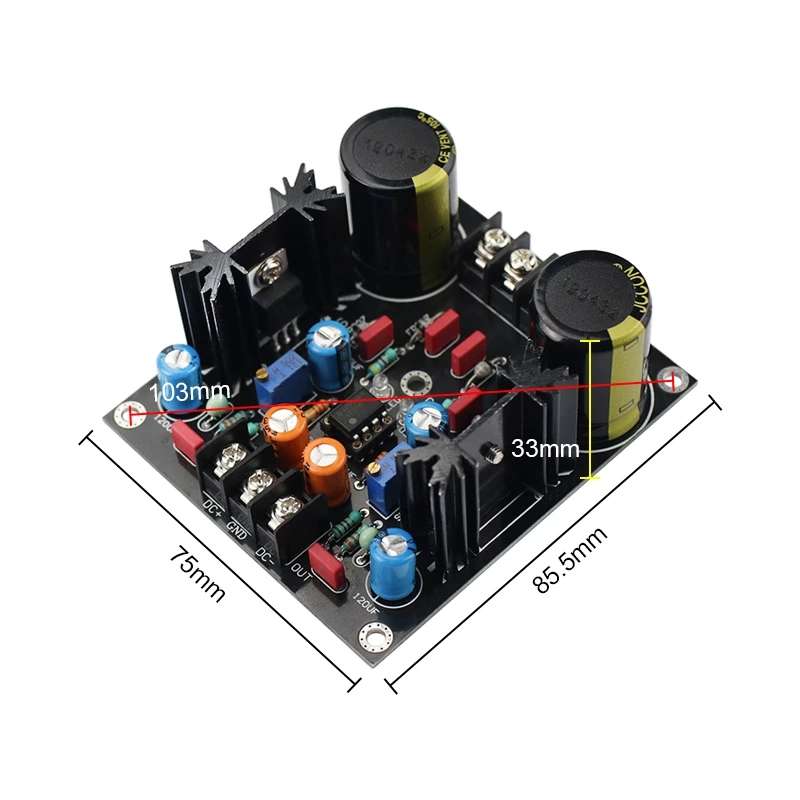

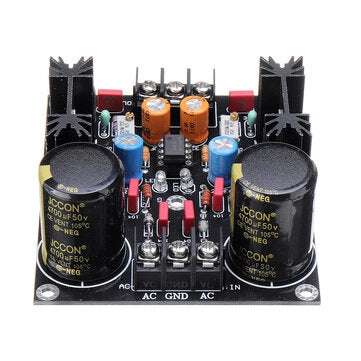

The plate is made of high quality 1.6MM double-sided fiberglass board, two specifications 22*30, 50V 4700UF filter large capacitor, The layout uses a classic grounding, the two sides of the symmetrical layout, beautiful and generous. Input AC voltage requirements: 24V or less - 0-24V or less Output DC voltage range: 1.5V- (input AC 1.4 times = maximum DC) Peak maximum output current: 1.5A
Note:
1: This PCB power board is a buck regulator board, which has no boosting effect. If the 18V AC rectification is 25V DC, then its highest adjustable voltage is 25V. 2: The factory output voltage is adjusted to plus or minus 5V by default. The buyer can adjust the voltage as needed after receiving the goods. The adjustment method is to find the 3296 fine-tuning component, turn it to the left for buck, and turn it to the right for boost. 3: aAC INais the AC input terminal, aDC OUTa is the DC output terminal. When installing, pay attention to distinguish the input and output terminals. Do not reverse the connection. Do not burn the LF353 op amp block.
Package included:

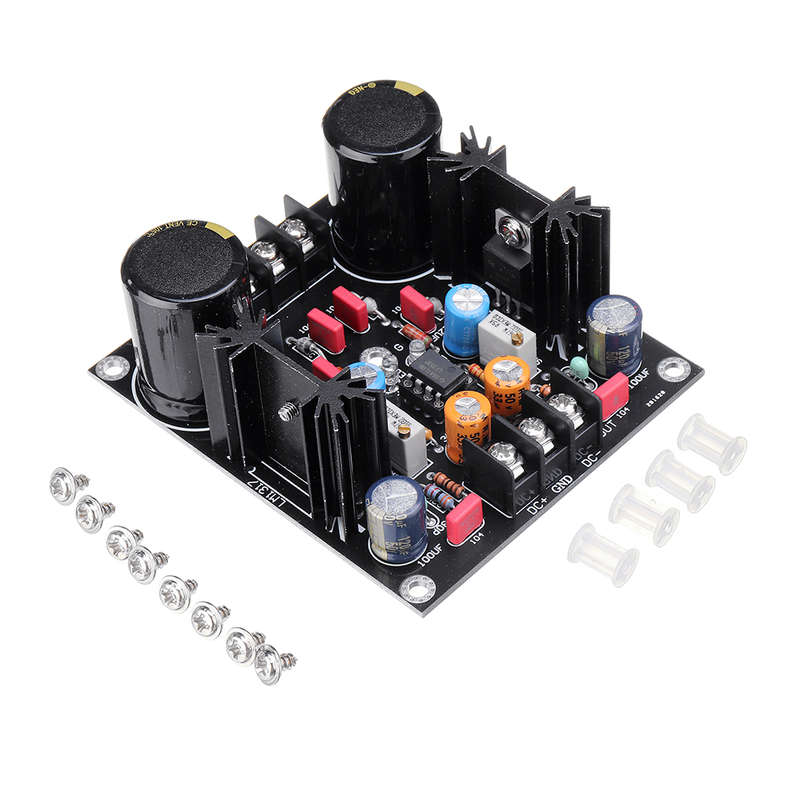

1 x Power Supply Board
