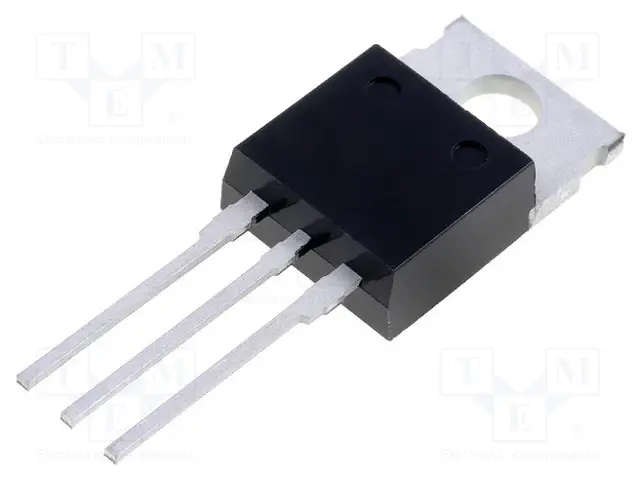

LM7809T Voltage Regulator

LM7809T Voltage Regulator

4 available / new
Only 4 left – grab it before it’s gone!
R24.28
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
EC-238
Bob Shop ID
614718178

LM7809T Voltage Regulator

Voltage regulators are generally used in circuits that are used to charge batteries, power chips that are sensitive to changes in voltage. Most modules, such as Arduinos, charging modules and step-up or step-down modules make use of voltage regulators to regulate the output voltage to ensure that a constant output voltage is given to protect the rest of your circuit.

Technical information:

Output voltage

8.65V - 9.35V
Line regulation180mV
Load regulation180mV
Ripple rejection71dB
Dropout voltage2V
Short circuit current250mA

Peak current

2.2A


Pin layout:

Extra resources:

Datasheet for LM7809T
