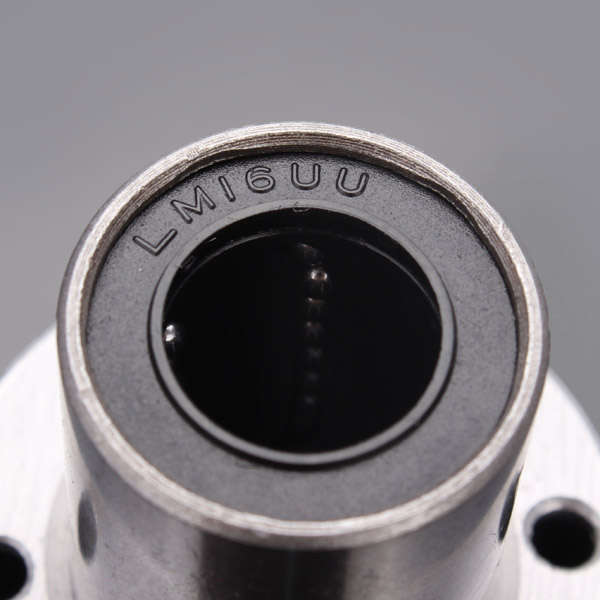

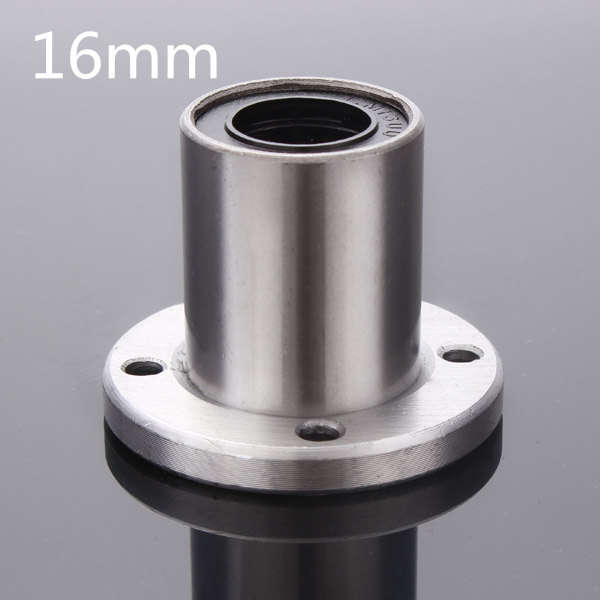

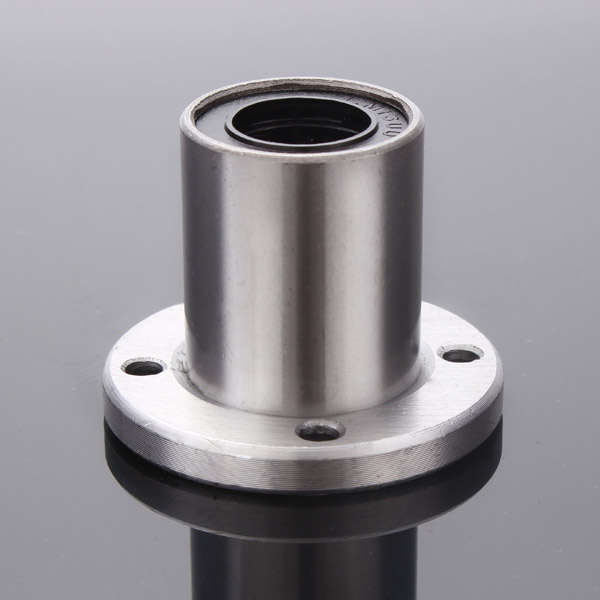

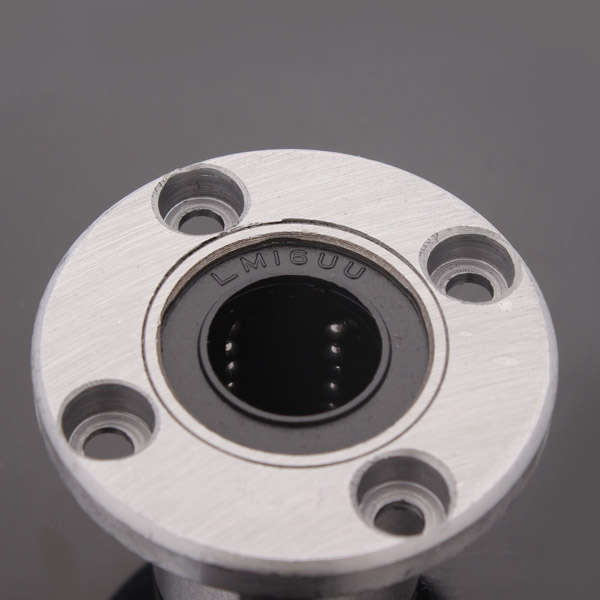

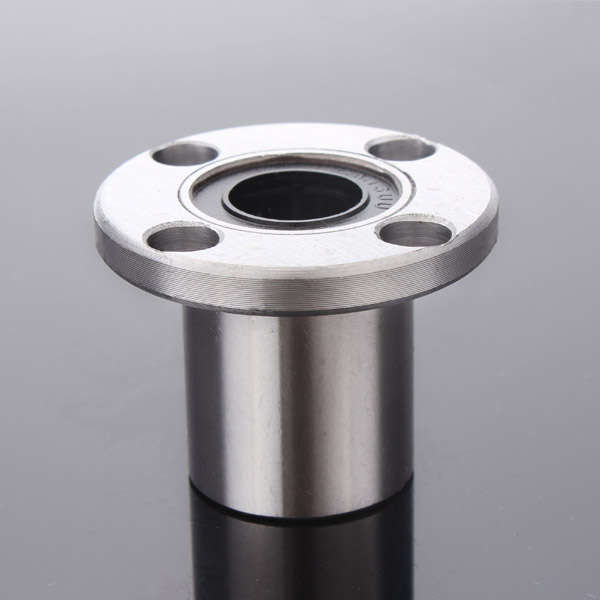

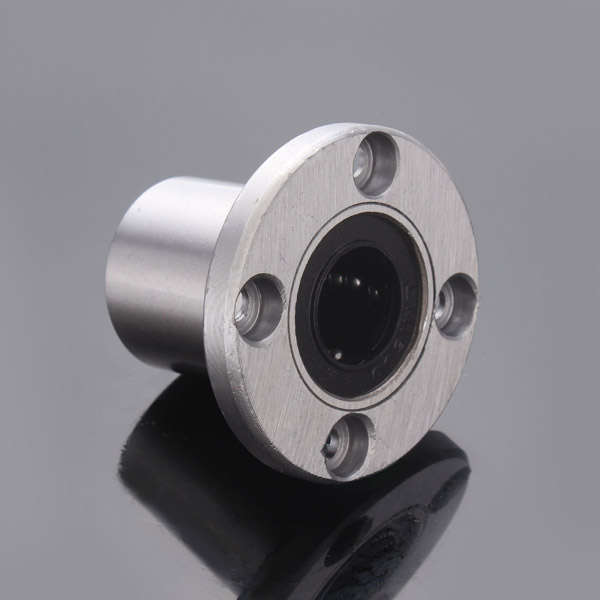

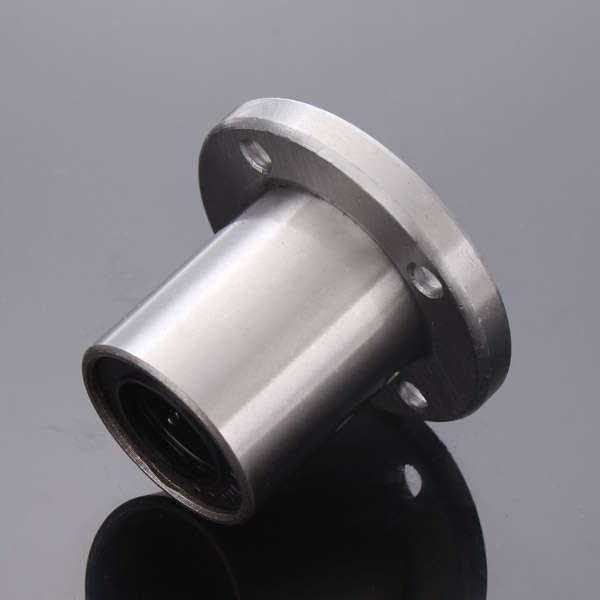

Name: LMF16UU 16mm Round Flange Linear Ball Bearing Linear Motion Bearing
SKU: CSV_UPC981281
Price: 110.93 ZAR
Availability: SoldOut

LMF16UU 16mm Round Flange Linear Ball Bearing Linear Motion Bearing

New

5 were available

Indicative market price: R199.67

R110.93

44% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

There are various locker and counter collection points across South Africa.
View locations

The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

The World OnLine10331

95.27 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

CSV_UPC981281

Bob Shop ID

278367256

Description:
LMF16UU 16mm Round Flange Linear Ball Bearing Linear Motion Bearing

Specification:
Type: Linear
Moder Number: LMF16
Inner Diameter: 16 mm
Material: ball bearing steel

Model No.	Number Of Ball Rows	Main Dimensions													Squareness	radial run-out	Basic Load Rating		Weight (g)
		Inscribed Circle Diameter		Outer Diameter		Length		Flange				Hole For Attachment
		dr (mm)	Tolerance	D (mm)	Tolerance	L (mm)	Tolerance	D1	K	H	Φ	d1	d2	h	0.012	0.012	Dynamic (C)	Static (Co)	0.122
LMF16	5	16	0-0.009	28	0-0.013	37	0-0.20	48	37	6	38	4.5	7.5	4.1			79	120

Feature:
These bearings are pre-lubricated with grease.

Linear bearing ball cage, hardened coat of both ends ring.
High strength, particularly suitable for automated devices.

Products with high accuracy. Safe and reliable.

Ball in the cage loop to run a smooth ball guide surface to ensure stability even if high-speed.

Usage:
Semiconductor manufacturing equipment, printed circuit board IC assembly equipment, robotic arm, precision measurement equipment, office automation equipment, and other large-scale linear slide devices.

Package Included:
1x Flange Linear Ball Bearing
