Product Description:
With Li battery 15000mAH
DC Output 9V/12V selectable
POE port 15V/24V selectable
USB Output 5V
Input Voltage :100V 240V AC
Battery capacity display LED
Small DC communication equipment, network peripherals such as: Modem, routers ,IP camera etc.
Constant DC output, long backup time, smart chip control, zero transition.
Application:
Multi-function small DC power supply, Provide uninterruptible power supply for small digital products such as communication, network equipment, router wifi, modem, and monitoring. Built-in four 18650 lithium batteries, high compatibility, suitable for most digital products on the market, and POE-430P products with overcharge protection, overcurrent protection and short circuit protection. When the device has no mains, the POE-430P can ensure that the device does not need to be powered off and restarted to continue to provide power (zero millisecond conversion) for normal operation, and maintain stable operation for a long time to protect your equipment!
1. OEM & ODM services acceptable.
2. Lots of cooperated agent for shipping by sea or by air.
3. 1year warranty , if it is quality problem , we will provide the parts for free .
4.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
5.Exceed the warranty period, improper operation and man-made damage, we will still give help and support, We will provide spare parts at a cost price.
6.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine.
| Model | Q-UP600 |
| Input voltage | 100~240Vac/50-60Hz |
| Maximum Output power | 24W |
| Transfer time | 0ms |
| Output | POE interface | DC interface |
| Output voltage(Optional) | 15,24Vdc | 9,12Vdc |
| Output polarity | 4,5pins 7,8pins | |
| Output power & current (in common) | 24W / 1.0A | 12W / 1.0A |
| USB Output | 5V/1.0A |
| Battery Type | Lithium battery |
| Capacity of battery | 15000 mah |
| Storage Temperature | -15~45 |
| Operating Temperature | 0~40 |
| Unit dimension(mm) | 170x120x45mm |
| Net weight(kg) | 600 |

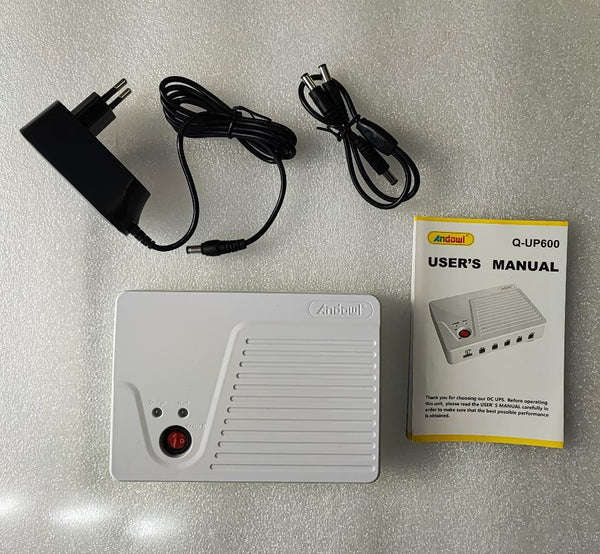

Package Contents:
1 x Battery Backup Station
1 x Charger Adapter
1 x DC Adapter
1 x English User Manual
