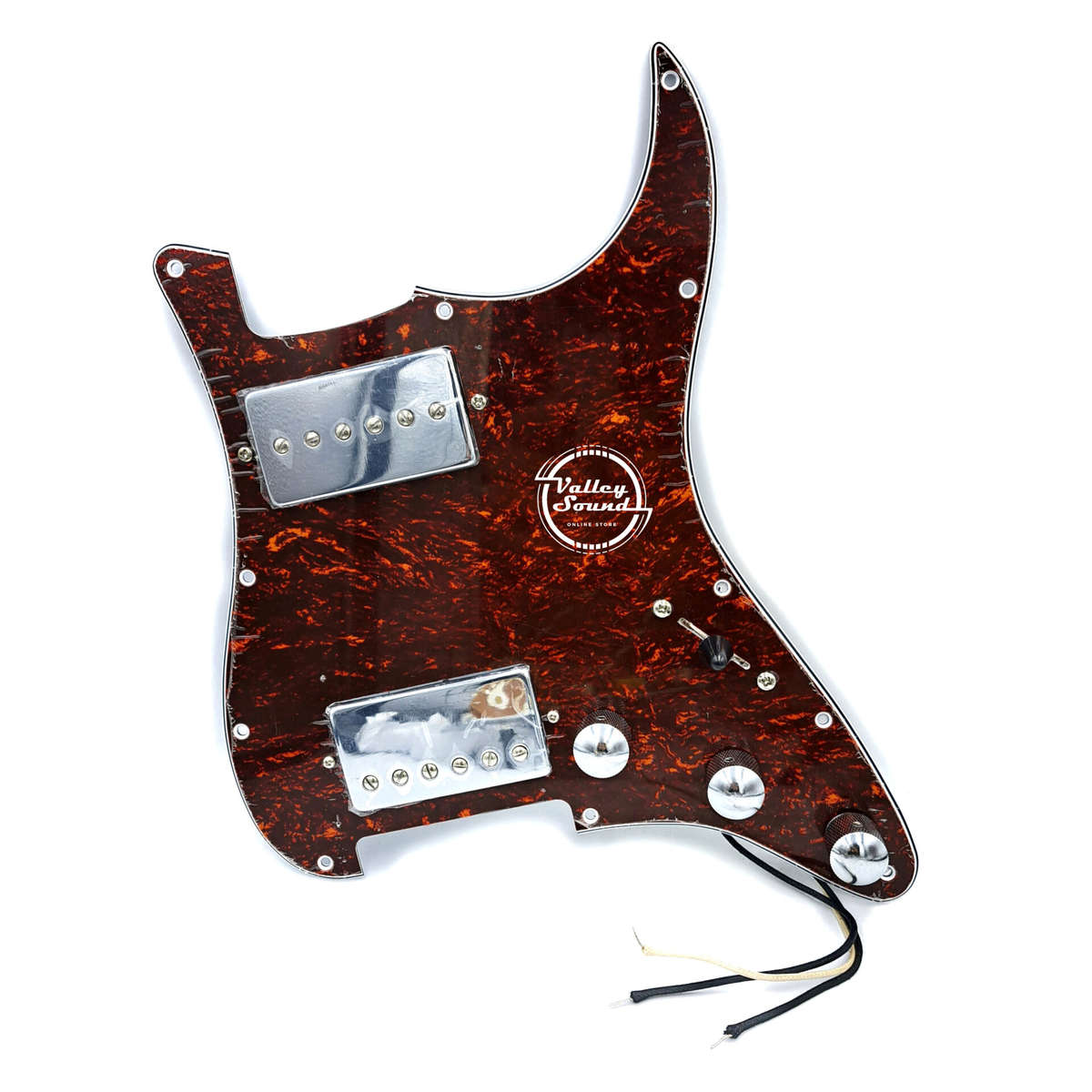

A high quality pickguard with a Karman Vintage Style 3 way switch, Full Sized Brass Shaft Potentiometers. Complete with pickups and electronics installed and connected, all you need to do is disconnect your old pickguard from output jack and connect this pickguard (solderless or solder-in options available) and screw the pickguard to the body of the guitar (screws can be ordered separately). Has protective plastic on the pickguard and pickups
Please note - You would need to add an extra 24 - 48 hours to the lead time when ordering our prewired pickguards as we make them specially for each order.
Pickups: Karman Alnco 5 Humbucker in the bridge, Karman Humbucker Sized P90 in the neck. This is not a true P90, as it is a different size, the tone is somewhere between a Single coil Strat and a P90 due to the size of the casing which will fit most guitars routing (please make sure your guitar has routing that can accommodate 2 humbuckers)

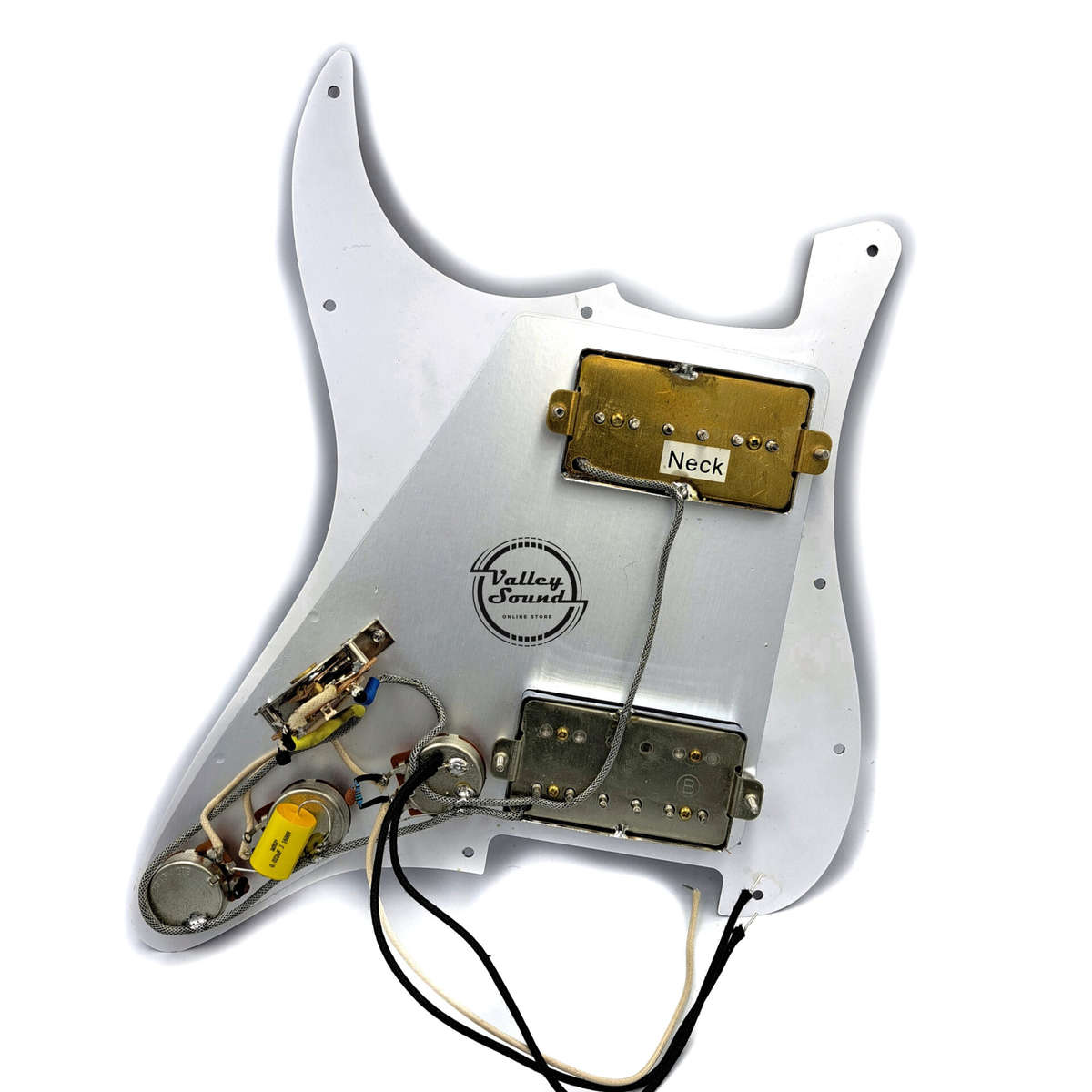

Wiring: Vintage braided and cloth wire
Potentiometers: Full sized brass shaft potentiometer for Audio Taper (A500k) Master Volume with Treble Bleed, 2 x Audio Taper (A500k) for tone with 0.022uF High quality Capacitor, neck pickup connected to tone 1 and bridge on on tone 2.
Pickguard colour: Tortoiseshell (other colours available as long as we have them in stock - email us with your custom request) we have White, Black, Red Tort, Brown Tort, White Pearl, Vintage White Pearl, etc.
Knobs: Chrome dome top metal knobs, we can also use normal plastic strat knobs (let us know via email)
Pickup covers: Chrome
Switch tip colour: Black (other colours are available for custom orders - email us with your custom request)
Solderless or Solder-in: This prewired pickguard comes standard with 2 wires that must be soldered to your output jack and one wire that must be soldered to your bridge claw for grounding. We can make it solderless too, where you use your existing wires and connect them to a terminal connector on top of the volume pot - let us know if you want to swop the extra output wires for a solderless connector and use your existing wires.
PLEASE NOTE: This pickguard is the exact layout and spec as USA/MEX Strat, it will fit Squier too, though sometimes the screw holes won't line up 100 percent and you must make new ones. It may fit other guitars with some retrofitting, but we can not guarantee this since there are too many variations of the Strat. Also take note that the switch is larger than the cheaper import switch which may require some extra routing to your body where the switch goes depending on your routing depth (35mm is required) some guitars like Bullet and Affinity Squier have very shallow routing. By purchasing this prewired pickguard we will assume you have removed your current pickguard and checked your routing cavity and we will also assume you are willing to make some modifications if your guitar does not have the same mounting layout as standard USA/MEX Fender.
