Inverter
Luxpower 5kW Single Phase Off Grid Inverter
Description
Output
Rated Power: 5000W
Parallel Supported: Yes
Normal Output Voltage: 230VAC-240VAC, Split Phase 220VAC/110VAC
Normal Output Frequency: 50Hz / 60Hz
Surge Power: 10000VA
Switch Time: 10ms
Wave Form: Pure Sine Wave
Battery
Battery Type Supported: Lithium / Lead-Acid
Normal Voltage: 51.2VDC / 48VDC
Maximum Charging Voltage: 59VDC
Solar
Maximum PV Power: 3200W / 3200W
Number of MPP Trackers: 2
Maximum PV Open Circuit Voltage: 480VDC
MPPT Voltage Range: 100VDC 385VDC
Maximum Solar Charge Current: 100A
Maximum Solar Input Current: 13A / 13A
Grid
Normal Voltage: 230VAC
AC Voltage Range: 110VAC-280VAC
Maximum Charge Current: 60A
Frequency Range: 50Hz / 60Hz (Auto Sensing)
Environment Limit
Ingress Protection: IP20
Relative Humidity: 5% to 95% (Non Condensing)
Operating Temperature Range: 0C to +50C
Storage Temperature: -15C to +60C
Communication: CAN / RS485/ WIFI / GPRS
Volta 5.12kWh Stage 1Lithium Ion Battery
General Data
Battery Type: Lithium-Ion
Product Model: VOLTA STAGE 1
Nominal Energy: 5.12KWH
Nominal Voltage: 51.2VDC
Nominal Capacity: 100AH
Cell Type: LFP
1C/1C Continual Charge & Discharge
Standard Charge Voltage: 56VDC
Maximum Discharge Current: 100A
Discharge Cut-Off Voltage: 44.8VDC
Maximum Parallel Units: 8
Design Life: 6000 Cycles @ 80% DOD @ 25C
Installation Type: Wall Mount & Floor Stand
Environment Limit
Ingress Protection: IP20
Charge Temperature Range: 0C to +65C
Discharge Temperature Range: -20C to +65C
Communication: RS485, RS232, CAN
Safety Rating: MSDS / UN38.3
Weight 58 kg
Dimensions 48H 15W 60L cm

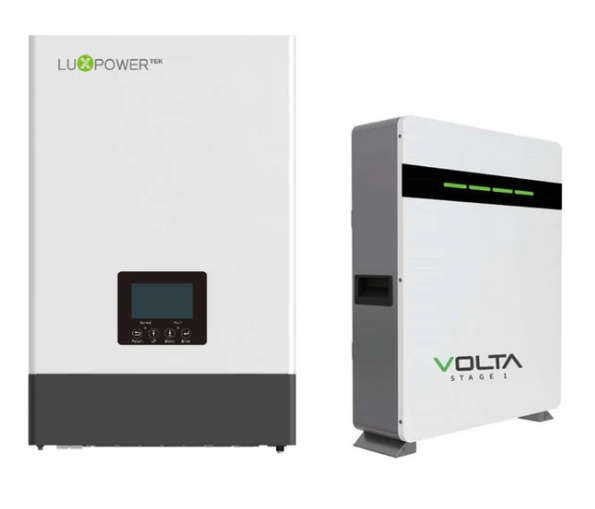

Whatis included in the Combo
1 x Luxpower 5kW Single Phase Off Grid Inverter
1 x Volta 5.12kWh Stage 1Lithium Ion Battery
5 Years Warranty
